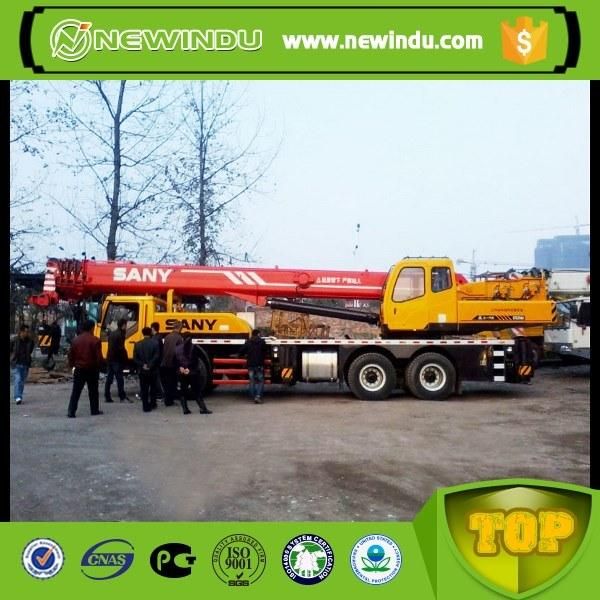

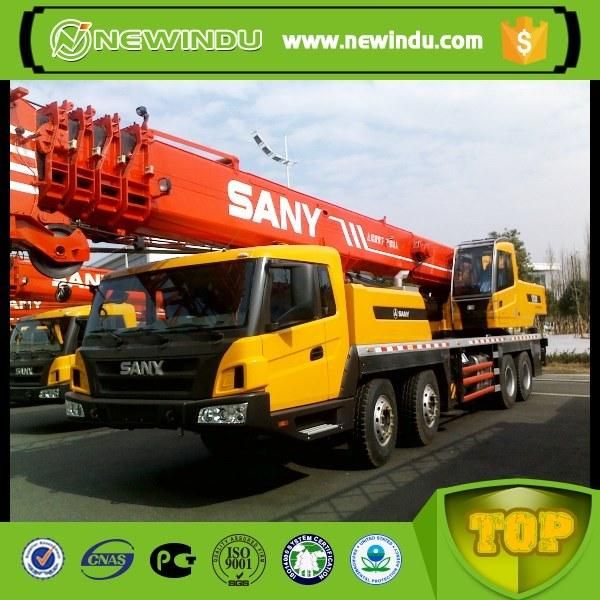

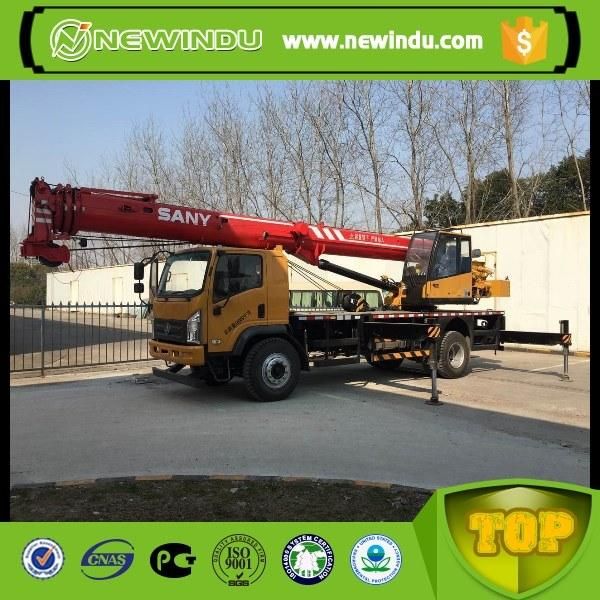

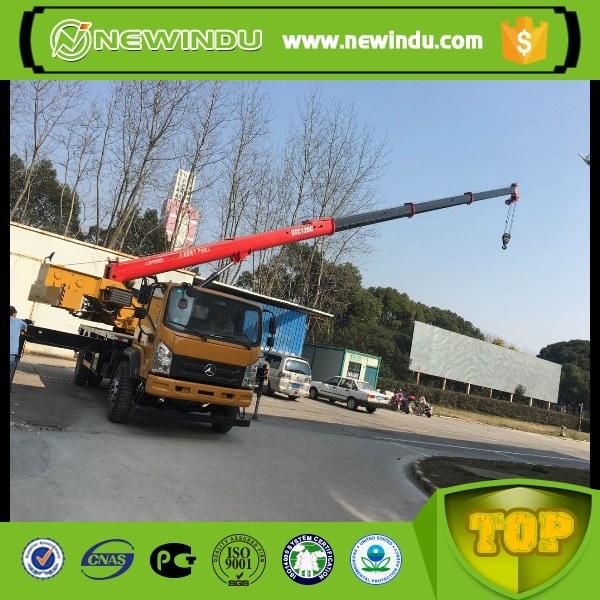

Stc120c Manual Mechanical Truck Crane

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • Certification：ISO9001
  • Condition：New
  • Maximum Lifting Height：30-40m
  • Maximum Lifting Weight：11-13t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：STC120C
  • Type：Straight Arm
  • Operating Weight：16000kg
  • Rated Power：162 Kw ,2500 Rpm
  • Rated Torque：800 N.M , 1200-1700 Rpm
  • Emission Standard：Euro IV
  • Transport Package：Nude Packing
  • Specification：11189x2500x3560mm
  • Trademark：S ANY
  • Origin：China
  • HS Code：87051091
  • Production Capacity：20units, Month

Description

Parameter of STC120C 12ton Truck CraneModelSTC120CLifting load(T)12TBoom33.5Lifting height (M)10mSwing radius360°Outrigger span9.3M

Fully

extending

Min working

radius(75°)

5.176m

Max working

radius(45°)

33.5MDead weight in working25 tonsDimension11.18m * 2.50m * 3.56mEngine model4D*23-130E3Power typeDieselDisplacement/power(ml/KW)385795.5Emission standard

GB17691-2005,GB3847-2005

Dimension1118025003560Steel spring (pcs)6/12+4Speed of chassis (km/h)94.5Types8.25-16Tread (Front/Back) mm17601620Wheel base (mm)3815Axles5Cab (persons)3
