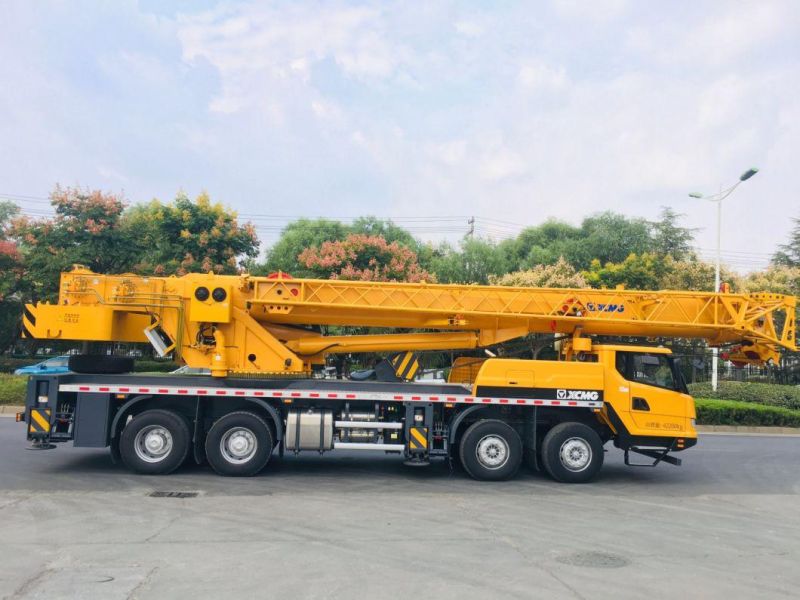

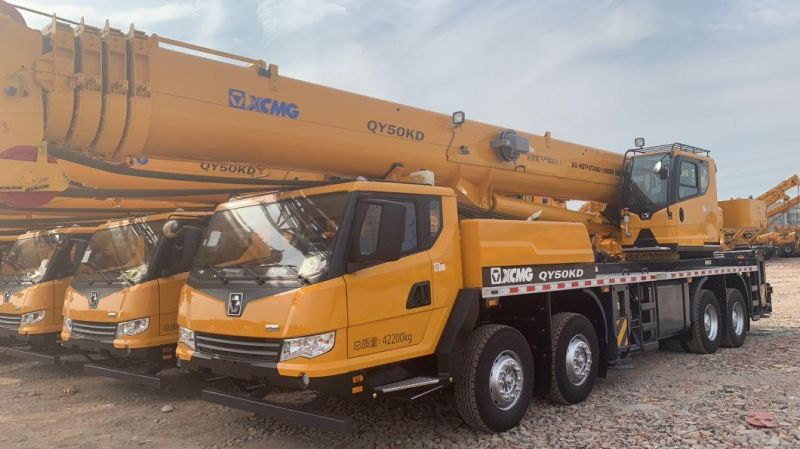

• Model NO.：QY50KD
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Max. Travel Speed：80km,H
• Min. Turning Diameter：24m
• Min. Ground Clearance：327mm
• Base Boom：11.56m
• Transport Package：Nude
• Specification：9450*24003180mm
• Trademark：NEWINDU
• Origin：China
• HS Code：87051091
• Production Capacity：500

DimensionUnitQY50KDOverall lengthmm13890Overall widthmm2800Overall heightmm3440Weight  Total weight in travelkg42000Load of axle 1, 2kg18000Load of axle 3, 4kg26000Power  Engine model WD615.338Engine rated powerkW/(r/min)247/2200Engine rated torqueN.m/(r/min)1350/1400Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm327Approach angle°18Departure angle°11Max. grade ability%35Fuel consumption for 100kmL40Main performance  Max. rated total lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailm3.71Max. lifting torquekN.m1800Base boomm11.56Fully extended boomm42.58Fully extended boom+ jibm55.8Longitudinal outrigger spanm5.93Lateral outrigger spanm6.9Working speed  Boom luffing times88Boom full extension times180Max. swing speedr/min2Max. speed of main winch (single rope)m/min110Max. speed of aux. winch (single rope)m/min110
