Hydraulic 6.3 Ton Price of Mobile Truck Mounted Crane for Sale

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.

Warranty：12 Months
Certification：CE, ISO9001
Condition：New
Maximum Lifting Height：10-15m
Maximum Lifting Weight：5-7t
Shaft Number：Na

Base Info

Model NO.：SQ6.3SA2
Crane Jib：Two-Arm
Type：Straight Arm
Application：Construction
Color：Optional
Truck Chassis：Optional
Boom：2 Sections
Hydraulic Parts：Italy
After-Sales Service Provided：Engineers Available to Service
Feature：Truck Crane
Quality：Reliable
Section Design：Strong Ability of Bending
Transport Package：Plastic Film or Wood Package
Specification：4550*820*500,2858*900*2250mm
Trademark：Bob-lift
Origin：Jiangsu China
HS Code：84239100
Production Capacity：85 Sets

Description

SQ6.3SA2 price of mobile crane

Max Lifting CapacityTon6.3Max Lifting MomentTon.m16Recommend PowerKW20Hydraulic System FlowL/min40Hydraulic System PressureMPa20Oil Tank CapacityL100Installation Spacemm900Self Weightkg2250Rotation Angle°360

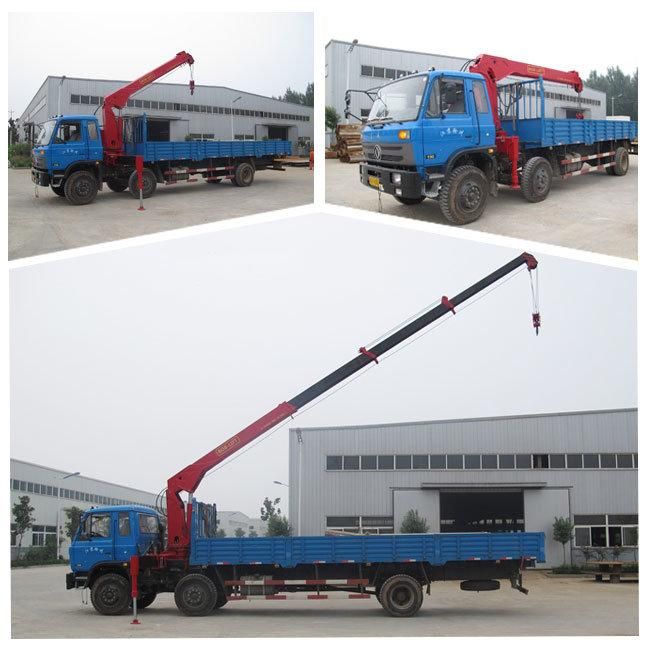

2.Product photos

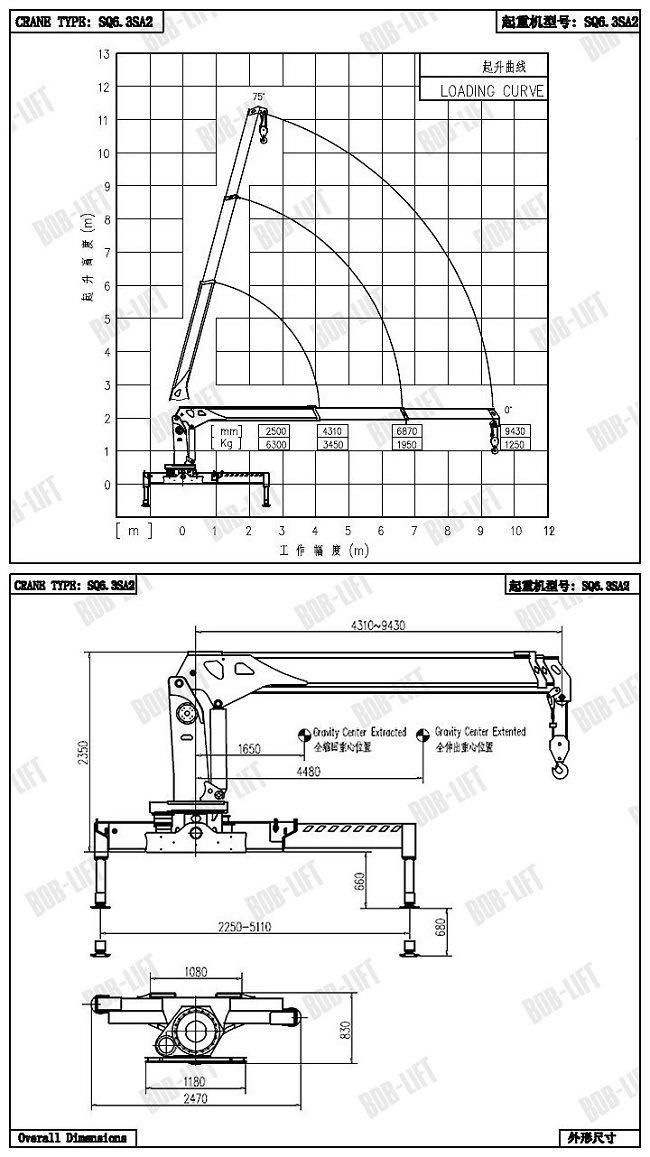

3.Technical drawing

4.Certification

5.Packaging and shipping

6.Factory

7.Contacts
