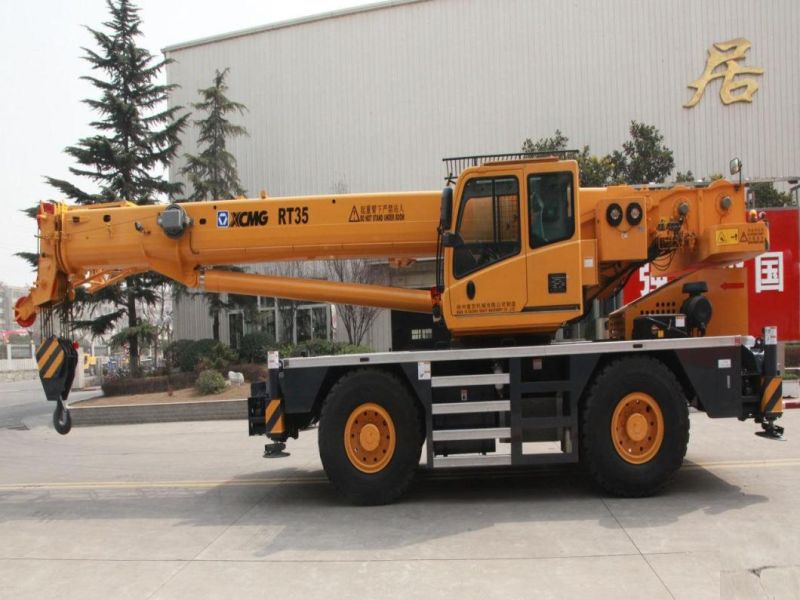

Factory Price 35 Ton Rt35 Rough Terrain Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：RT35
- Type：Folding
- Main Boom Length (Fully Retracted Fully：9800~31000 mm
- Max.Hoist Rope Speed (Main Winch)：150 M,Min
- Rated Work Pressure：27 MPa
- Complete Vehicle Mass：32000 Kg
- Front Axle Load：15030 Kg
- Transport Package：Nude
- Specification：11840x2980x3600 mm
- Trademark：Acntruck
- Origin：China, Jiangsu
- HS Code：8705109100
- Production Capacity：200 Units, Month
Description
Work performance
Max. rated lift capacity × work radius
kg.m
35000×3.0
Max. load moment of basic boom
kN.m
1344
Max. load moment of fully extended main boom
kN.m
870
Max. lift height of fully extended main boom
m
31
Max. lift height of jib
m
46
Dimensions
Overall dimensions (L×W×H)
mm
11935*2980*3600
Outrigger spread (L×W)
mm
6810*6800
Main boom length (Fully retracted fully extended)
mm
9800~31000
Jib length (Jib section 1,jib sections 1+2)
mm
9088~15028
Boom angle
°
-3~78
Swing range
°
360
Work speeds
Max.hoist rope speed (Main winch)
m/min
150
Min. boom extend time
s
70
Min. boom retract time
s
75
Min. boom derric k up time
s
46
Min. boom derric k down time
s
47
Swing speed
r/min
0~25
Hydraulic system
Rated work pressure
Mpa
27
Rated work oil flow
L/min
400
Hydraulic oil tank capacity
L
600
Mass
Complete vehicle mass
kg
32000
Front axle load
kg
15030
Rear axle load
kg
16970
Travel
Max. travel speed (Forwarsd / backwards)
km/h
38/15
Wheelbase
mm
3820
Treads (Front / rear)
mm
2444
