Crawler Crane with Ce and ISO Certificate Quy150
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Max. Lifting Height：82m
- Rated Loading Capacity：150t
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
- Transport Package：Nude Packing
Base Info
- Model NO.：QUY150
- Specification：11500*3300*3300mm
- Trademark：Top brand
- Origin：Jiangsu, China
- HS Code：842649100
- Production Capacity：10000 Units,Month
Description
QUY150 hydraulic crawler crane is developed independently in absorption of foreign advanced technology and with the trend of world crawler crane development. The crane design aims at the world advanced level, emphasizes on both reliability and exterior, and the performance is in the leading position in China domestic crane industry. Power, drive and hydraulic components as well as steel plate and wire ropes are selected from domestic and international famous enterprises. This crane has additional function of automatic assembly and disassembly, light-weight for transport, easy for work-site transfer, therefore, it is ideal lifting machine suitable for China domestic conditions and international market
Specification| Item | Unit | Parameter | |
Max. lifting capacity | Boom | t | 150 |
| Jib | t | 15 | |
| Max. load moment | kN.m | 8240 | |
| Boom length | m | 19~82 | |
| Boom elevating angle | ° | 30~80 | |
| Fixed jib length | m | 12~30 | |
| Fixed jib offset | ° | 10,30 | |
| Max. single line hoist speed (at 5th layer with no load) | m/min | 120 | |
| Max. single line hoist speed (at 5th layer with no load) | m/min | 30 | |
| Max. swing speed | r/min | 1.5 | |
| Max. travel speed | km/h | 1.0 | |
| Max. grade-ability | 30% | ||
| Mean ground pressure | MPa | 0.093 | |
| Engine output | kW | 220(volvo)/242(cummins) | |
| Total mass (main hook block,19m boom) | t | 150 | |
| Max. base machine weight for transport | t | 53.0 | |
| Max. base machine dimension for transport (L×W×H) | m | 11.5×3.30×3.30 | |

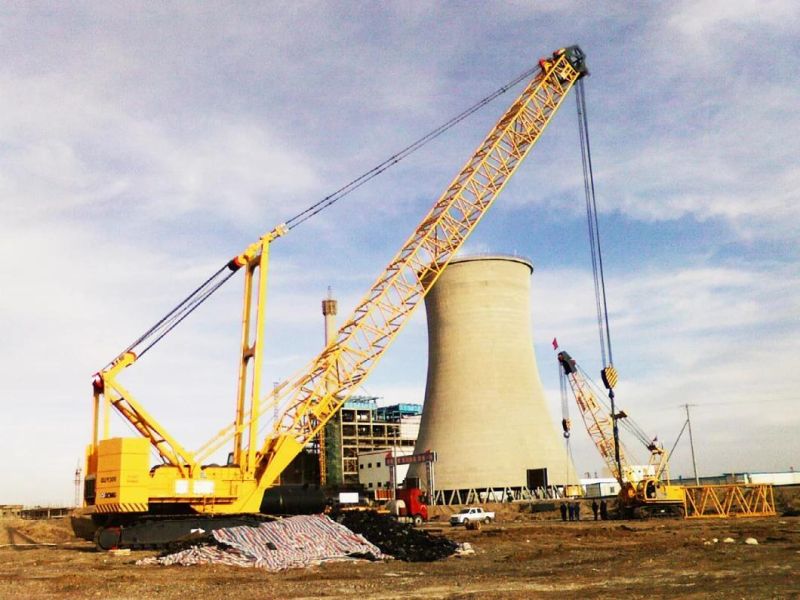

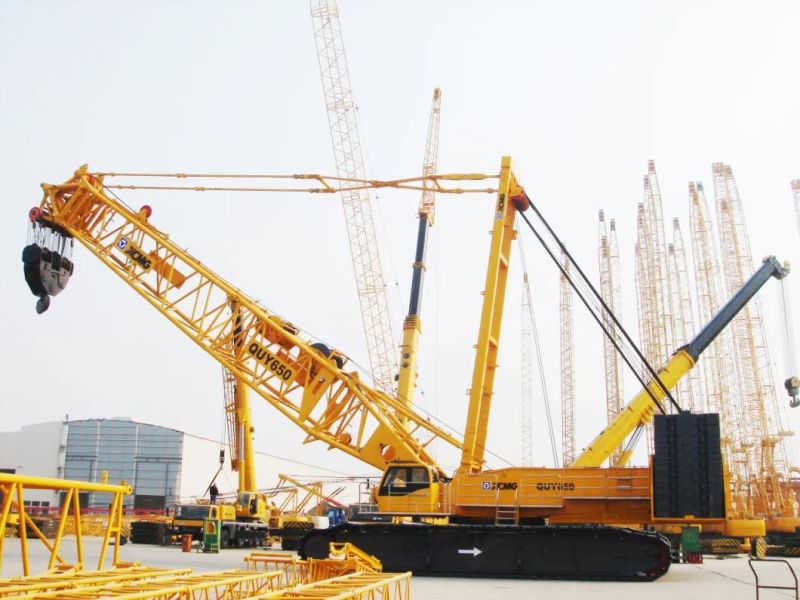

Product Show
