• Model NO.：RT35
• Type：Straight Arm
• Wheel Base：3700 mm
• Max. Travel Speed：38 Km,H
• Min. Turning Radius：5.7 M
• Min. Ground Clearance：400 mm
• Engine Model：Shangchai Diesel Engine
• Rated Engine Power：142 Kw
• Engine Emission Standard：off-Road EU Stage Iiia
• Driving Type：4X;2, 4X4
• Base Boom：10.1 M
• Fully-Extended Boom + Jib：47 M
• Transport Package：Nude Package
• Specification：11935X2980X3600 mm
• Trademark：Zoomlion
• Origin：China
• HS Code：87059091
• Production Capacity：10000

CategoryItemParameterAllowance Max. rated lifting capacityt35±5%Main performanceMin. rated working radiusm3±1% Slewing radius at turntable tail (at counterweight)mm3885±1% Max. load momentBase boomkN·m1445.5±5% Fully-extended boomkN·m835±5% Outrigger spanLongitudinalm6.9±1% Lateral(fully/half extended)m6.9/5.8±1% Lifting heightBase boomm9.7±1% Fully-extended boomm31.7±1% Fully-extended boom + Jibm45.1±1% Boom lengthBase boomm10.1±1% Fully-extended boomm32±1% Fully-extended boom + Jibm47±1% Jib offset angle°0, 15, 30±1°Working speedTime for boom raisings65≤Time for boom extending fullys85≤Max. slewing speedr/min2.5≥Outrigger extending/  retracting timeOutrigger beamSimultaneously extendings25≤Simultaneously retractings15≤Outrigger jackSimultaneously extendings30≤Simultaneously retractings15≤Hoisting speedMain winchm/min120≥(at 4th layer, no load)Auxiliary winchm/min120≥
Contact Me:Mia Zhu

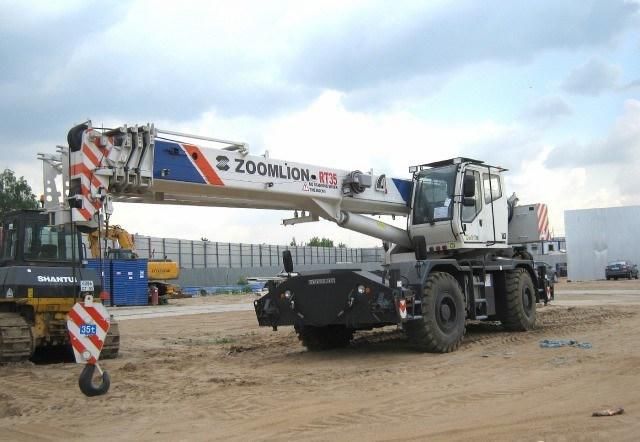

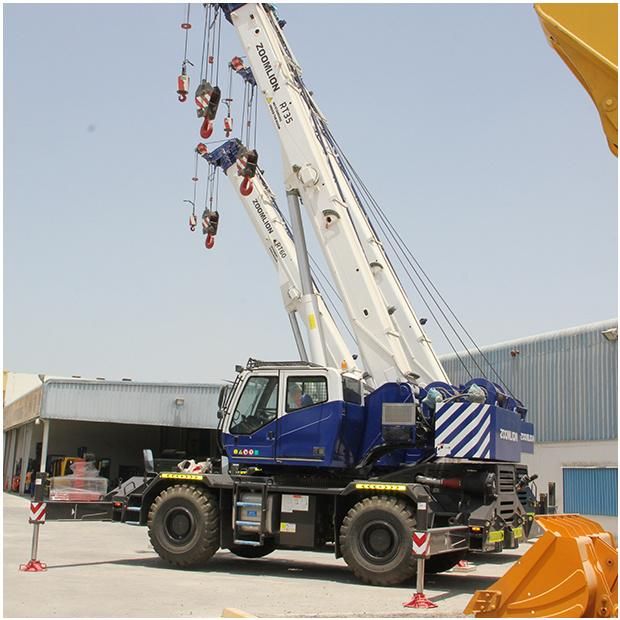

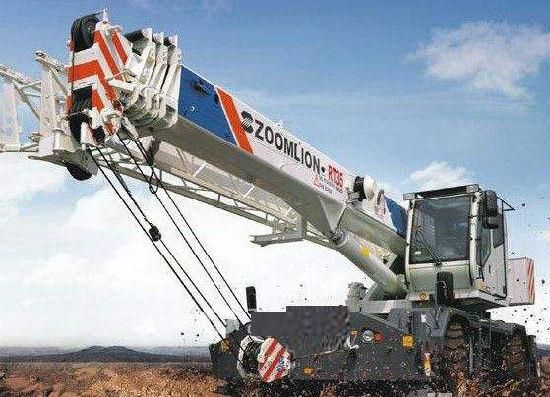

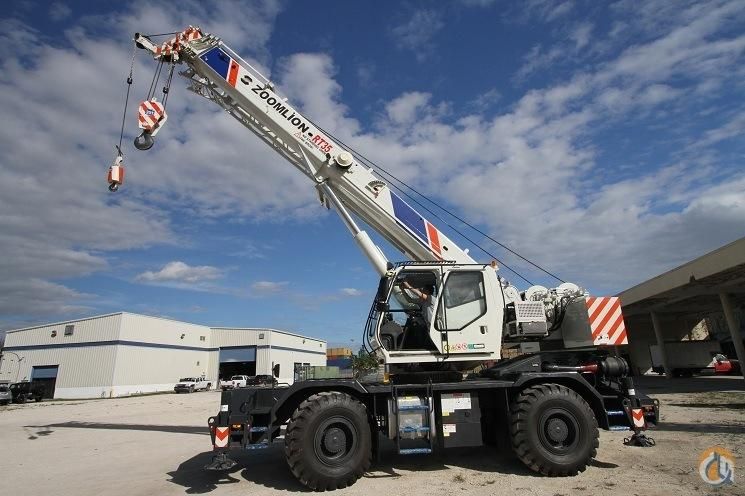

Pictures:
