Qd Model Heavy Duty Double Girder Bridge Crane

Henan Kuangshan Crane Co., Ltd.
  • After-sales Service：Engineers Available to Service Machinery Overseas
  • Warranty：12 Months
  • Certification：GS, CE, ISO9001
  • Condition：New
  • Operation Form：Cabin
  • Maximum Lifting Height：25-30m

Base Info

  • Model NO.：QD
  • Maximum Lifting Weight：>200t
  • Main Girder Form：Double Girder
  • Type：Ordinary
  • Application：Workshop Usage, Indoor
  • Crane Type：Double Girder or Beam
  • Span：10.5~31.5m
  • Working Class：A5, A6
  • Sling Type：Wire Rope
  • Power Supply：220-440V50-60Hz3phac
  • Control Mode：Cabin
  • Speed Control：Resistor+Contactor, Vvvf
  • Motor：Heavy Duty Slipring Motor
  • GB/T 24001-2004 Idt ISO14001: 2004：Pass
  • GB/T 19001-2000 Idt ISO 9001: 2000：Pass
  • GB/T 28001-2001, OHSAS18001: 1999：Pass
  • Sandblast：Yes
  • Painting Color：According to Your Demand
  • Transport Package：Packing by Woven Plastic Cloth and Plywood Crate.
  • Specification：5~450,80Tons
  • Trademark：KUANGYUAN
  • Origin：Xinxiang, Henan Province
  • HS Code：84261120
  • Production Capacity：19, 000 Sets,Year

Description

Overview

Product Description

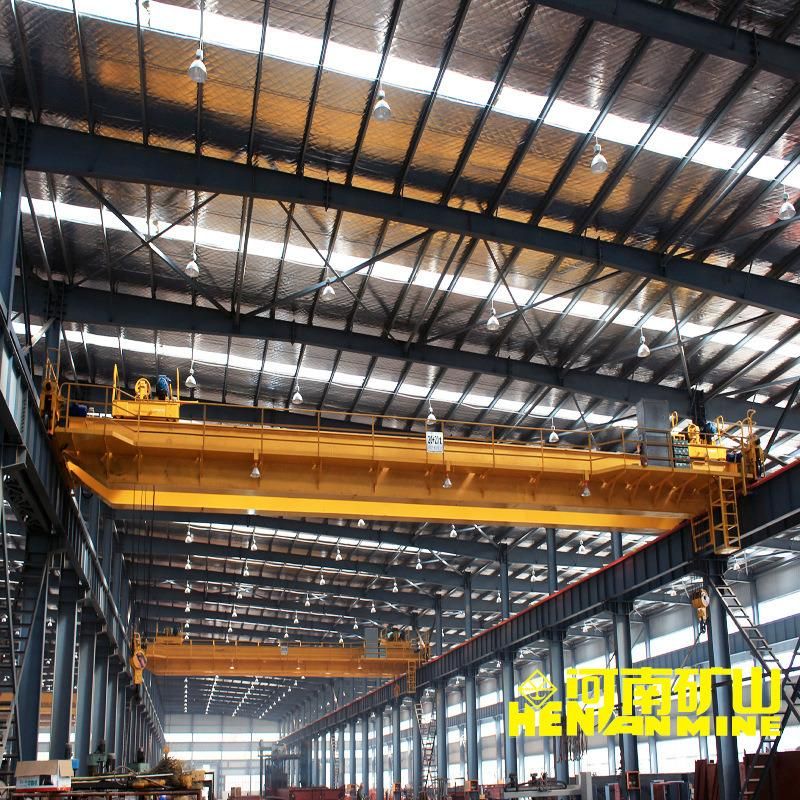

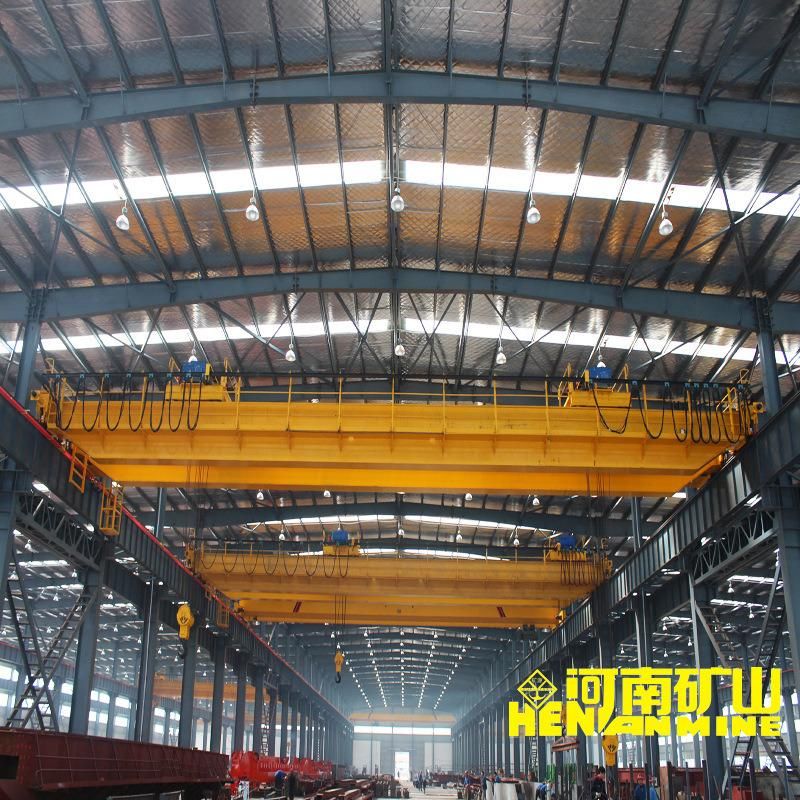

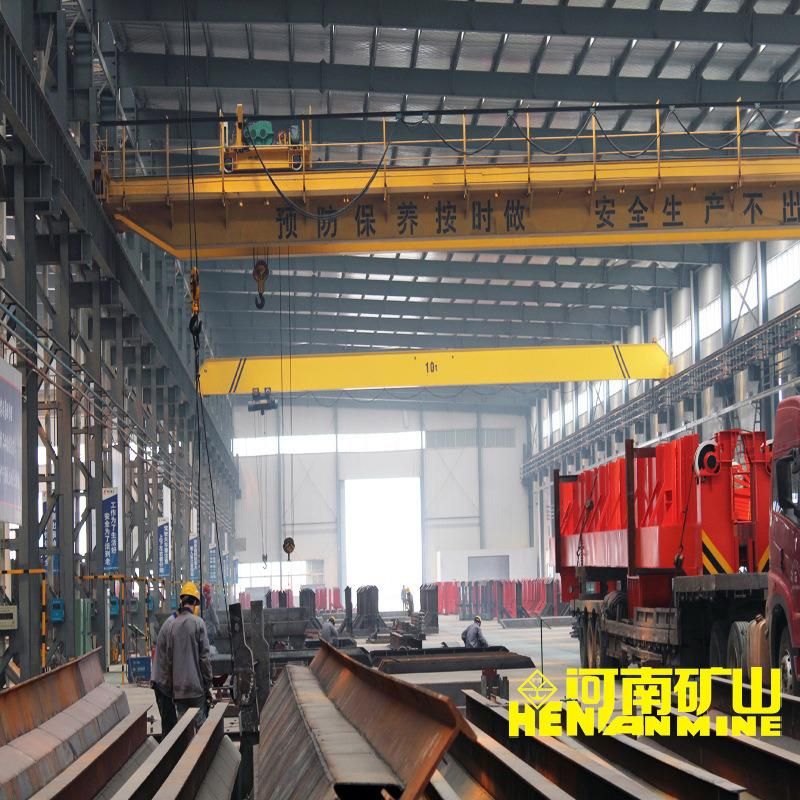

Detailed Photos

Qd Model Heavy Duty Double Girder Bridge Crane
Qd Model Heavy Duty Double Girder Bridge Crane
Qd Model Heavy Duty Double Girder Bridge Crane

Product Parameters

CapacityT1016/320/532/550/10Operational method Cabin controlSpanm10.5-31.5SpeedMainhook LiftingA5
m/min8.57.97.27.55.9A613.31312.39.57.8Aux. hook Lifting 16.719.519.513.2Cross travelling43.844.644.642.438.5Long travellingA5 90.7/91.9/84.784.7/87.684.7/87.687/74.274.6/85.9A6115.6/116.8/112.5112.5/101.4112.5/101.4101.4/101.886.8/87.3MotorLiftingMainA5Type /kwYZR180L-6/17YZR225M-8/26YZR225M-8/26YZR280S-10/42YZR280M-10/55A6 YZR250M1-6/37YZR225M2-6/45YZR280M-8/55YZR315S-8/75AuxiliaryYZR200L-6/22YZR180L-8/13YZR180L-6/17YZR180L-6/17YZR200L-6/26Cross travellingYZR132, 1-6/2× 6.3YZR132M2-6/4YZR132M2-6/4YZR160M-6/6.3YZR160M2-6/8.5Long travellingA5YZR132M2-6/2× 4YZR160M1-6/2× 6.3YZR160M1-6/2× 6.3YZR160M2-6/2× 8.5YZR160L-6/13A6YZR160M1-6/2× 5.5YZR160M2-6/2× 7.5YZR160M2-6/2× 7.5YZR160L-6/2× 11YZR180L-8/13Max. Lifting heightMain hookm1616121612Aux. hook 18141816Working duty A5, A6Power supply 380V 60HZ 3phase AC (As your demand)
