• Model NO.：QD
• Maximum Lifting Weight：<20t
• Main Girder Form：Double Girder
• Type：Beam
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Limited Switch：Include
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, OHSAS18001: 1999：Pass
• Electric Hoist Double Limit：Include
• Application：Mineral Area Usage, Workshop Usage
• Crane Type：Overhead Crane
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Transport Package：Packing by Woven Plastic Cloth and Plywood Crate.
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261120
• Production Capacity：19, 000 Sets,Year

Overview

Product Description

Double beam overhead traveling crane is designed and developed by current world advanced level. Its technology is advanced, equipped with many advantages, such as: Strong rigidity, light dead weight, outstanding structure design etc. Which could effectively save your factory space and investment cost, its particular and special travelling structure is your best choice.

It is composed of bridge frame, trolley, cart operating mechanism and electric equipment. The crane girder is of welded girder construction, this result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway! Trolley travel adopts separate driving move on specialized laying tracks, it is equipped with two hoisting mechanisms. Both of the main and aux. Hoisting mechanisms adopt internationally renowned brand. Lifting system consists of motor, reducer, brake, wire rope winding system, objects-catching equipment and protective devices, etc. The gearbox is mounted inside of the drum which has the advantages such as less occupying space, impact structure, easy to maintenance, less weight, high reliability, stable transmission, big outlet torque, lower noise, free of maintenance etc.

The operation of this crane is completed in driver's cabin, which has open type and closed type and can be installed on left or right side according to practical situation. The direction of entering the gate has two forms, sideway and ends, in order to satisfy the user's choice under different conditions.

Advantage:
1). First class quality with competitive price
2). Compact design, optimal use of the size of work areas
3). Reasonable structure, favorable performance
4). Control the load easily and position the load exactly
5). Smooth starting and stopping
6). Superior safety and reliability
7). Low noise, commodious cabin and good view
8). Minimum& Easy maintenance, excellent exchangeability for parts and components
9). Saves electricity specifications
10). "One-Stop Shop" for your crane and hoist needs

Safety features:
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: With thermal protection and currency protection.
5. Hooks with latch
6. Rubber buffers
7. Protective earthing
8. Crane switch and travel end switch
9. Sub-assemblies characteristic are tested before assembly.
10. All cranes must be preassmebled and tested before leaving factory and offer the certification of test.

Design and construction rules:
All the standards which is required for the crane is the Chinese standard.
You can also give us the layout of the place where the crane will be used, that we can recommend the right one for your reference!
This overhead crane is the most popular and pragmatic kind crane. It is applicable to transferring, assembly, check and repair as well as load and unload various materials. Its catching equipments are hook, grab or electromagnetic chuck, or with two or three kinds at a time.
This crane could widely used in machinery manufacture, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, papermaking, construction, electronics industries, workshop, warehouse and other material handling situations, esp. Applied to material handling that need precise positioning, large components precise assembly situations. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

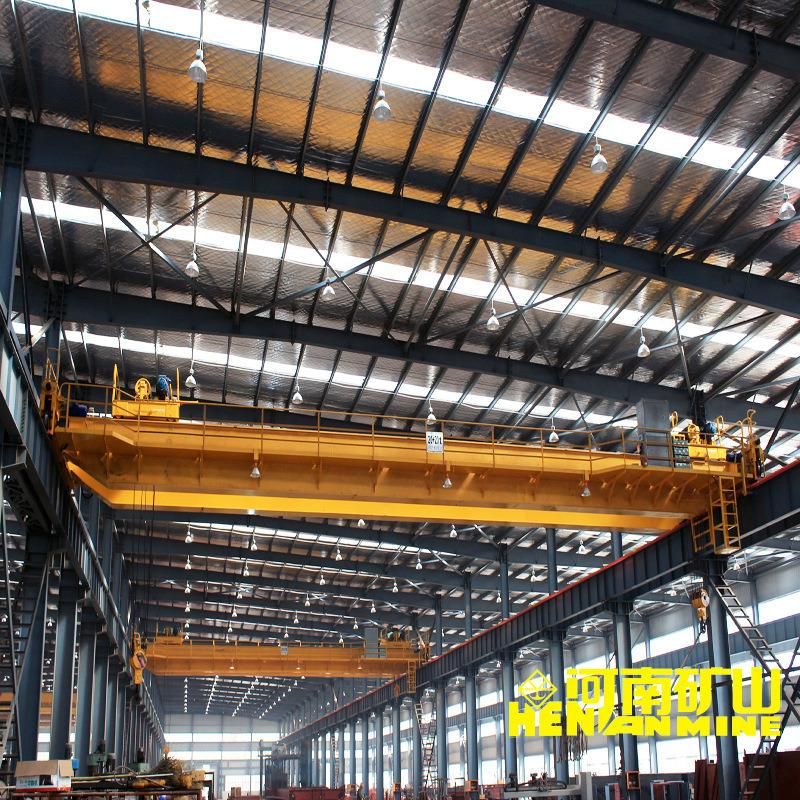

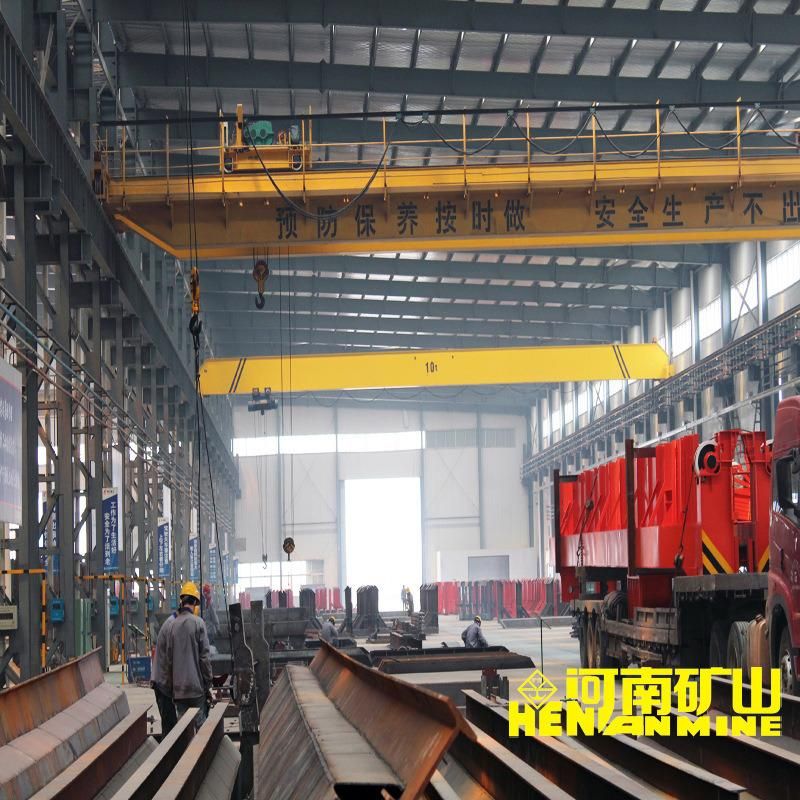

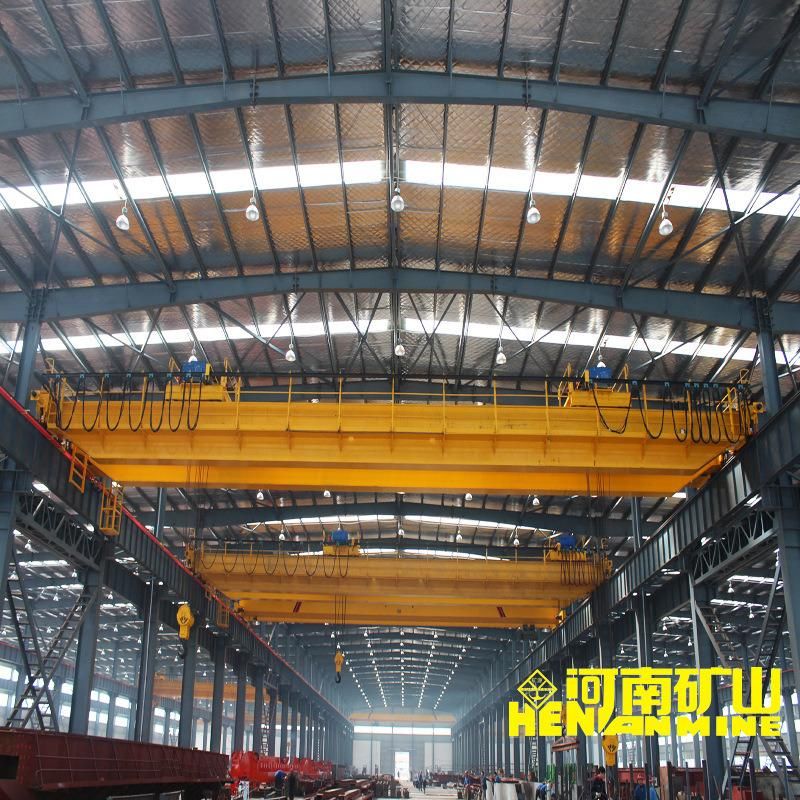

Detailed Photos

Product Parameters

CapacityT1016/320/532/550/10Operational method Cabin controlSpanm10.5-31.5SpeedMainhook LiftingA5
m/min8.57.97.27.55.9A613.31312.39.57.8Aux. hook Lifting 16.719.519.513.2Cross travelling43.844.644.642.438.5Long travellingA5 90.7/91.9/84.784.7/87.684.7/87.687/74.274.6/85.9A6115.6/116.8/112.5112.5/101.4112.5/101.4101.4/101.886.8/87.3MotorLiftingMainA5Type /kwYZR180L-6/17YZR225M-8/26YZR225M-8/26YZR280S-10/42YZR280M-10/55A6 YZR250M1-6/37YZR225M2-6/45YZR280M-8/55YZR315S-8/75AuxiliaryYZR200L-6/22YZR180L-8/13YZR180L-6/17YZR180L-6/17YZR200L-6/26Cross travellingYZR132, 1-6/2× 6.3YZR132M2-6/4YZR132M2-6/4YZR160M-6/6.3YZR160M2-6/8.5Long travellingA5YZR132M2-6/2× 4YZR160M1-6/2× 6.3YZR160M1-6/2× 6.3YZR160M2-6/2× 8.5YZR160L-6/13A6YZR160M1-6/2× 5.5YZR160M2-6/2× 7.5YZR160M2-6/2× 7.5YZR160L-6/2× 11YZR180L-8/13Max. Lifting heightMain hookm1616121612Aux. hook 18141816Working duty A5, A6Power supply 380V 60HZ 3phase AC (As your demand)
