• Model NO.：QUY55
• Type：Under-Slewing Crane
• Max. Rated Lifting Capacity：55t
• Max Load Moment：1994kn
• Gradeability：40%
• Fixed Jib Length：9.15~15.25m
• Overall Weight：48.5m
• Size：11.5*3.47*3.4m
• Engine Power：125kw
• Shipping Method：Roro or Container
• Best Delivery：in 10 Days
• Warranty：One Year or 2000hours
• Transport Package：Nude Package
• Specification：ISO, CE, GOST
• Trademark：Oriemac
• Origin：Jiangsu, China(Mainland)
• HS Code：84264910
• Production Capacity：8000PCS,Month

Max. rated lifting capacityBasic boomt55Fixed jibt5Max load momentKN.m1994Boom lengthm13~52Boom luffing angle°-3~80Fixed jib lengthm9.15~15.25Max. single line speed for hoist mechanism (no load, at 5th layer )m/min121Max. single line speed for boom luffing mechanism(at 1st layer)m/min52Max. swing speedr/min1.5Max. travel speedkm/h1.35Gradeability%40Average ground pressureMPa0.069Engine powerkW125/158Overall weight(main lifting hook,13m boom)t48.5Max. single unit weight for transportationt31Max. single unit dimensions for transportation(L×W×H)m11.5×3.47×3.4

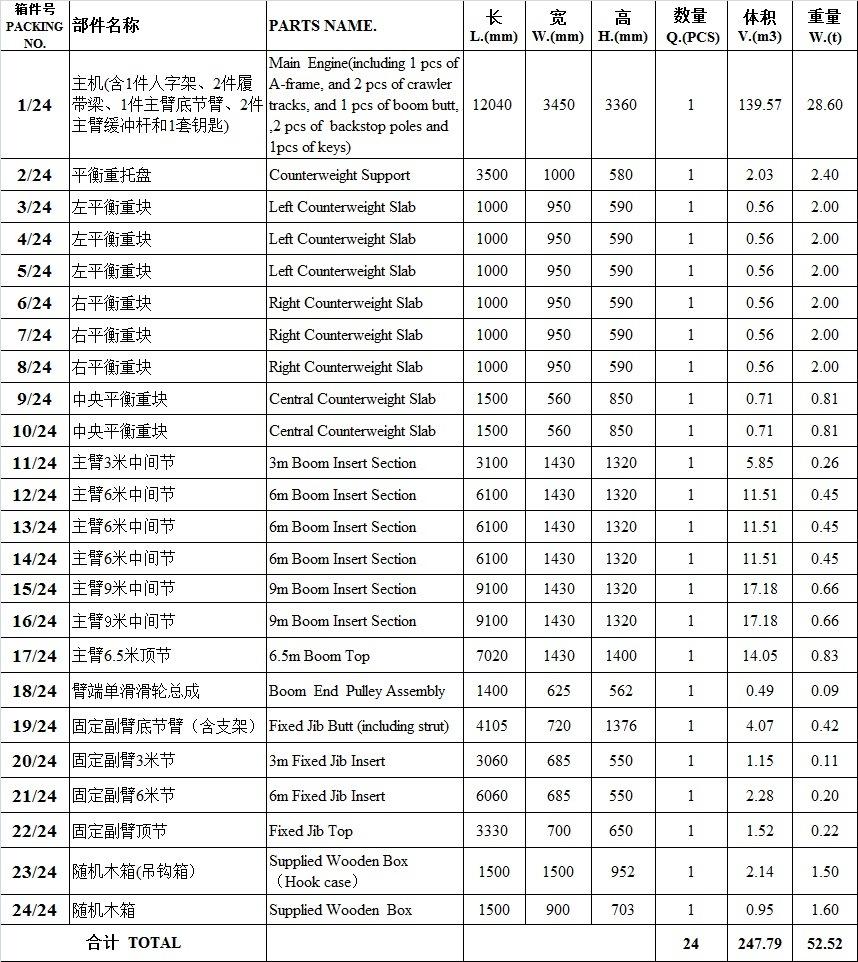

Packing List:
