• Model NO.：XCT130
• Rated Lifting Moment：5116kn.M
• Capacity：20-150 Ton Truck Crane
• Max.Travel Speed：85km,H
• Total Vehicle Mass：54990kg
• Minimum Turning Diameter：23m
• Span：7.9m
• Specification：15195*3000*3970mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XCT130 Rated Lifting Moment 5116kn.M Capacity 20-150 Ton Truck Crane Max.Travel Speed 85km/H Total Vehicle Mass 54990kg Minimum Turning Diameter 23m Span 7.9m Specification 15195*3000*3970mm Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

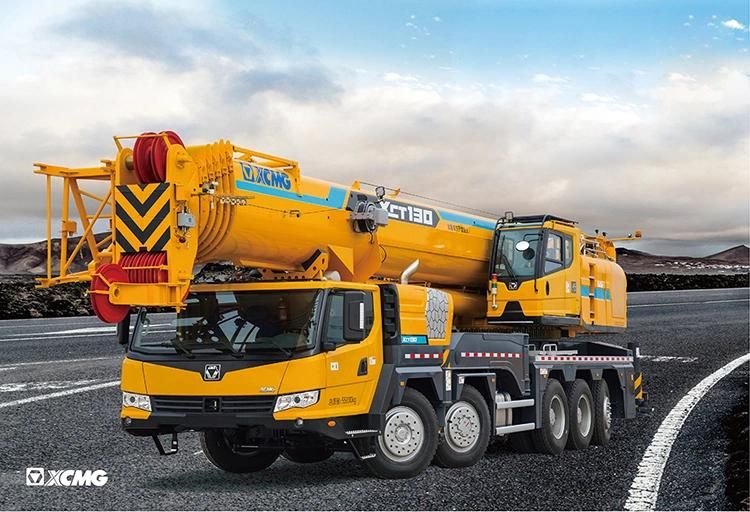

XCMG official 130 ton hydraulic truck crane XCT130.

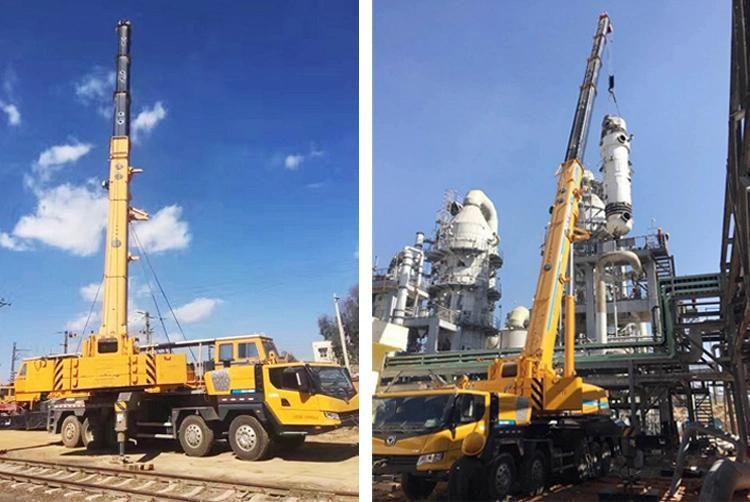

XCT130 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:

* 6-section boom of 61 m with U-type profile is adopted; the max. lifting load is 130 t; the max. lifting height is 85.3 m; the max. working radius is 70 m; The performance takes the lead comprehensively.

* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in gradability.
* Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.

product parameter

Item	Specification	Unit
Overall Length	15195	mm
Overall Width	3000	mm
Overall Height	3970	mm
Wheel Base	2449/2449/2315/2315/2449	mm
Total vehicle mass in travel configuration	54990	kg
Front Axle Load	16200	kg
Rear Axle Load	26000	kg
Engine Model	WP6G240E330
Engine rated power	190/2200	kw/(r/min)
Engine rated torque	1000/1200-1600	N.m/(r/min)
Max. travel speed	85	km/h
Min. travel speed	2.5~3	km/h
Min. turning diameter	23	m

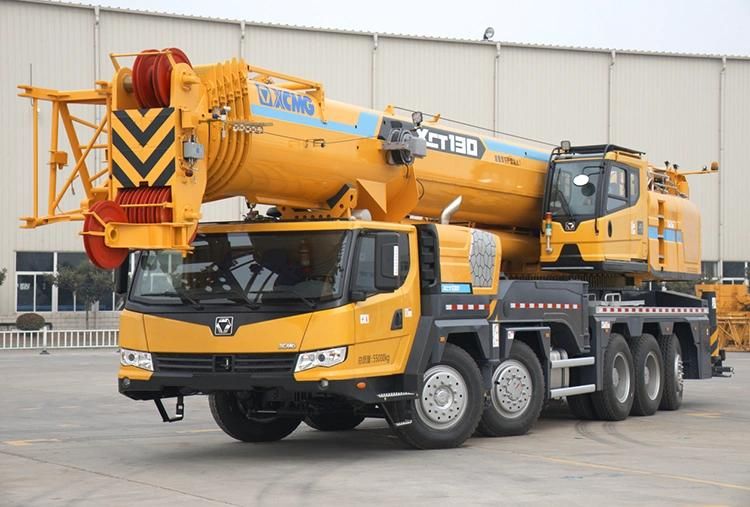

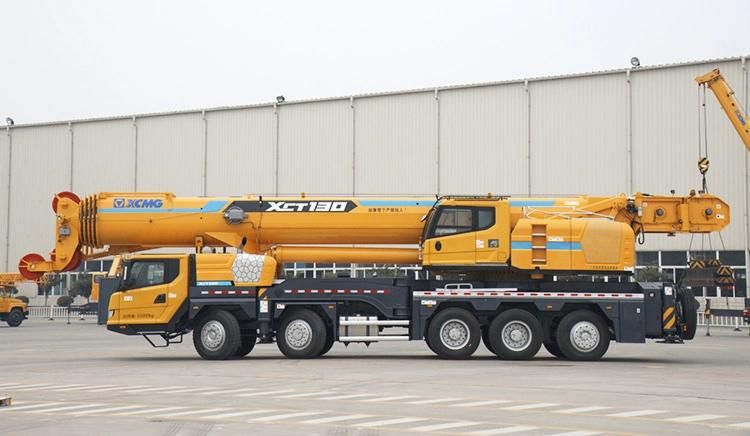

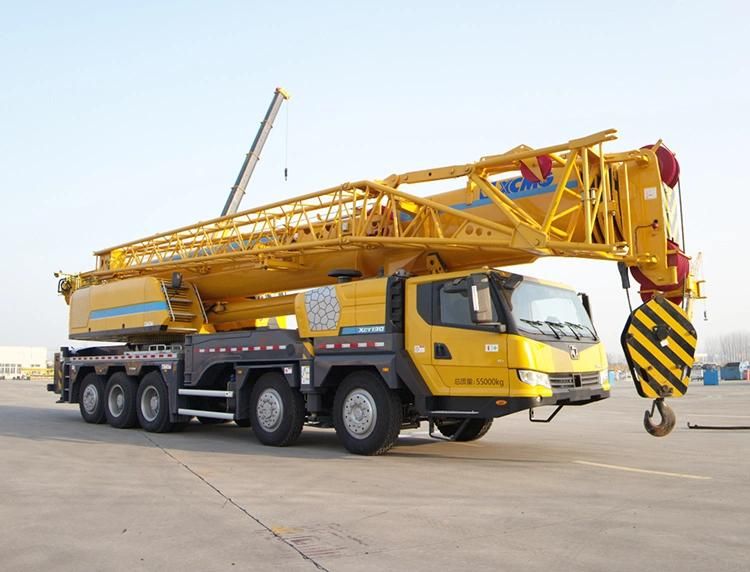

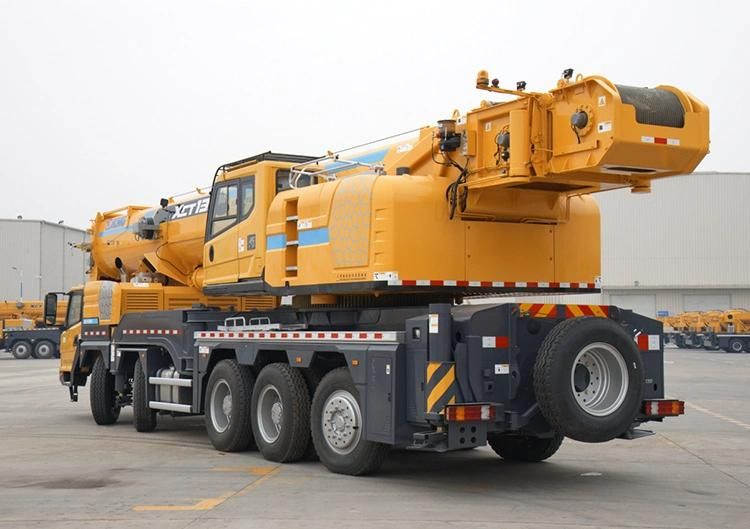

product show
