• Condition：New
• Operation Form：Air Operation+Ground Operation
• Maximum Lifting Height：>40m
• Maximum Lifting Weight：20-50t
• Main Girder Form：Single Girder
• Type：Beam
• Working Duty：A3-A6
• Power Source：as Your Request
• Color：as Your Request
• Electric Hoist：5ton
• Operation Mothod：Air Operation and Wireless Remote Control
• Motor Type：Yse80-4
• Crane Rail Recommended：P24 Rail
• Max Load：16t
• Structure：Q235
• After Service：12 Months
• Key Words：Overhead Bridge Crane
• Electric：Famous Brand
• Transport Package：Sea Worthy
• Specification：5ton
• Trademark：eternalwin
• Origin：China
• HS Code：8426112000
• Production Capacity：50000 Sets,Year
• Package size per unit product：1.00cm * 1.00cm * 1.00cm
• Gross weight per unit product：1.000kg

TYPE

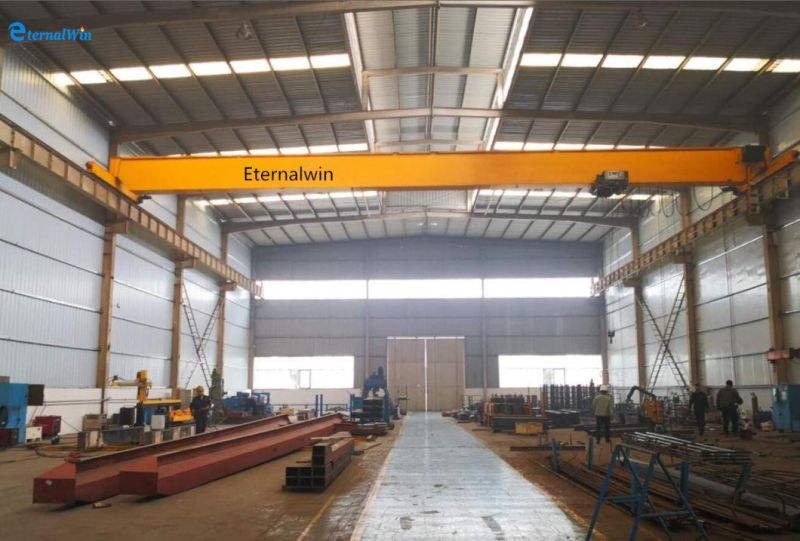

Single Beam / Double Beam Overhead Crane

Tonnage

1T | 2T | 3T | 5T | 10T | 12.5T | 16T | 20T | 25T | 30T | 40T | 50T | 75T | 100T | 200T | 300T | Customized

Span(main beam length)

5 meters to 40 meters

Lifting Height

3 meters to 40 meters

Working Level

A3 | A4 | A5 | A6 | A7

Lifting Speed

5/0.8 m/min double speed OR Customized

Trolley running speed

0-20 m/min frequency conversion OR Customized

Cart running speed

0-32 m/min frequency conversion OR Customized

Warranty time

18 MONTHS AFTER SHIPMENT

Lifting Motor

Squirrel cage 2-speed motor with Disc electromagnetic brake inside

Gear Motor

Hardened tooth gear for C.T.& L.T.

Surface preparation type

Shot Blasting Sa2.5

Painting Type/Depth

E/120µm

Electric Panel

famous brand

Max./Min. Static Wheel Load

62.9/11.8 kN

Control Method

Remote control

Industrial Voltage

380V 50HZ 3P AC OR Customized

Working temperature

-20~45ºC OR Customized

Application area

Factory,workshop,warehouse,power station,logstic,etc.

Customer visiting :


Advantages of Overhead Cranes are:

• Can be used where overhead runways are not practical.
• A much greater bridge weight than an equivalent overhead crane.
• Overhead Cranes are generally used for moving heavy loads,often outdoors.Eternalwin has designed and built many large gantries with features such as rotating hoists, multiple hoists and enclosed cabs.

• Thanks for your time , In order to sending you right price , Please imform us your detailed needs for overhead crane .

  1. crane rated load capacity ?
  2.  the crane span ?
  3. the crane lifting height ?
  4. the working voltage ?
  5. Do you need crane rail and bus bar ?
  6. How many hours the crane working per day ?
  7. the crane working environment ?
  8. any other demands for crane ?
