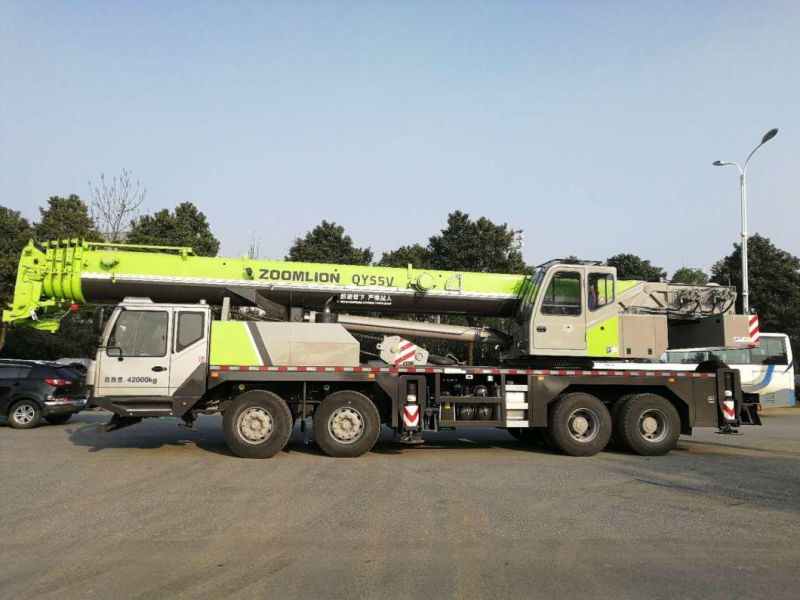

• Model NO.：QY55V
• Type：Folding
• Max. Load Moment of Basic Boom：12.6m
• Max. Lifting Height of Jib：58m
• Max. Driving  Speed：76km,H
• Deadweight in Driving Condition：42t
• Transport Package：Nude
• Specification：9450*24003180mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：87051091
• Production Capacity：500

Item

Value

Remarks

Working performance

Max. rated lifting capacity                   kg

55000

Max. load moment of basic boom      kN.m

2009

Max. load moment of Max. length main boom   kN.m

1050

Max. lifting height of basic boom             m

12.6

Max. lifting height of main boom           m

43.6

These parameters do not include deflection of boom and jib.

Max. lifting height of jib                     m

59.5

Working

speeds

Max. hoist rope speed (Main winch)    m/min

120

Max. hoist rope speed (Auxiliary winch)  m/min

120

Boom derricking up time                 s

50

Boom telescoping out time               s

95

Slewing speed                       r/min

0 - 2.2

Driving

Max. driving speed                 km/h

76

Max. gradeability                       %

40

Min. turning diameter                   m

≤24

Min. ground clearance                 mm

260

Oil consumption per hundred kilometer    L

43

Weight

Deadweight in driving condition          kg

42000

Complete vehicle kerb mass             kg

41870

Front axle load                         kg

16000

Rear axle load                         kg

26000

Dimension

Overall dimensions (L×W×H)           mm

13700X2800X3650

Longitudinal distance between outriggers  m

5.92

Transversal distance between outriggers  m

Completely extended:7.10m, intermediately extended:4.80m

Tail slewing radius                     mm

3900

Main boom length                       m

11.4 - 43.0

Main boom angle                         °

-2 - 80

Jib length                             m

9.5, 16.0

Offset                                   °

0, 30
