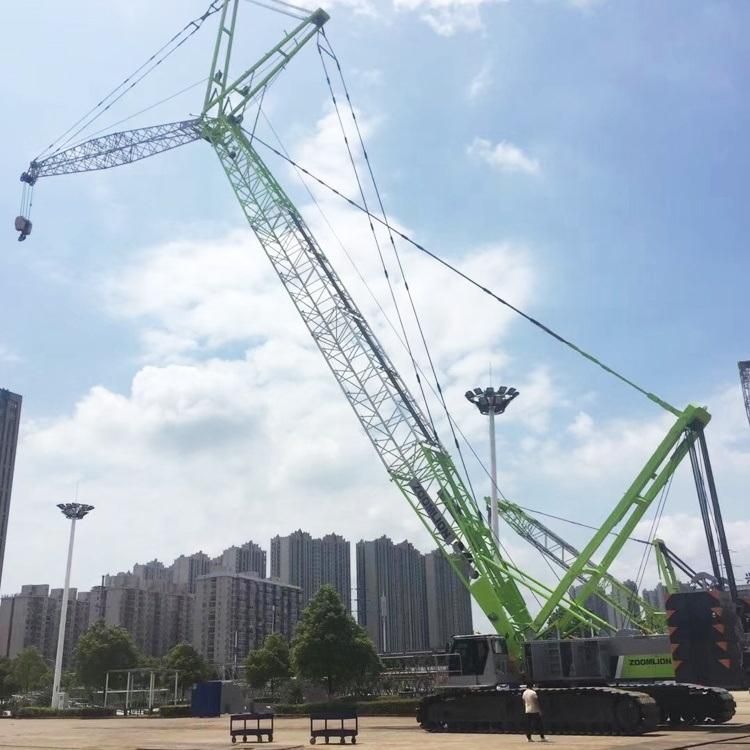

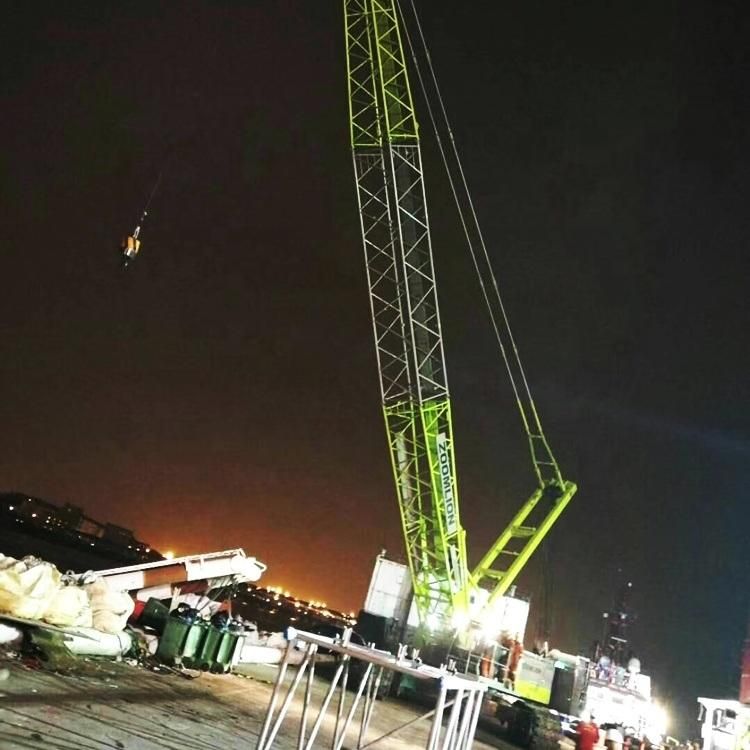

• Model NO.：ZCC1100H
• Main Boom Length：13 - 52
• Traveling Speed：0-1.6
• Max. Gradeability：30
• Engine Model：Wp6g190e26
• Rated Power / Rotational Speed：140,1900
• Exhaust Emission：National Stage II
• Package：Nude Package
• Type：Top-Slewing Crane
• Shipping Time：Within 15 Days Delivery
• Key Words：Truck Crane
• Usage：Lifting Goods
• Hydraulic Parts：Famous Brand Hydraulic Parts
• Application：Construction
• Color：Customer Requirements
• Transport Package：13500*-5000 (3400) *3200
• Specification：13500*5000 (3400) *3200
• Trademark：ZOOMLION
• Origin：Hunan, China
• HS Code：84295212
• Production Capacity：500pices,Year

ItemUnitValueRemarksMax. lifting capacity / radiusUS Tons/ft(mt/m)110/10'6"(100/3.2) Max. lifting capacity of fixed jibUS Tons (mt)8.8(8) Main boom lengthft(m)42'8"-219'10"(13-67) Fixed jib lengthft(m)180'5"+59'(55+18) Main boom angle.30-82.5 Fixed jib angle.10,30 Rope speed of hoisting winches 1 and 2With free-fall functionft/min(m/min)325(99)On the 4th rope layerWithout free-fall functionft/min(m/min)393(120)On the 4th rope layerSingle rope speed of derricking winchft/min(m/min)190(58)On the 4th rope layerMax./rated single rope force of hoisting winches 1 and 2With free-fall functionLbs(mt)44100/29988(20/13.6)With optional free-fall functionWithout free-fall functionLbs(mt)31311/27342(14.2/12.4)On the 1st rope layerOn the 1st rope layerMax.single rope force of derricking winchLbs(mt)15656(7.1)On the 1st rope layerSlewing speedr/min0-2.3 Traveling speed(high/low speed)mph(km/h)0.78/0.31(1.25/0.5) Gradeability%(°)30%(16.7° Max.transport weight of basic machineLbs(mt)99887(45.3) Deadweight(with basic boom)Lbs(mt)189630(86) CounterweightLbs(mt)61740(28)Rear counterweight22050(10)Central counterweightSlewing radiusft(m)15'5"(4.7) Overall dimensions(L × W × H)m45'3"×11'2"×11'(13.8×3.4×3.35) Ground clearance of the undercarriageft(mm)17"(437) EngineType Cummins QSL9-280 Rated powerHP@RPM(Kw@RPM)280@2100(209@2100)Max. output torqueLbs?ft@RPM(N?m@RPM)1050@1500(1424@1500)Exhaust standard According to U.S.EPA Tier 3Distance between track center×crawler contact length×crawler widthft(m)8'2"×17'10"×2'7"(2.5×5.44×0.8)Crawler carrier retracted13'9"×17'10"×2'7"(4.2×5.44×0.8)Crawler carrier extendedPicture
