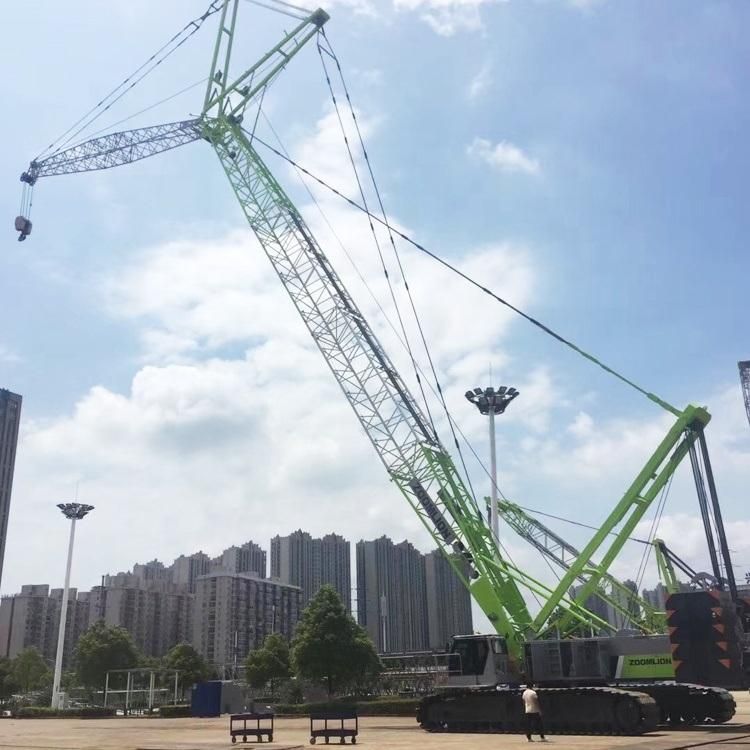

Zoomlion Zcc1100h 100 Ton Mobile Cheap Crane Crawler Crane
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Max. Lifting Height:84
- Rated Loading Capacity:100t
- Certification:ISO9001, CE, RoHS, BV
- Condition:New
- Warranty:1 Year
- Product:Zoomlion Crawler Crane
Base Info
- Model NO.:ZCC1100H
- Main Boom Length:13 - 52
- Traveling Speed:0-1.6
- Max. Gradeability:30
- Engine Model:Wp6g190e26
- Rated Power / Rotational Speed:140,1900
- Exhaust Emission:National Stage II
- Package:Nude Package
- Type:Top-Slewing Crane
- Shipping Time:Within 15 Days Delivery
- Key Words:Truck Crane
- Usage:Lifting Goods
- Hydraulic Parts:Famous Brand Hydraulic Parts
- Application:Construction
- Color:Customer Requirements
- Transport Package:13500*-5000 (3400) *3200
- Specification:13500*5000 (3400) *3200
- Trademark:ZOOMLION
- Origin:Hunan, China
- HS Code:84295212
- Production Capacity:500pices,Year
Description
ItemUnit Value Remarks Max. lifting capacity / radius US Tons/ft(mt/m) 110/10'6"(100/3.2) Max. lifting capacity of fixed jib US Tons (mt) 8.8(8) Main boom length ft(m) 42'8"-219'10"(13-67) Fixed jib length ft(m) 180'5"+59'(55+18) Main boom angle . 30-82.5 Fixed jib angle . 10,30 Rope speed of hoisting winches 1 and 2 With free-fall function ft/min(m/min) 325(99) On the 4th rope layer Without free-fall function ft/min(m/min) 393(120) On the 4th rope layer Single rope speed of derricking winch ft/min(m/min) 190(58) On the 4th rope layer Max./rated single rope force of hoisting winches 1 and 2 With free-fall function Lbs(mt) 44100/29988(20/13.6) With optional free-fall function Without free-fall function Lbs(mt) 31311/27342(14.2/12.4) On the 1st rope layer On the 1st rope layer Max.single rope force of derricking winch Lbs(mt) 15656(7.1) On the 1st rope layer Slewing speed r/min 0-2.3 Traveling speed(high/low speed) mph(km/h) 0.78/0.31(1.25/0.5) Gradeability %(°) 30%(16.7° Max.transport weight of basic machine Lbs(mt) 99887(45.3) Deadweight(with basic boom) Lbs(mt) 189630(86) Counterweight Lbs(mt) 61740(28) Rear counterweight 22050(10) Central counterweight Slewing radius ft(m) 15'5"(4.7) Overall dimensions(L × W × H) m 45'3"×11'2"×11'(13.8×3.4×3.35) Ground clearance of the undercarriage ft(mm) 17"(437) Engine Type Cummins QSL9-280 Rated power HP@RPM(Kw@RPM) 280@2100(209@2100) Max. output torque Lbs?ft@RPM(N?m@RPM) 1050@1500(1424@1500) Exhaust standard According to U.S.EPA Tier 3 Distance between track center×crawler contact length×crawler width ft(m) 8'2"×17'10"×2'7"(2.5×5.44×0.8) Crawler carrier retracted 13'9"×17'10"×2'7"(4.2×5.44×0.8) Crawler carrier extended Picture
