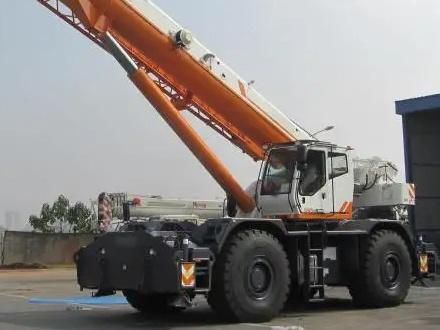

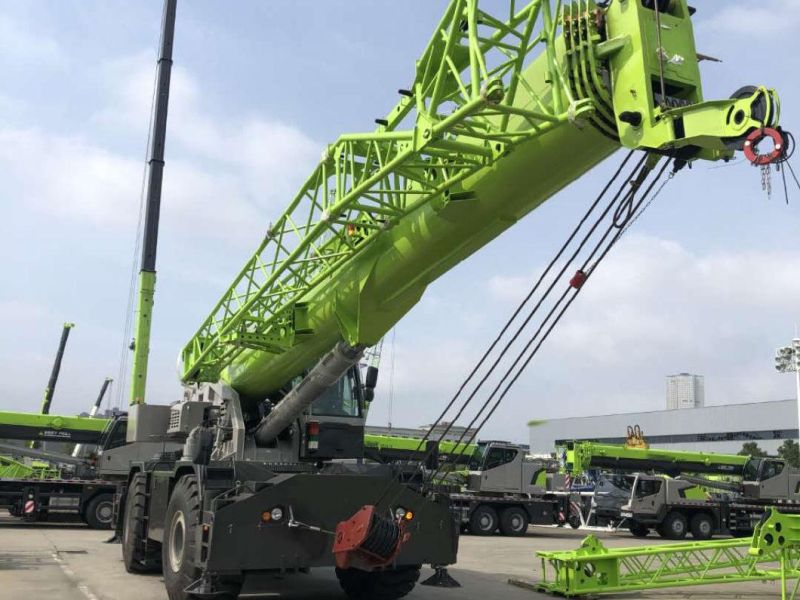

Zoomlion Factory Price Zrt850 85 Ton Rough Terrain Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：ZRT850
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Main Boom Length：12100 - 47000mm
- Transport Package：Nude
- Specification：14460*3400*3850mm
- Trademark：ZOOMLION
- Origin：China
- HS Code：8427109000
- Production Capacity：50,Month
Description
Item
Unit
Value
Max. rated lifting capacity × working radius
kg.m
85000×3
Max. load moment of main boom
kN.m
2700
Max. load moment of main boom (fully extended)
kN.m
1370
Max. lifting height of main boom (fully extended)
m
49.8
Max. lifting height of jib
m
65.7
Overall dimensions (L × W × H)
mm
14460×3400×3850
Outrigger spread
(Height × Width)
mm
7380×7300
Main boom length
mm
12100 - 47000
Jib length
mm
9500 - 16000
Boom angle
°
-1 - 80
Swing range
360° unlimited swing (Full range)
Max. hoist rope speed (Main winch)
m/min
130
Min. boom telescoping out time
s
120
Min. boom telescoping in time
s
135
Min. boom derricking up time
s
46
Min. boom derricking down time
s
105
Swing speed
r/min
0~2
Maximum working pressure
MPa
31.5
Rate working flow
L/min
280
Hydraulic oil tank capacity
L
1000
Gross weight
kg
53700
Front weight
kg
26900
Rear weight
kg
26800
Max. driving speed
km/h
36
Wheelbase
mm
4150
Treads
(Front / Rear)
mm
2632
Max. gradeability
