• Model NO.：ZTC250R531
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Max. Rated Lifting Capacity：25000 Kg
• Max. Load Moment of Basic Boom：960 Kn.M
• Max. Lifting Height of Main Boom：44 M
• Max. Driving Speed：90 Km,H
• Transport Package：Nude
• Specification：25000 kg
• Trademark：ZOOMLION
• Origin：China
• HS Code：87051091
• Production Capacity：1000,Year

Working    performanceMax.    rated lifting capacitykg25000 Max.    load moment of basic boomkN.m960 Max.    load moment of main boom(fully extended)kN.m672 Max.    lifting height of main boomm35.4These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm43Working    speeds              Max.    hoist rope speed(Main winch)m/min120At the 4th layerMax.    hoist rope speed(Auxiliary winch)m/min120At the 4th layerBoom    derricking up times25 Boom    derricking up times64 Slewing  speedr/min2.7 Driving

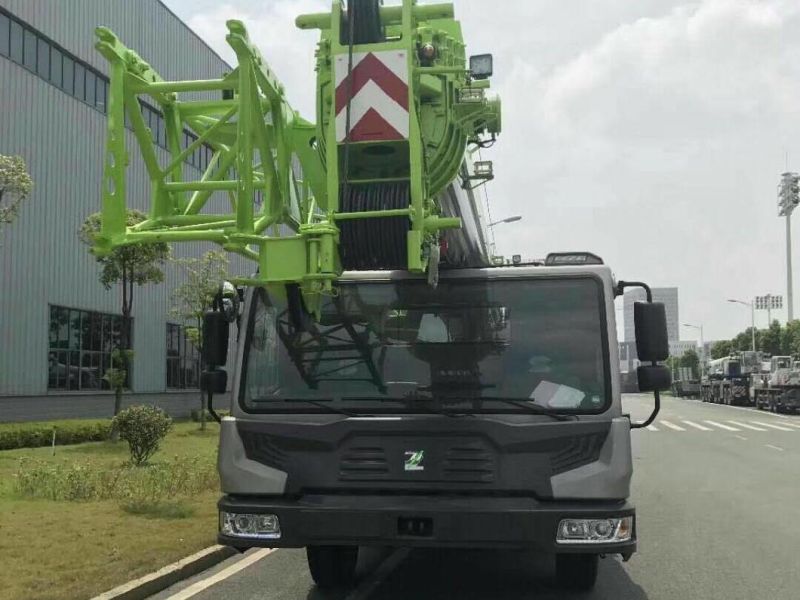

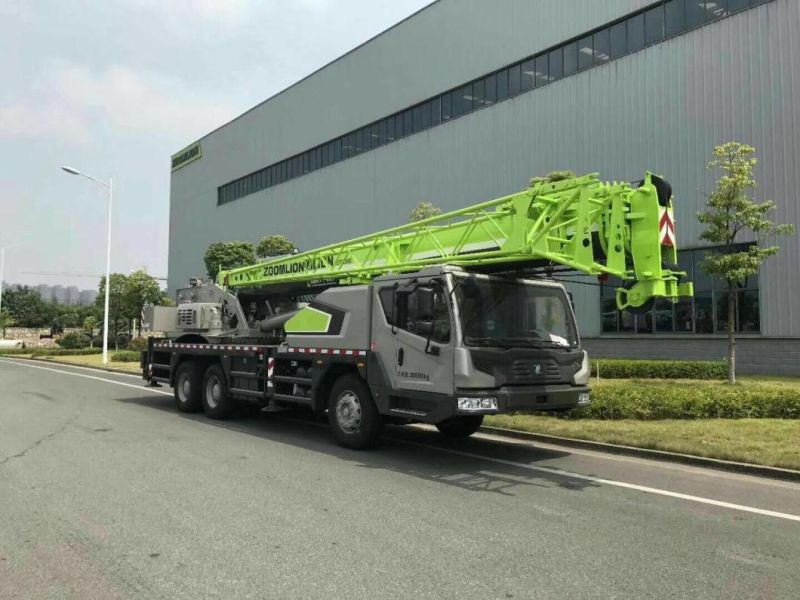

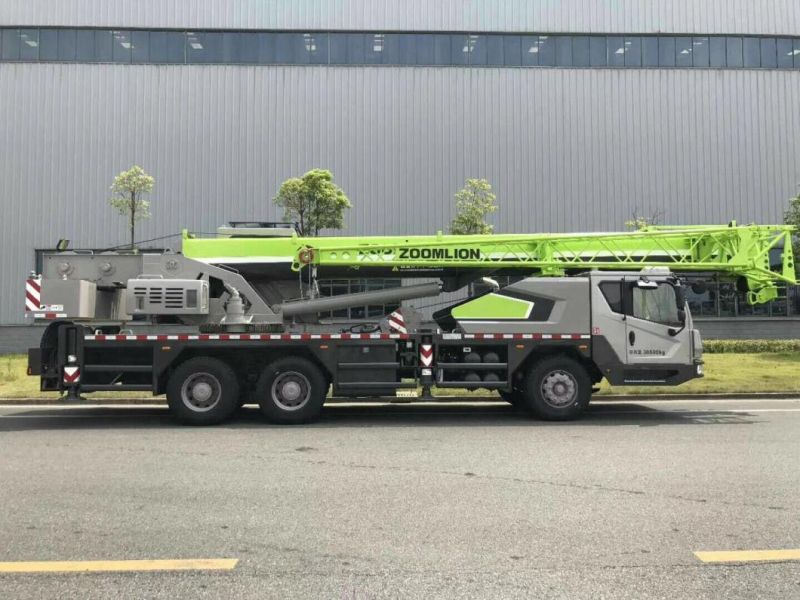

     parametersMax.    driving  speedkm/h90 Max.    gradeability%42 Min.    turning diameterm≤20 Min.  ground clearancemm260 Limits    for exhaust pollutants and smoke Comply    with related standardsGB3847-2005  GB17691-2005  National stage IIIOil    consumption per hundred kilometersL28 MassDeadweight    in driving conditionkg29600 Complete    vehicle kerb masskg29470 Front    axle loadkg6300 Rear    axle loadkg23300 DimensionsOverall    dimensions(L×W×H)mm13100×2500×3450 Outrigger    spread(L)m5.4 Outrigger    spread(W)m6.2 Main    boom lengthm10.7-35 Boom    angle°-2-80 jib    lengthm8 Offset°0/15/30 ChassisModel ZLJ5324JQZ Type IICode:    ZLJ5324JQZV3EngineModelkw/r/minWP7.270E31 Rated    power n.m/r/min199/2100 Max.    output torque 1160/1200~1600 Manufacturer    Heavy Industry Science and Technology Co., Ltd. Detailed Photos Packaging & Shipping
