• Model NO.：ZTC250V531
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Max. Rated Lifting Capacity：25000 Kg
• Max. Load Moment of Basic Boom：960 Kn.M
• Max. Lifting Height of Main Boom：44 M
• Max. Driving Speed：90 Km,H
• Transport Package：Nude
• Specification：25000 kg
• Trademark：ZOOMLION
• Origin：China
• HS Code：87051091
• Production Capacity：1000,Year

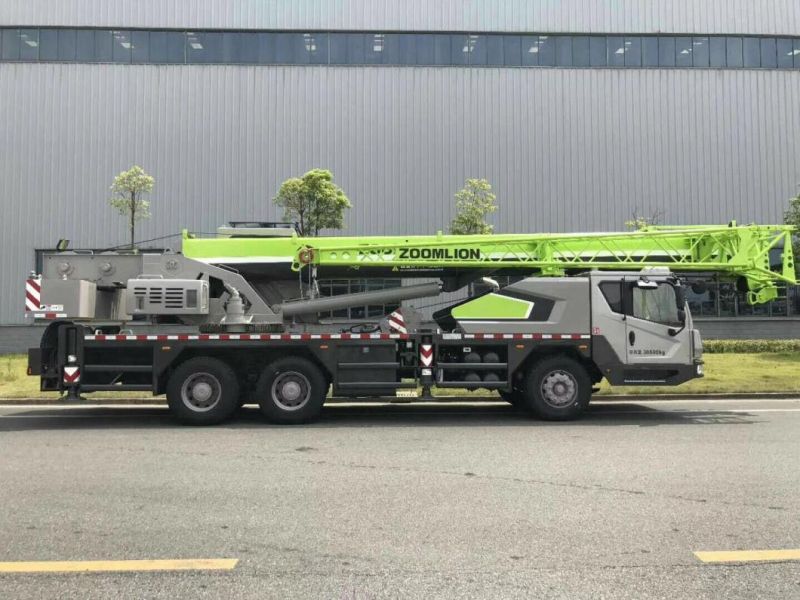

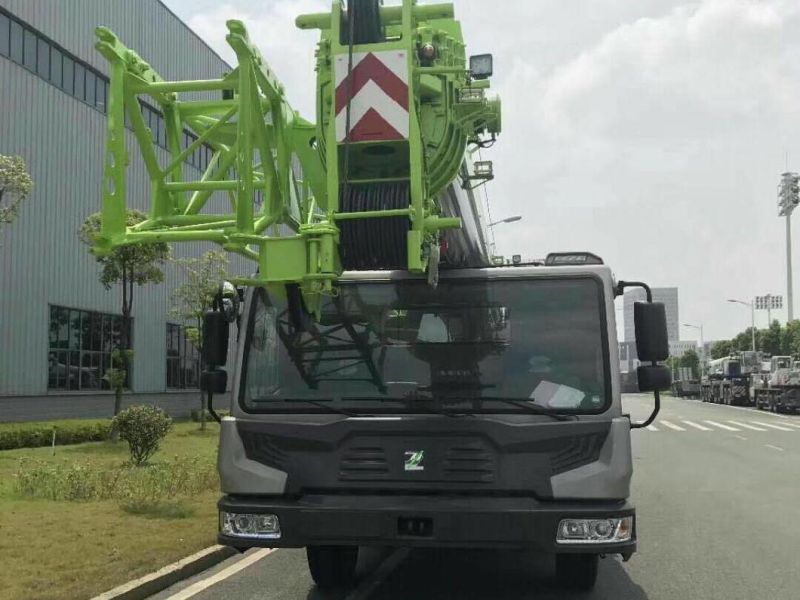

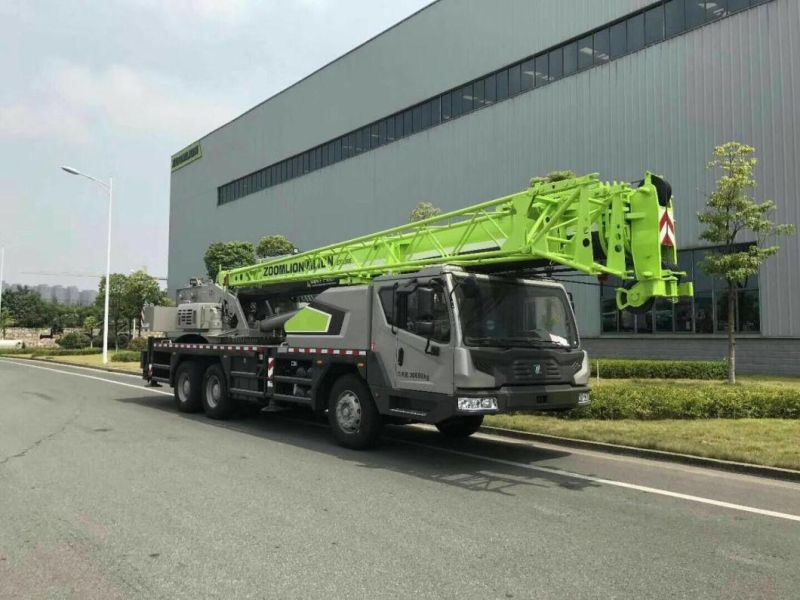

Truck Crane ZTC250V531

• Working performance
  Max. rated lifting capacitykg25000
  Max. load moment of basic boom

  kN. m980
  Max. load moment of max. boom lengthkN. m573
  Max. lifting height of basic boom m11.5
  Max. lifting height of boom m33.8Deformation of the boom is not taken into consideration.
  Max. lifting height of jib m41.6Working speed
  Max. hoist rope speed (main winch) m/min120At 4 th layer
  Max. hoist rope speed(auxiliary winch) m/min100At 2 nd layer
  Boom derricking times40
  Boom extending times60
  Slewing speed r/min0~2.2 Traveling specifications
  Max. traveling speed km/h78
  Max. gradeability %37
  Min. turning diameter m≤ 22
  Min. ground clearance mm220
  Limits for exhaust pollutants and smokeMeet with related standardsGB3847-2005
  GB17691-2005
  (National stage III)
  Oil consumption per hundred kilometers L45 Weights
  Deadweight in traveling condition

  kg30000
  Complete vehicle kerb mass kg29870
  Front axle load kg6800
  Rear axle loadkg23200 Dimensions
  Overall dimensions (L× W× H) mm12800× 2500× 3430
  Longitudinal distance between outriggersm5.36
  Transversal distance between outriggers m6.1
  Boom length m10.5~33.3
  Boom angle°-2~80
  Jib length m8
  Offset °0, 30 Detailed Photos Packaging & Shipping
