China Brand New Crane for Sale Scc850A 85t Crawler Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service:Engineer Available
- Max. Lifting Height:1 Year
- Rated Loading Capacity:85t
- Certification:ISO9001, CE, RoHS, BV
- Condition:New
- Warranty:1 Year
Base Info
- Model NO.:SCC850A
- Max Lifting Moment:358TM
- Max Boom Length:57m
- Engine:Isu,Zu Weichai
- Transport Package:Nude Package, Containers
- Specification:85T crawler crane
- Trademark:SA,NY
- Origin:Hunan, China
- HS Code:8426491000
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. SCC850A Max Lifting Moment 358TM Max Boom Length 57m Engine Isu/Zu Weichai Transport Package Nude Package, Containers Specification 85T crawler crane Trademark SA/NY Origin Hunan, China HS Code 8426491000 Production Capacity 100 Sets/MonthProduct Description

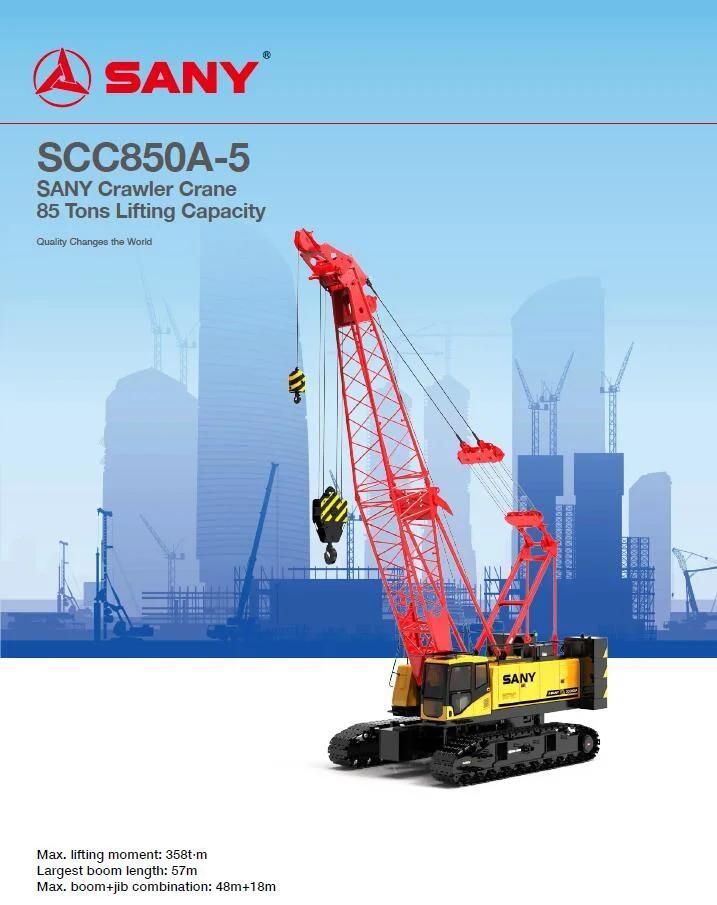

China Famous Brand New Crane for sale SCC850A 85t Crawler Crane
Max. lifting moment: 358t·m
Largest boom length: 57m
Max. boom+jib combination: 48m+18m
EASY TO TRANSPORT
Transport performance in line with global standards, low transport costs.
SELF ASSEMBLY/DISASSEMBLY
Efficient self assembly/disassembly system, greatly reducing assembly and disassembly time.
Engine
▪▪ISU/ZU 6HK1XKSC Diesel Engine.
▪▪Type: 6-cylinder in-line, direct injection, water-cooled, intercooler.
Compliant with European Off-highway Tier III emission standard,
and Chinese Off-highway Tier III emission standard.
▪▪Displacement: 7.79L.
▪▪Rated power 212 Kw/2000rpm.
▪▪Operation power: 200kW/1800rpm.
▪▪Max. output torque 1080N·m/1500rpm.
▪▪Starter device: 24V-5.0kW.
▪▪Battery: two 12V large battery in serial connection.
▪▪Fuel tank: 400L.
Electrical Control System
▪▪SYIC-2 integrated control system independently developed by
SA/NY is adopted to ensure high system integration, accurate
operation, and reliable quality. The control system mainly
includes power system, engine system, master control system,
load moment limiter system, auxiliary system, and safety
monitoring system.
▪▪The controller, monitor, and the engine communicates through
CAN Bus.
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle.
▪▪The Skyeye Monitoring System and Remote Control of machine
traveling on/off the trailer is offered as optional.
SCC850A-5 | SCC850A-6 | SCI850A | |
Max Lifting Capacity | 85T | 85T | 85T |
Max Lifting Moment | 358t·m | 358t·m | 358t·m |
Max Boom Length | 57m | 57m | 57m |
Fixed jib length | 18m | 18m | 18m |
Longest main boom + fixed jib | 48+18m | 48+18m | 48+18m |
Luffing jib length | /m | /m | /m |
Longest main boom + luffing jib | /m | /m | /m |
Engine | ISU/ZU 6HK1XKSC | Weichai WP7 | ISU/ZU 6HK1XKSC |
Engine output | 212/2000kW/ rpm | 199/2300kW/ rpm | 212/2000kW/ rpm |
