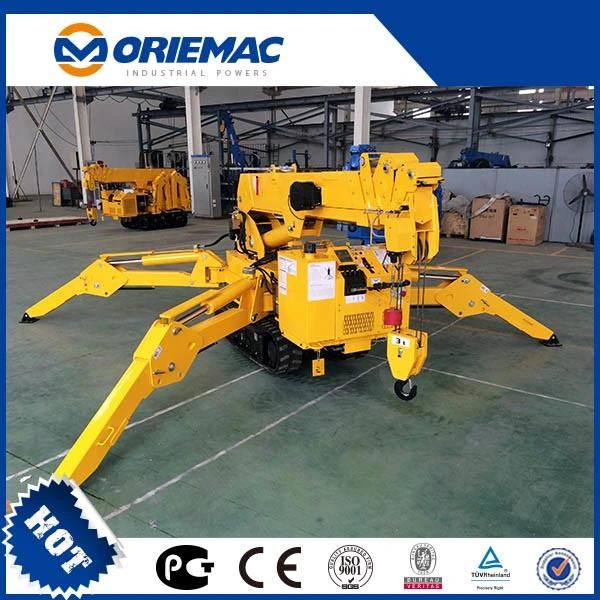

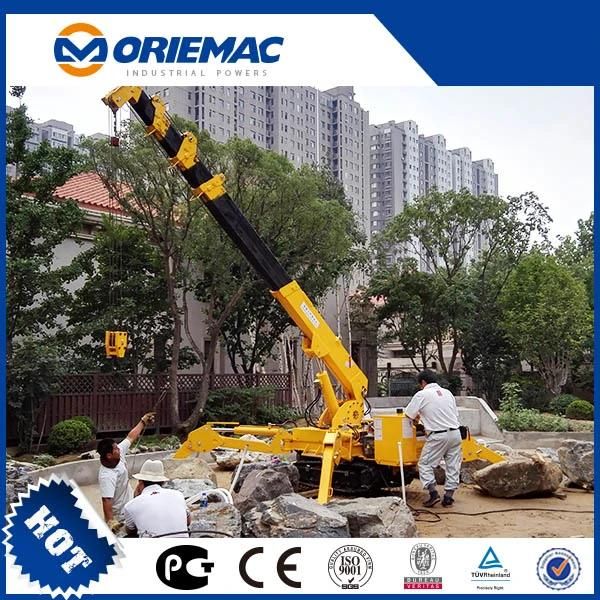

Spider Crane Zqs75-4 Zqs75-5 3 Ton Miniture Self-Propelled Crawler Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：GS, CE
- Condition：New
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：2-4t
Base Info
- Model NO.：ZQS75-4 ZQS75-5
- Shaft Number：2
- Crane Jib：Four-Arm
- Type：Straight Arm
- Max Operation Radius：16m×0.21t
- Max Raising Height：20.5m
- Telescopic Jib Form：Full Automatic 5 Section
- Transport Package：Nude, Suitable for Shiping
- Specification：CE, ISO9001
- Trademark：KB
- Origin：Henan, China
- HS Code：842890909
- Production Capacity：500 Set,Sets , Month
Description
Capacity
5.00t×2.0m
Working Radius
16m×0.21t
Ground Lifting Height
16.8m
Underground Lifting Height
20.5m
Winch Device
Hook Speed
8m/min(16m/min)6
Rope
Φ8mm×100m
Telescopic System
Boom Form
Full automatic 5 section
Boom Length
4.7m~16.5m
Telescopic Length/Time
11.7m/54sec(41sec)
Up and downs
Boom Angle/Time
0~80°/24.5sec(17.0sec)
Slew System
Slew Angle/ Speed
360°/2.1rpm(2.5rpm)
Outrigger
Type
manual adjustment for the 1 section.Automatic for the 2,3 section
Maximum Extended Dimensions
5670mm×5510mm×5030mm
Traction System
Drive
Hydraulic motor driven,stepless speed changer
Walking Speed
0~2.5km/ h
Grade Ability
20°
Ground Length×Width
1720mm×320 mm
Ground Pressure
49.0kpa(0.50 kgf / cm²)
Electric Motor
Type
YB132M-4
Working Voltage
380V/440V(Hz50,60)
Diesel Engine
Model
3TNV88-PFN(YANMAR)
Displacement
1.642L
Maximum Output
21.2kw/ 2400 min-1
Starting method
Electric starting
Fuel
Diesel
Length×Width×Height
4950mm×1560mm×2235mm
Weight
6500kg
Safety Devices
Air level,Moment limiter(Height limiter),Alarm Device,Emergency Stop Button
