• Model NO.：SCC750A-5
• Max Lifting Moment：300TM
• Max Boom Length：57m
• Engine：Isu,Zu 6HK1
• Transport Package：Nude Package, Containers
• Specification：75T crawler crane
• Trademark：SA,NY
• Origin：Hunan, China
• HS Code：8426491000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SCC750A-5 Max Lifting Moment 300TM Max Boom Length 57m Engine Isu/Zu 6HK1 Transport Package Nude Package, Containers Specification 75T crawler crane Trademark SA/NY Origin Hunan, China HS Code 8426491000 Production Capacity 100 Sets/Month

Product Description

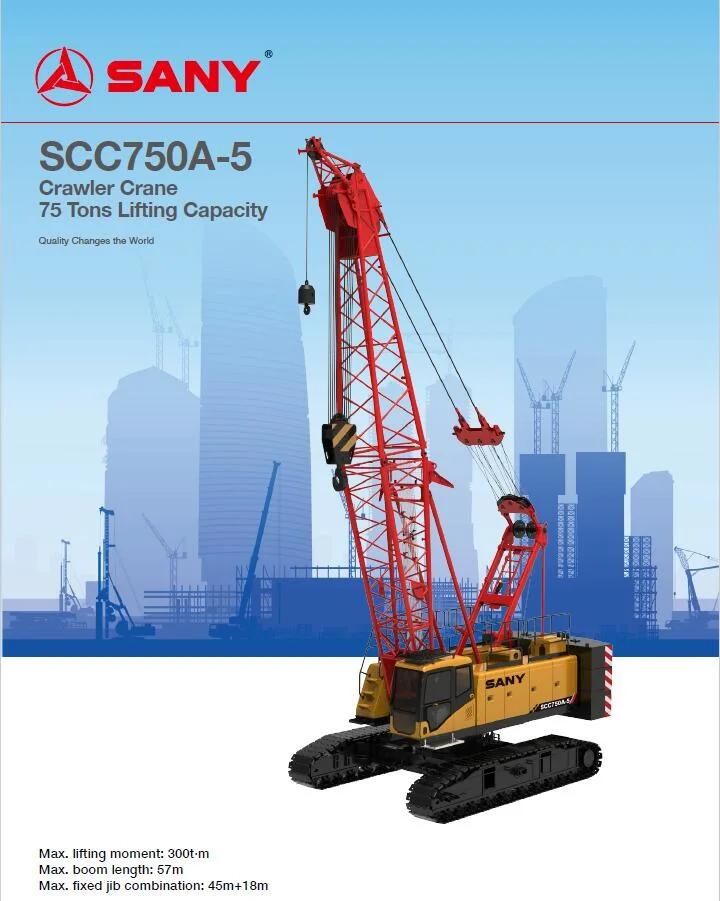

SCC750A-5 75t Crawler Crane with ISU/ZU Engine

Max. lifting moment: 300t·m
Max. boom length: 57m
Max. fixed jib combination: 45m+18m

EASY TO TRANSPORT
Transport performance in line with global standards, low transport costs.

SELF ASSEMBLY/DISASSEMBLY
Efficient self assembly/disassembly system, greatly reducing assembly and disassembly time.

Engine
▪▪Model: ISU/ZU 6HK1 Diesel engine;
▪▪Type: 4-stroke, water-cooled, 6 cylinders vertical in-line , direct
injection, turbo-charger, intercooler, complied with Chinese OffhighwayTier
III Emission Standard;
▪▪Displacement: 7.79L;
▪▪Rated power: 212kW/2000rpm;
▪▪Operation power: 200kW/1800rpm;
▪▪Max. Torque: 1080N·m/1500rpm;
▪▪Starter: 24V-5.0kW;
▪▪Radiator: fin type aluminum plate core;
▪▪Air cleaner: Dry type system with main filter element, safety
element and resistance indicator;
▪▪Fan: With silicone oil clutch, saving energy and cutting noise;
▪▪Fuel filter: Replaceable paper element;
▪▪Batteries: Two 12V capacity batteries, connected in series;
▪▪Fuel tank capacity: 400L.

Electrical Control System
▪▪Self-developed SYIC-II integrated control system is adopted with
higher integration, precise operation and reliable quality;
▪▪Control system consists of power system, engine system,
main control system, LMI system, auxiliary system and safety
monitoring system. CAN BUS is used for data communication
between controller, monitor and the engine;
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle;
▪▪The Sky Eye System and remote control of machine traveling on/
off the trailer is offered as optional.


	SCC450A-6
Max Lifting Capacity	75T
Max Lifting Moment	300t·m
Max Boom Length	57m
Fixed jib length	18m
Longest main boom + fixed jib	45+18m
Luffing jib length	/m
Longest main boom + luffing jib	/m
Engine	ISU/ZU 6HK1, Weichai WP7
Engine output	212/2000kW/ rpm, 199/2300kW/ rpm
