HBQZ 3.2 ton mini truck mounted cargo knuckle boom crane SQ80ZB2 from factory
Hubei Jiaheng Technology Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：<10m
- Maximum Lifting Weight：2-4t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Model NO.：SQ80ZB2
- Type：Straight Arm
- Max Lifting moment：80Kn.m
- Max Lifting Height：10m
- Working Radius：7.4m
- Boom Section：3 stages
- Rotation Angle：360°All Rotaion
- Working Pressure：16MPa
- Rated Oil Flow：30 L,min
- Oil tank Capacity：100L
- Winch type：Hydraulic
- Swing type：Planetary gear reduction.
- Outrigger：adjustable, Hydraulic operating.
- Outrigger Span：1750-3550mm
- Crane Weight：1500 kg
- Installation Space：800mm
- Material：HG785D
- Transport Package：Nude or Customized
- Specification：Nude or Customized
- Trademark：HBQZ
- Origin：China
- HS Code：8426910000
- Production Capacity：35 Unit,Units Per Month
Description
10.00R20 tubeless tire, 7 pieces including one spare tireMax Lifting Capacity3200kg/ 2.0m 1500kg/ 4.12m 1000kg/ 5.85m 700kg/ 7.56m Max Lifting Height 9.7m Max Working Radius 7.56m Boom Section 2 stages Rotation Angle 360°All Rotaion Rated Working Pressure 25mpa Oil tank Capacity 80L Related Oil Flow 30 L/min Outrigger Span 2160-3330mm Outrigger 2 ,adjustable, Hydraulic operating. Crane Weight 1500kg Installation Space 850mm Swing type Planetary gear reduction Material HG785D
1). Use HG70 international standard high-strength steel to reduce the weight of crane.
2).The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3).Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts to ensure the micro-mobility,security and stability.
4).Parker brand oil seal and gasket for hydraulic pump.
5).Brand scanreco remote control operate from Sweden.

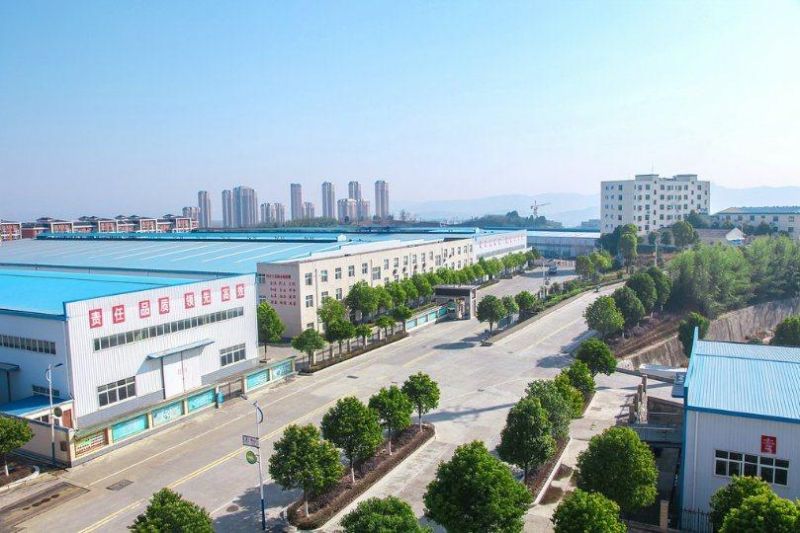

Part 2-----OUR COMPANY
HUBEI BEST CRANE CO.,Ltd is located in the central China in Hubei Province.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include a variety of special hydraulic cylinder.
After years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.

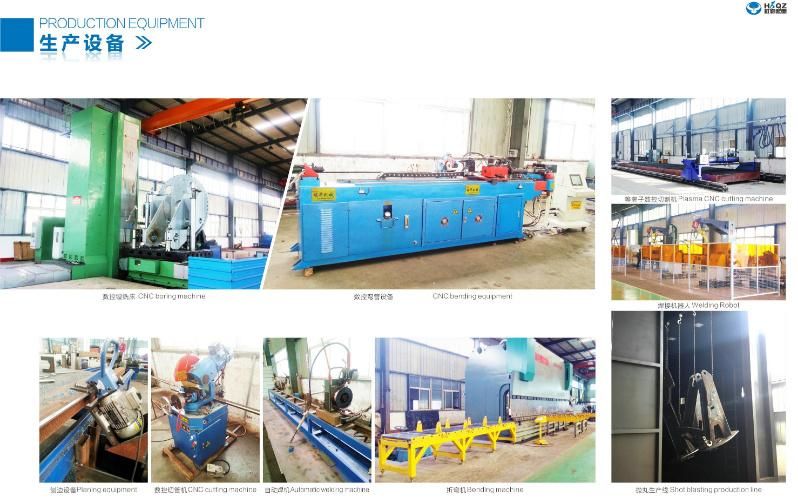

Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce custiomed products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
