China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：5-7t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：CLW5089SCD
  • Type：Straight Arm
  • Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
  • Engine Brand：Cummins, 168HP
  • Gearbox：6forwards & 1reverse
  • Crane Brand：Sany, XCMG, Clw, etc.
  • Crane Capacity：2ton, 3ton, 4ton, 5ton, 6ton, 7ton, etc.
  • Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
  • Boom Type：Straight 4-Arm Telescopic Boom
  • Cargo Material：Q235 Carbon Steel
  • Cargo Thickness：Side 1.5mm, Bottom 2.5mm
  • Warranty：1 Year
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：8215*2500*3850 mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

ChassisDrive Model4x2, Left hand driveVehicle Main DimensionsDimensions(L x W x H)(mm)8215*2500*3850Wheel base (mm)4500Weight in KGSCurb Weight (kg)8450Gross weight(kg)15795Front/Rear axle loading(kg)2700/7200Max. driving speed(km/h)90EngineHorse Power(HP)Cummins, 168HPEmission standardEuro IIGearbox6 forwards & 1 reverseSteering GearPower steering, hydraulic steering with power assistanceBrakesAir BrakeTire10.00-20 tire, 10pcs with 1 spare tireUpper CargoMaterialQ235BDimension5070X2400X600mmThickness3mm for side /4 mm for the bottomTechnical parameter of craneCrane Model5Ton 4 Arms Knuckle Boom CraneCrane Weight2260kgMax. Lifting capacity5000kgMax lifting height12MWorking radius11MMax. Oil flow of hydraulic system32L/minMax. Pressure of Hydraulic system20MPaOil tank capacity 90LInstallation space900 mmRotation angle360 degree All rotationRemarks1.Color is optional
2.Customized LOGO painting as per customer request

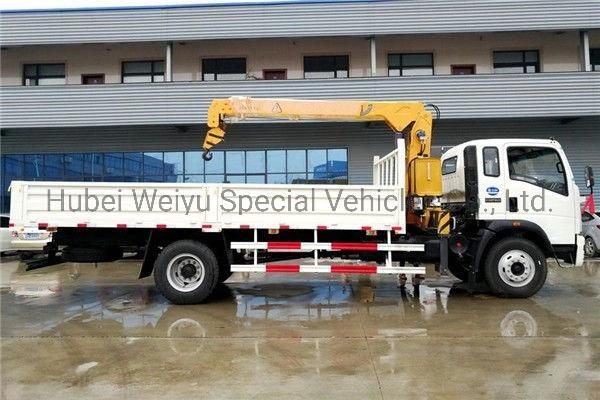

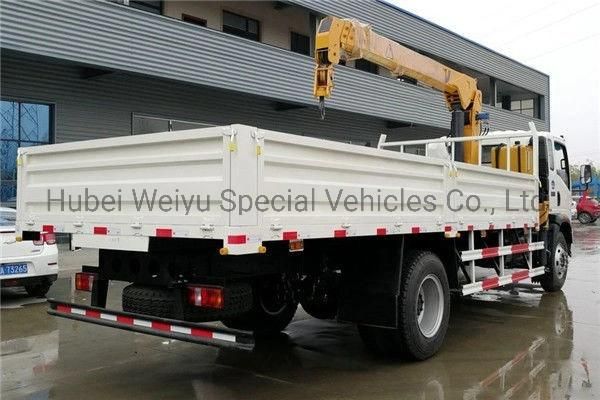

Reference Photos
China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane
China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane

China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom CraneChina HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane

Main Details
China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane

Working Scene
China HOWO 4X2 Hydraulic Hoisting Truck Mounted Loading Crane Constructionlifting Machine with Good Price 5ton Truck with 4 Arms Knuckle Boom Crane
