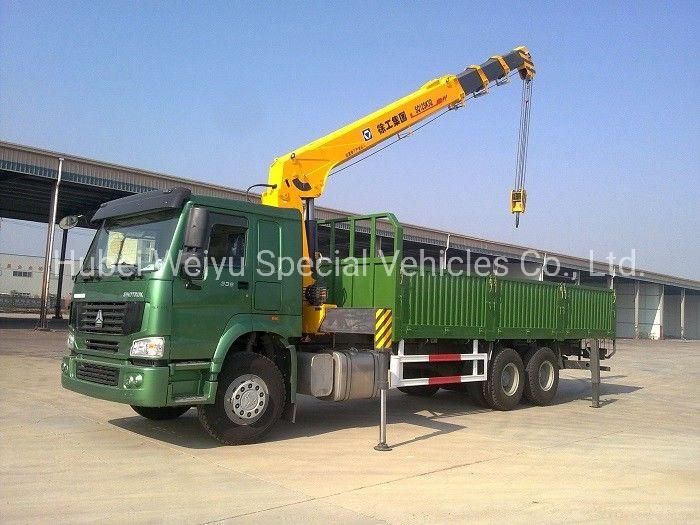

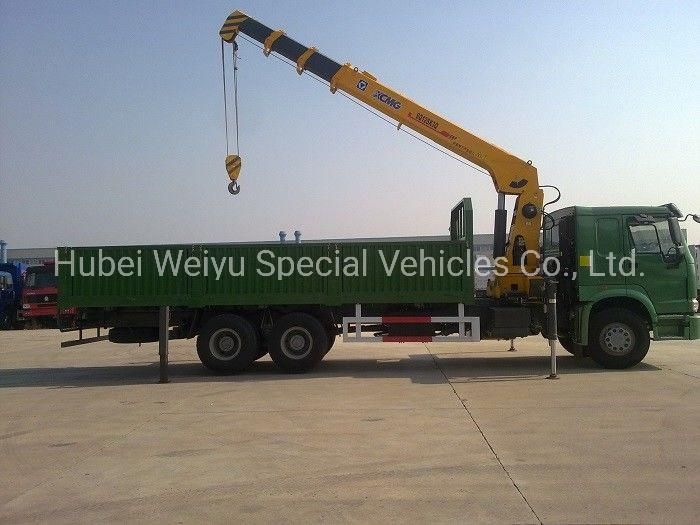

12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：11-13t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：CLW5089SCD
  • Type：Straight Arm
  • Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
  • Engine Power：336HP
  • Gearbox：10forwards & 2reverse
  • Crane Brand：Sany, XCMG, Clw, etc.
  • Crane Capacity：2ton, 3ton, 4ton, 5ton, 6ton, 7ton, etc.
  • Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
  • Boom Type：Straight 4-Arm Telescopic Boom
  • Cargo Material：Q235 Carbon Steel
  • Cargo Thickness：Side 1.5mm, Bottom 2.5mm
  • Warranty：1 Year
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：11960*2500*3760 mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

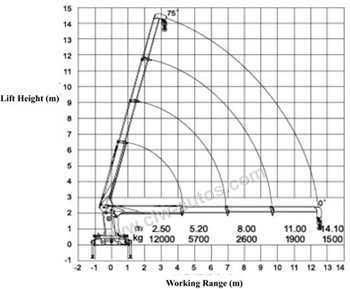

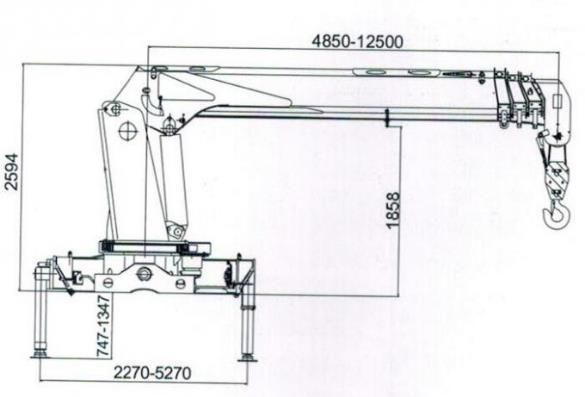

Product nameHowo Truck Mounted with Crane with 12Ton CapacityChassis modeldomsinotuk howo Truck with CraneOD(mm)L×W×H11960*2500*3760 mmThe size of the box8150*2330*600 mmTotal Mass25000KGAxle load9000KG/16000KGColorAccording to your requirementEngineMaximum power247KWDisplacement5990mlFuel typeDiesel OilWheel Base(mm)4600+1350Type & Size of Tyre11.00R20,11R22.5Number of tyre10 tire with one spare Max Speed110Km/hTechnical parameter of crane(Straight Boom & Folding-Type Boom)Crane weight (KG)1200max. lifting weight(KG)4000Rotation Angle360ºEquipment for 4tons Crane Mounted PartsWorking Platform360°turning(left or right), H-shape legs 360°Cargo Box Dimension8150×2330×600mmMaterial of box bodyCarbon steelExtendable boom section1Boom TypeStraightLifting Max. Weight12000KGLifting Max. Height7560 mmWorking Radius12500 mm

Reference Photos
12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes
12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes
12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes

Main Details
12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes

Working Scene
12 Tons Truck Mounted Straight 4-Arm Telescopic Crane China HOWO 10 Wheels Hoisting Truck with Cranes
