• Model NO.：LDA Overhead Crane
• Maximum Lifting Weight：20t
• Main Girder Form：Single Girder
• Type：Ordinary
• Crane Type：Lda
• Lifting Weight：1~20t
• Lifting Height：6~20m
• Lifting Speed：8,0.8m,Min
• Working Class：A3
• Voltage：380V 50Hz Three-Phase
• Span：7.5~22.5m
• Working Speed：20~30m,Min
• Width of Trail：37~70mm
• Color：Customer Request
• Transport Package：by Sea Standard Packaging
• Specification：Made of steel
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henanchina
• Production Capacity：20000sets,Year

Basic Info.

Model NO. LDA Overhead Crane Maximum Lifting Weight 20t Main Girder Form Single Girder Type Ordinary Crane Type Lda Lifting Weight 1~20t Lifting Height 6~20m Lifting Speed 8/0.8m/Min Working Class A3 Voltage 380V 50Hz Three-Phase Span 7.5~22.5m Working Speed 20~30m/Min Width of Trail 37~70mm Color Customer Request Transport Package by Sea Standard Packaging Specification Made of steel Trademark KUANGYUAN Origin Xinxiang, Henanchina Production Capacity 20000sets/Year

Product Description

  Remote control Single Girder Overhead traveling crane

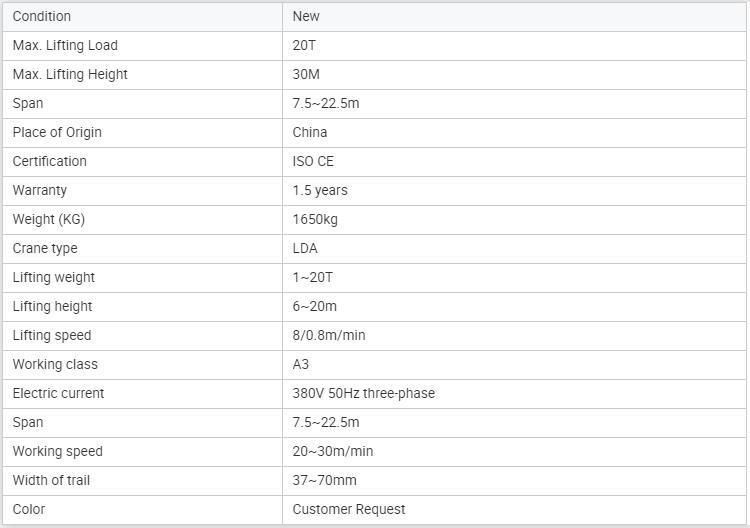

Specifications

Description:
LDA Single Girder Overhead Crane is widely used in plants warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment. LDA Single Girder Overhead Crane has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.

Application:
Double girder bridge overhead crane allocation hook used in machining, assembly workshop, metal workshop, metallurgy and casting workshop and warehouse handling work; allocation of grab is suitable for metallurgy, cement, chemical or open fixed span in bulk material handling.

Features:
1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Designed according to your reques

Safety system:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!

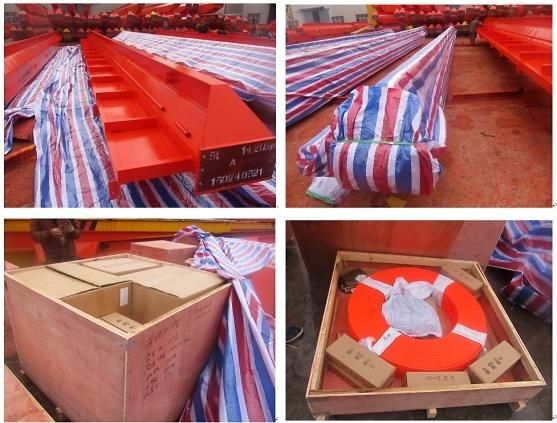

Packing and Delivery:
