• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Max. Rated Lifting Capacity：100t
• Boom Length：13~64
• Rated Power/Revolution Speed：212,2000kw, Rpm
• Machine Transport Dimension (with Crawle：13300*3490*3450
• Transport Package：Regular Package
• Specification：13300*3490*3450
• Origin：China
• Production Capacity：100

Basic Info.

Shaft Number 3 Crane Jib Five-Arm Type Folding Max. Rated Lifting Capacity 100t Boom Length 13~64 Rated Power/Revolution Speed 212/2000kw/ Rpm Machine Transport Dimension (with Crawle 13300*3490*3450 Transport Package Regular Package Specification 13300*3490*3450 Origin China Production Capacity 100

Product Description

                         25 Tons Stc 250 , 30 Tons,  50 Tons, 70 Tons, 100 Tons ,130 ton ,160 ton,220 ton,250 ton, 300 ton ,350 ton,400 ton,600 ton Truck Crane with Factory Price

Product Description:

1.famous brand truck crane
2.Lifting capacity:  25, 30 ,50, 75, 90, 100, 125 ton ,130 ton,160 ton,220 ton,250 ton,300 ton,350 ton,400 ton,600 ton
3.Full extended boom 58.3m
4.Good performance
5.Timely delivery
Product Description

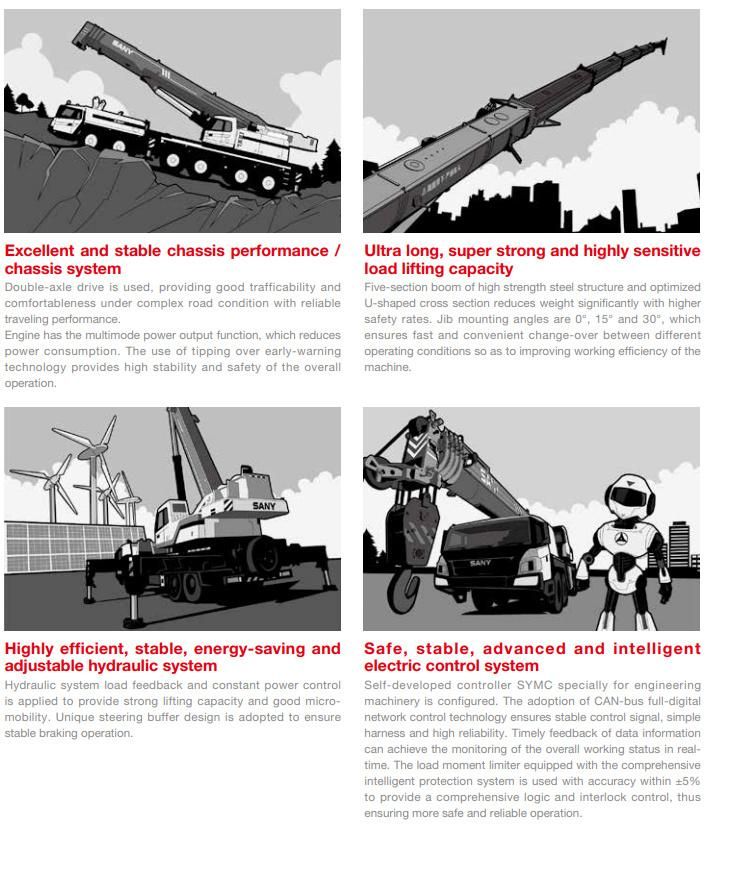

Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good trafficability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
Highly efficient, stable, energy-saving
and adjustable hydraulic system Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micromobility.
Unique steering buffer design is applied to ensure stable braking operation.
Ultra long, super strong and highly sensitive
load lifting capacity Four-section boom of high strength steel structure and optimized U-shaped cross section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15° and 30°, which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.
Safe, stable, advanced,and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime.
The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.
