• Model NO.：Howo
• Type：Straight Arm
• Model No.：Zz1257m4641W
• Product Name：Truck Mounted Crane
• Lifting Capacity：12 Tons
• Truck Loading：>20 Tons
• Crane Brand：China Famous Brand
• Tire Type：Inner Tube
• Steering：LHD, Rhd
• Truck Engine Horsepower：290HP
• After-Sales Service Provided：Video Technical Support, Online Support, Free Part
• Max. Lifting Height：9.755m
• Transport Package：Nude Packing
• Specification：11250x2550x3850mm
• Trademark：sinotruk
• Origin：China
• HS Code：83269100
• Production Capacity：5000pieces,Year

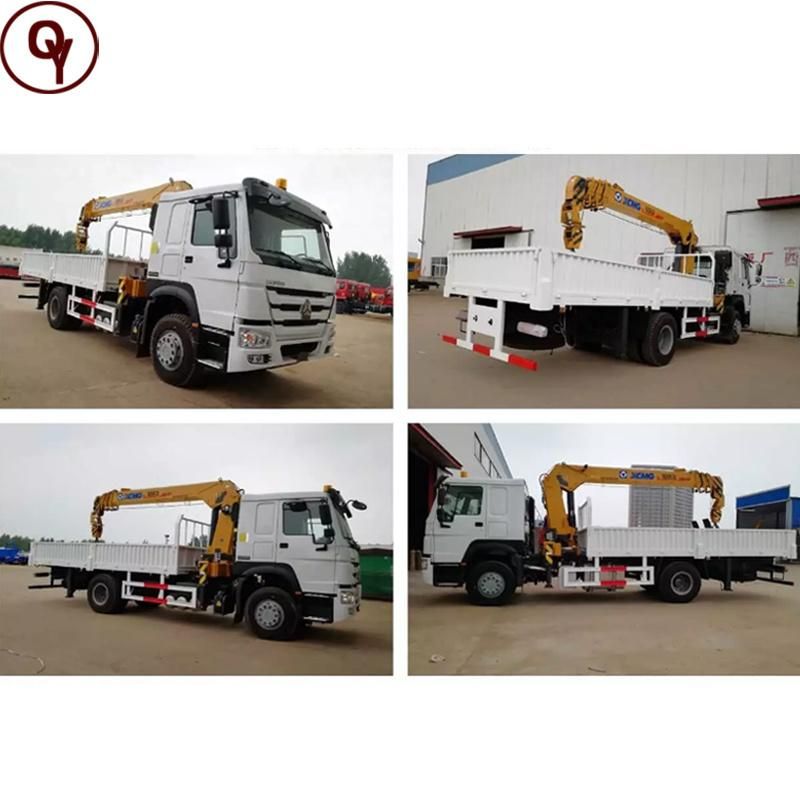

         SINOTRUK HOWO 290hp 6x4 truck crane with 10ton craneTruck BrandSINOTRUK-HOWOChassis NoZZ1257M4641WCargo body size(LxWxH)6500x2650x600mm; floor3mm,side1.5mmDimension(Lx W xH) (mm)10350×2680×3900Telescopic arm crane

Max.lifting capacity:10ton

Max.lifting height:9.755m

Max.lifting moment:20T.m

Rotation angle:360°(all rotation)

Oil flow of hydraulic system:40L/min

Pressure of hydraulic system:28Mpa

Oil tank capacity:160L

Crane weight:3477kg

Installation space:1150mm

Approaching angle/Departure angle(°)16/12  Overhang(front/rear) (mm)1500/2875Wheel base (mm)4600+1350Max speed(km/h)102  Curb weight(kg)14850 Gross Vehicle weight(kg)25000 EngineWD615.87,       Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail290HPEuro 2TransmissionHW13710,10 forward&2 reverse  Brake systemService brake:Dual circuit compressed air brakeParking brake:

spring energy, compressed air operating

on rear wheels

 Auxiliary brake:Engine exhaust brake Steering system 8198,hydraulic steering with power assistance Front axle HF7Rear axleST16Tyre12R22.5, 10+1 spareElectrical system

Battery:2X12V/165Ah;

Alternator:28V-1500kw;

Starter:7.5Kw/24V;

 Cab

HW76 cab,one sleeper,with A/C

all-steel forward control,55ºhydraulically tiltable

to the front,2- arm windscreen wiper system with three

speeds, laminated windscreen with casted-in radio aerial,

hydraulically damped adjustable driver's seat and rigid

adjustable co-driver's seat, with heating and ventilating

system, outer sun visor, adjustable roof flap, with stereo

radio/cassette recorder, safety belts and adjustable steering

wheel, air horn, with 4-point support fully floating

suspension and shock absorbers.

company information
Jinan Quanyu Import and Export Co., Ltd. is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce, and our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!






Certifications

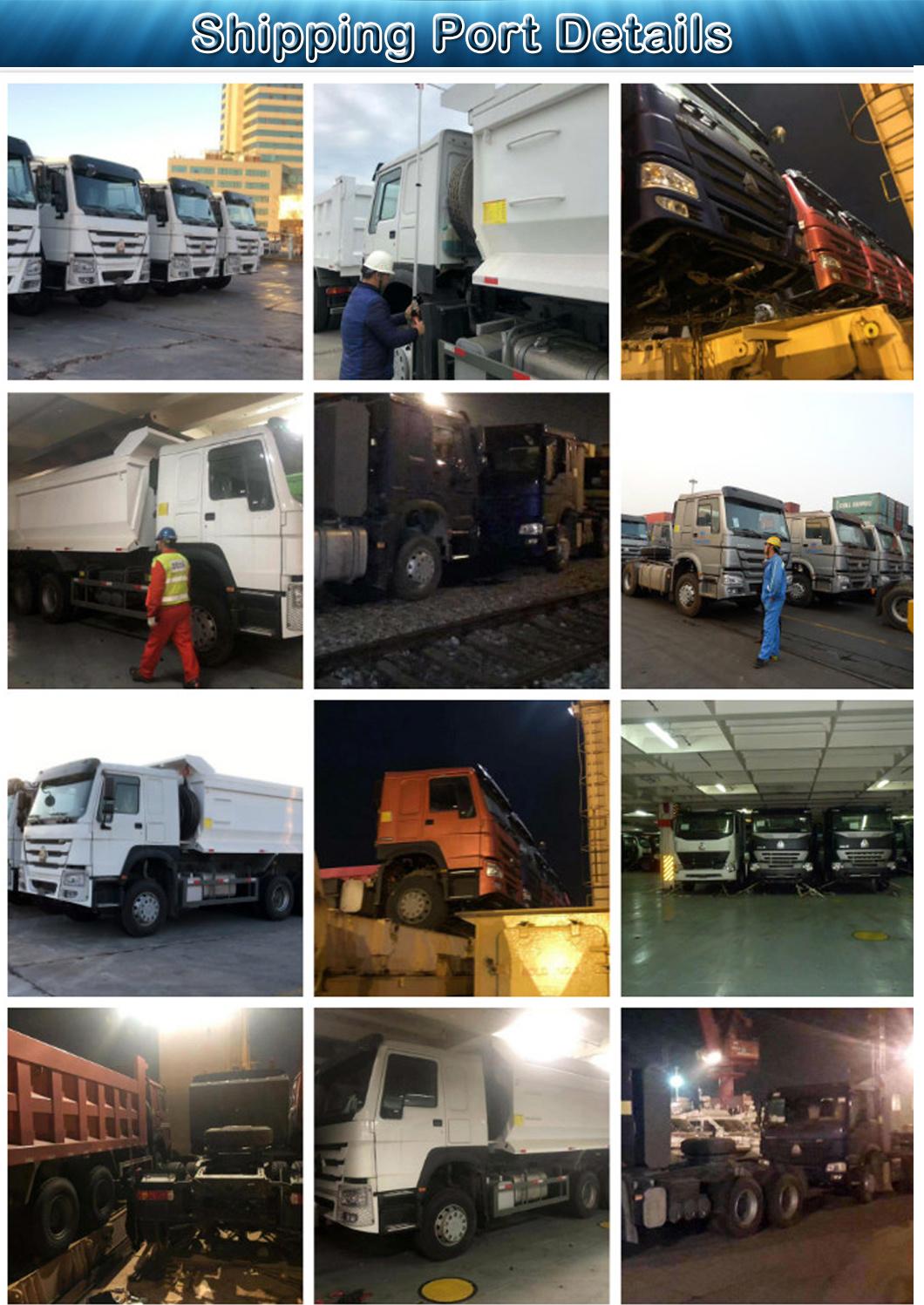

Heavy Trucks on board for shipping


Our Services

1. Factory direct supply: reliable quality and fast delivery;

2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;

3. Tracking service: lifelong

4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;

5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.

6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.

7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.



About Us

1 Factory price, more competitive than agent price.
2 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.

3 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
