Mobile Boat Lifting Gantry Crane for Dockyard

HENAN NYBON MACHINERY CO., LTD.
  • Certification:CE, ISO9001
  • Condition:New
  • Maximum Lifting Weight:150-200t
  • Maximum Lifting Height:15-20m
  • Operation Form:Air Operation+Ground Operation
  • Type:Shipbuilding Gantry Crane

Base Info

  • Model NO.:MBH
  • Main Girder Form:Double Girder
  • Transport Package:Special Waterproof Plastic Close for Expor, 40ot
  • Specification:200 Ton
  • Trademark:NYBON
  • Origin:Henan, China
  • HS Code:8426120000
  • Production Capacity:50 Sets,Year

Description

Basic Info.

Model NO. MBH Main Girder Form Double Girder Transport Package Special Waterproof Plastic Close for Expor, 40ot Specification 200 Ton Trademark NYBON Origin Henan, China HS Code 8426120000 Production Capacity 50 Sets/Year

Product Description

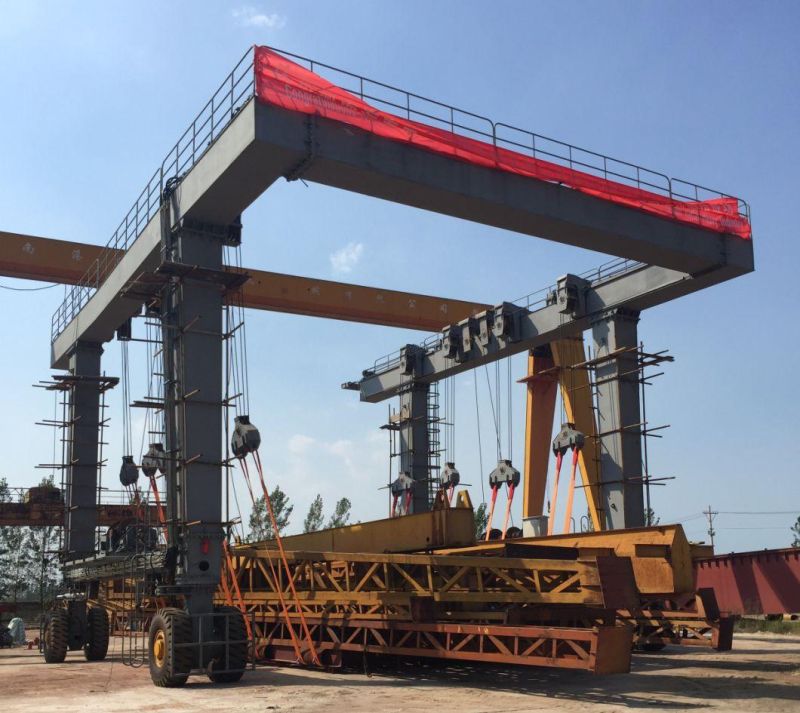

Mobile Boat Lifting Gantry Crane for Dockyard

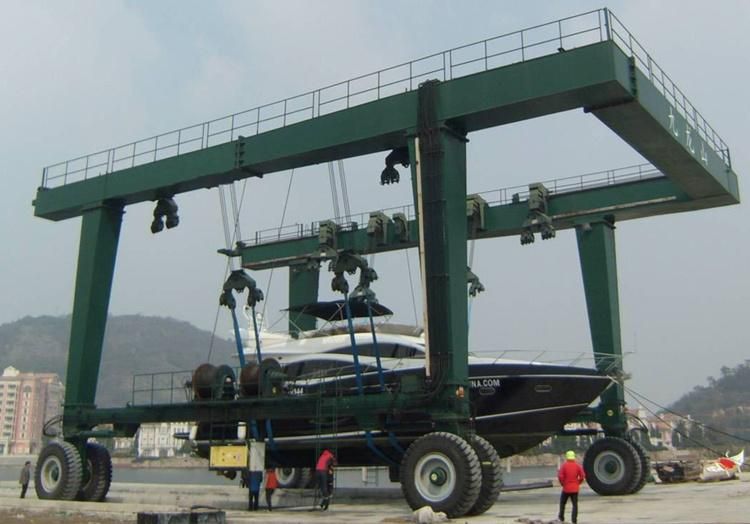

Mobile Boat lifting  Gantry Crane for dockyard

Mobile Boat lifting  Gantry Crane for dockyard is used for shipyard, yacht club, and water entertainment center, and navy,, mainly used
for boat repair and maintenance work, whose rated capacity is 25~800t, full hydraulic drive, used flexible lifting belt to pull
the boat bottom, multi-point lifting at the same time. Running and steering method is diverse, General speaking, it can be
straight running, skew running, cross running, yaw running and pivot running. Our clients can choose different configurations
according to their needs.

Mobile Boat Lifting Gantry Crane for Dockyard

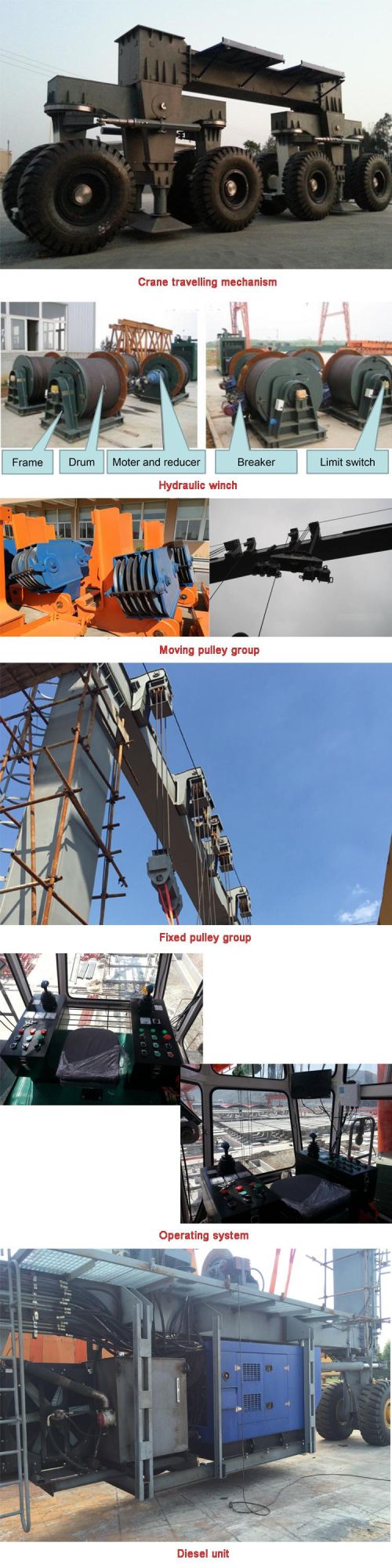

Parts show :

Mobile Boat lifting  Gantry Crane for dockyard is composed of leg, longitudinal beam, cross beam, hydraulic winch, crane travelling
mechanism, hydraulic pump station, diesel unit and so on.

Mobile Boat Lifting Gantry Crane for Dockyard

Product features:

1, It can realize 12 walking functions such as straight line, oblique line, transverse line, in-place rotation and Ackerman
turning etc.to meet the requirements of different working conditions. And it have 4% climbing ability;

2, It adopts all-hydraulic driving , built-in diesel generator to provide power, good liquidity;

3, Adopt the way that travelling mechanism is hinged to longitudinal beam to eliminate the stress caused by uneven road
surface when walking;

4, Lifting mechanism adopts the load-sensitive hydraulic system, the lifting point distance can be adjusted to keep the
simultaneous lifting of multi-lift points and output power according to the load conditions, so that the energy consumption of
the whole machine is reduced.

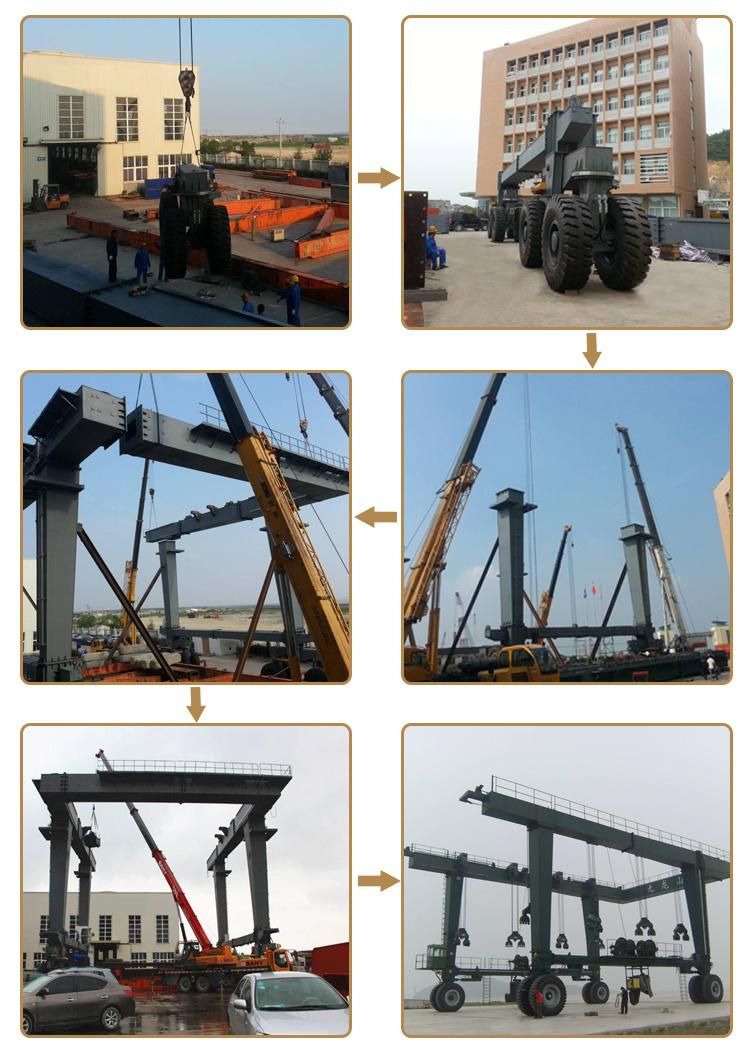

 Product installation

Mobile Boat Lifting Gantry Crane for Dockyard
Testing and debugging:

Mobile Boat Lifting Gantry Crane for Dockyard


Mobile Boat Lifting Gantry Crane for Dockyard
Mobile Boat Lifting Gantry Crane for Dockyard
Mobile Boat Lifting Gantry Crane for Dockyard
Mobile Boat Lifting Gantry Crane for Dockyard
Mobile Boat Lifting Gantry Crane for Dockyard

Mobile Boat Lifting Gantry Crane for Dockyard


1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual

period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;

Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty,

we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,

wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
