Factory Price Hoisting Equipment 260 Ton Xgc260 Crawler Crane 260t
Evangel Industrial (Shanghai) Co., Ltd.- Max. Lifting Height:73
- Rated Loading Capacity:260t
- Certification:ISO9001, CE
- Condition:New
- Warranty:1 Year
- Longest Boom + Jib:43 + 15.25
Base Info
- Model NO.:Xgc260
- Engine Model:Qsb5.9-C210 5.9
- Rated Power/Revolution Speed:154,2200 Kw, Rpm
- Boom Length:13-52m
- Swing Speed:0-1.9
- Transport Package:Regular Package
- Specification:12200*3000*3300kg
- Origin:China
- Production Capacity:50
Description
Basic Info.
Model NO. Xgc260 Engine Model Qsb5.9-C2105.9 Rated Power/Revolution Speed 154/2200 Kw/ Rpm Boom Length 13-52m Swing Speed 0-1.9 Transport Package Regular Package Specification 12200*3000*3300kg Origin China Production Capacity 50Product Description

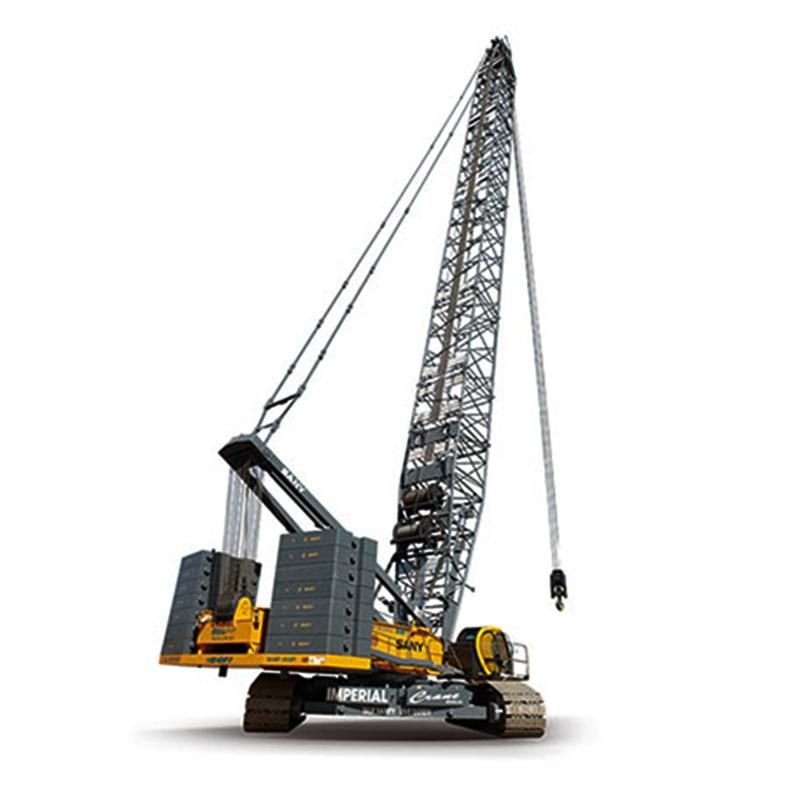

Hoisting Equipment 260 Ton XGC260 Crawler Crane priceXGC260 is the new generation crawler crane which is successfully developed by after QUY260. Built on multiple originally developed technologies, this "star product" will guide the technical innovation orientation in this industry, the overall crane technology reaches the world-leading level.
Item | Unit | Parameter |
Parameter Item | - | XGC260 |
Operation performance parameter | * | |
Max. rated lifting capacity for boom | (t) | 260 |
Max. rated lifting capacity for fixed jib | (t) | 105 |
Max. rated lifting capacity for luffing jib | (t) | 95 |
Max. load moment | (t.m) | 1450 |
Max. rated lifting capacity for tower jib | (t) | 95 |
Max. rated lifting capacity for boom single top | (t) | 28 |
Max. rated lifting capacity for special jib | (t) | 150.2( TBM jib working condition) |
Dimension parameter | * | |
Boom length | (m) | 24~93 |
Boom luffing angle | (°) | -3~85 |
Fixed jib length | (m) | 9~36 |
Tower jib length | (m) | 24~66 |
Max. dimension of single unit in transport state(L×W×H) | (m) | 13.2×3.0×3.2 |
Fixed jib offset angle | (°) | 10,30 |
Special jib length | (m) | 9~12 |
Speed parameter | * | |
Max. single line speed for hoist mechanism | (m/min) | 108 |
Max. single line speed for boom luffing mechanism | (m/min) | 2×42.5 |
Max. single line speed for jib luffing mechanism | (m/min) | 135 |
Max. slewing speed | (r/min) | 1.1 |
Max. travel speed | (km/h) | 1.2 |
Grade ability | (%) | 30 |
Mean ground pressure | (MPa) | 0.116 |
Max. single line speed for tower jib luffing mechanism | (m/min) | 135 |
Max. single line speed for superlift luffing | (m/min) | - |
Engine | * | |
Model | - | WP10G336E344 |
Engine power | (kW) | 247 |
Emission | - | National III |
Mass parameter | * | |
Overall crane mass | (t) | 239(main hook, 24m boom) |
Max. mass of single unit in transport state | (t) | 43(less than 37t after disassembly) |
