Zoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot Sale

Anhui Heavy and Light Industries International Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：Ztc300r532
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Weight：30ton
  • Max. Lifting Height：50m
  • Option：Color, Hook Weight
  • Certificate：ISO9001
  • Wheel in The Cab：Right Hand
  • Transport Package：Nude Package
  • Specification：12600*2500*3450
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8705109100
  • Production Capacity：50000pieces,Year

Description

Overview Product Description

Working    performanceMax.    rated lifting capacitykg30000 Max.    load moment of basic boomkN.m990 Max.    load moment of main boom(fully extended)kN.m624 Max.    load moment of basic boomm11.3 Max.    lifting height of main boomm42.1These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm50.0Working    speeds            Max.    hoist rope speed(Main winch)m/min120At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min120At    the 4nd   layerBoom    demrricking up times25 Boom telescoping out times84 Slewing  speedr/min0    -2.7 Driving    parametersMax.    driving  speedkm/h90 Max.    gradeability%42 Turning    diameterm≤20 Min.  ground clearancemm260 Oil    consumption per hundred kilometersL28 MassDeadweight    in driving conditionkg32510 Complete    vehicle kerb masskg32380 Front    axle loadkg6610 Rear    axle loadkg25900 DimensionsOverall    dimensions(L×W×H)mm13150×2500×3450 Outrigger    spread(L)m5.40 Outrigger    spread(W)mFully    extended:6.2,
     Intermediately    extended:4.25 Tail    slewing radiusmm3265 Main    boom lengthm10.7    - 42.0 Boom    angle°-1    - 80 jib    lengthm8.0 Offset°5,17,30

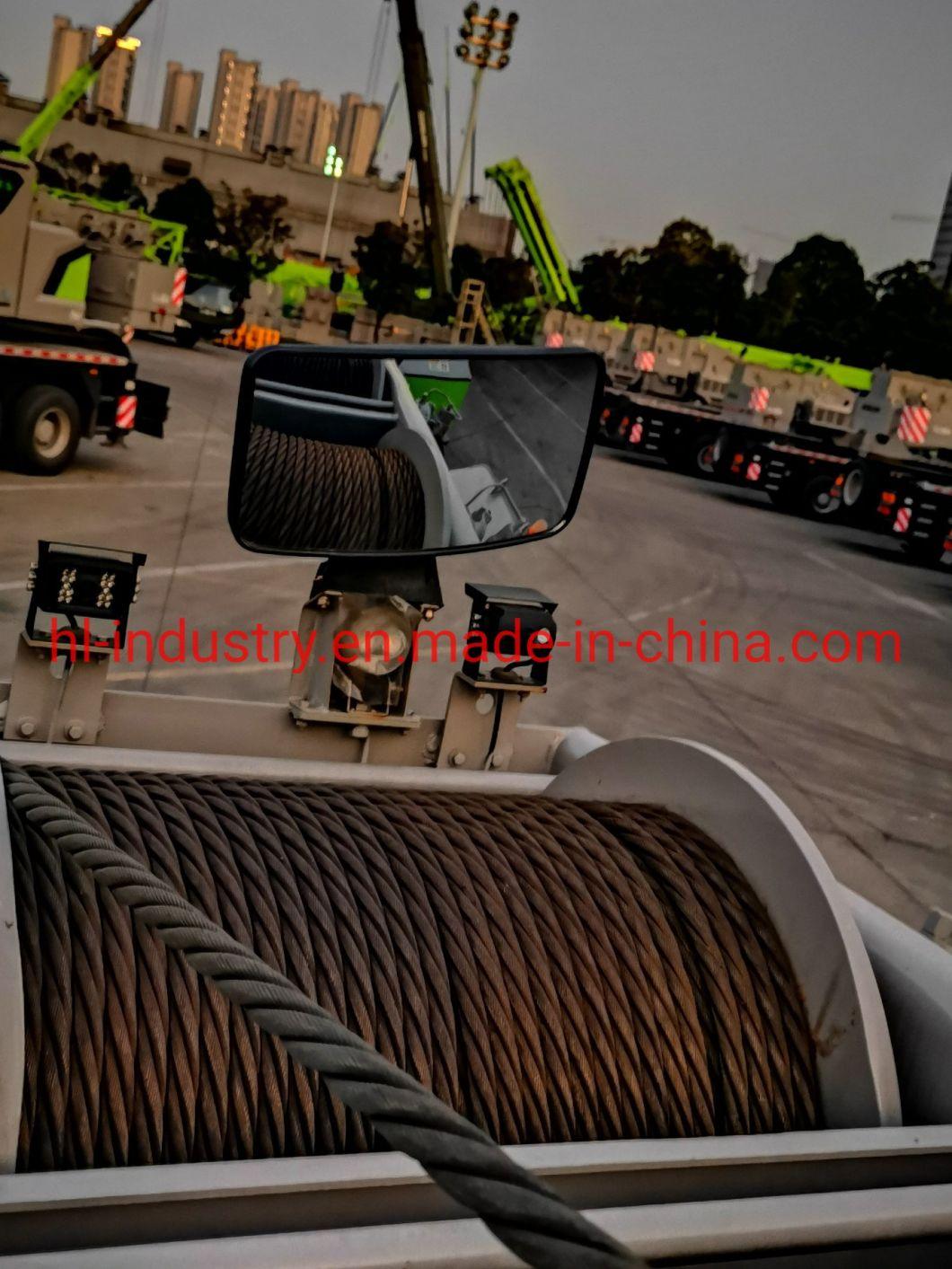

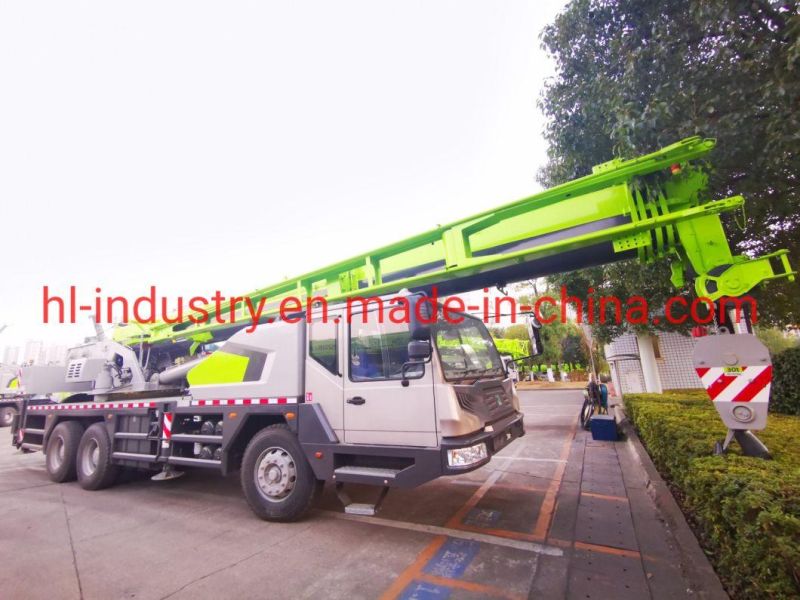

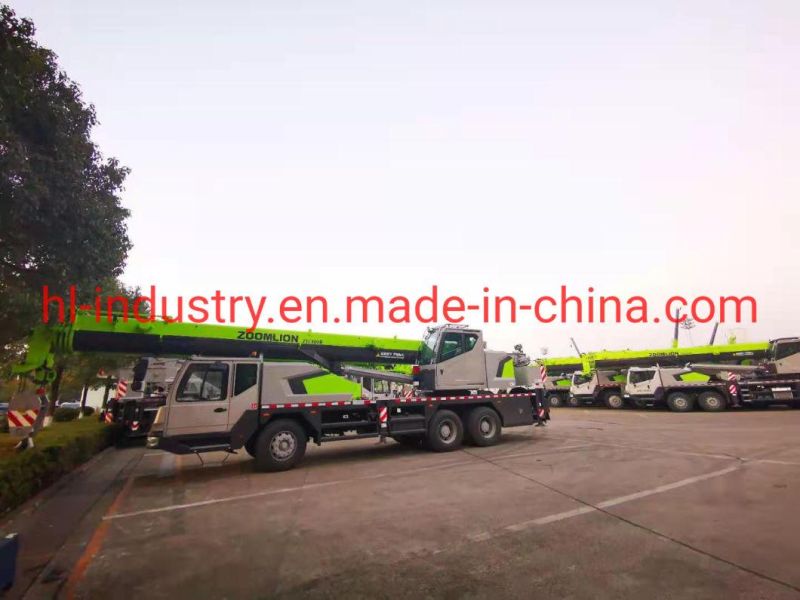

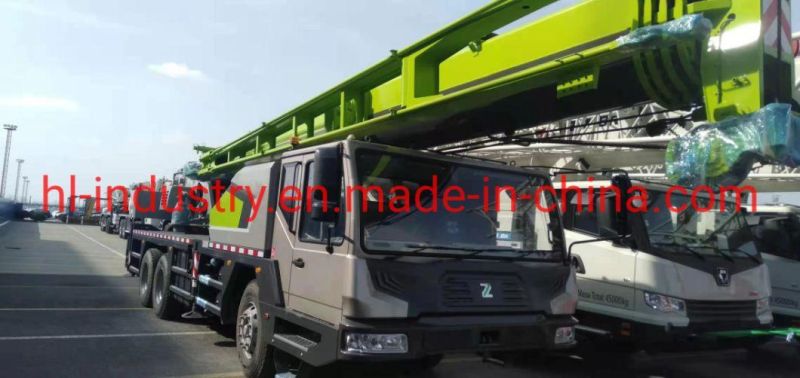

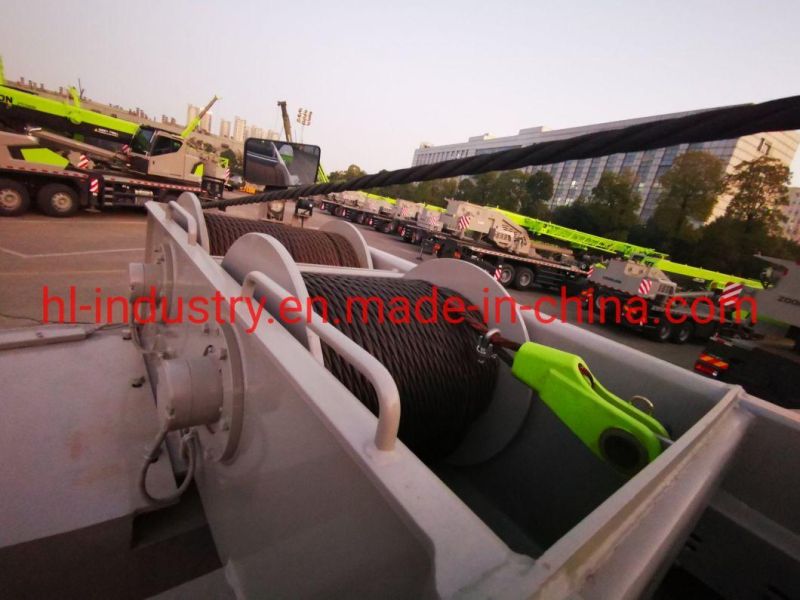

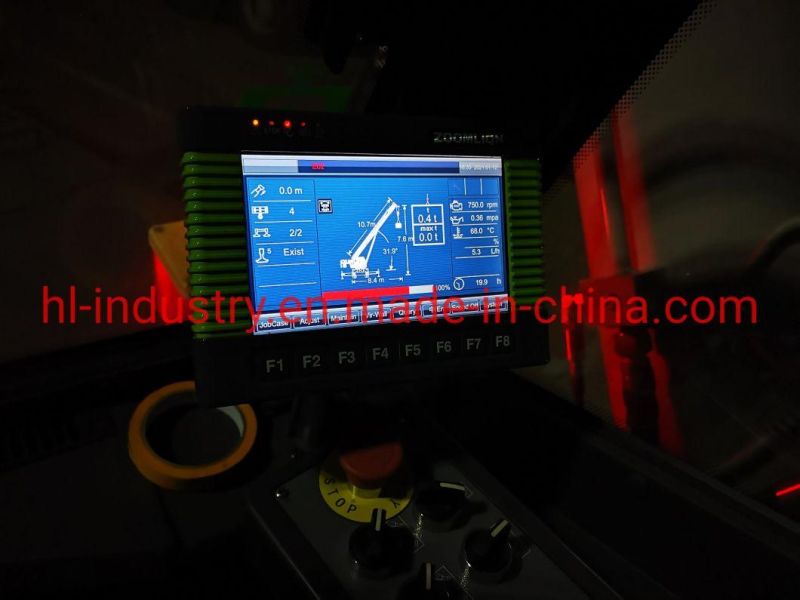

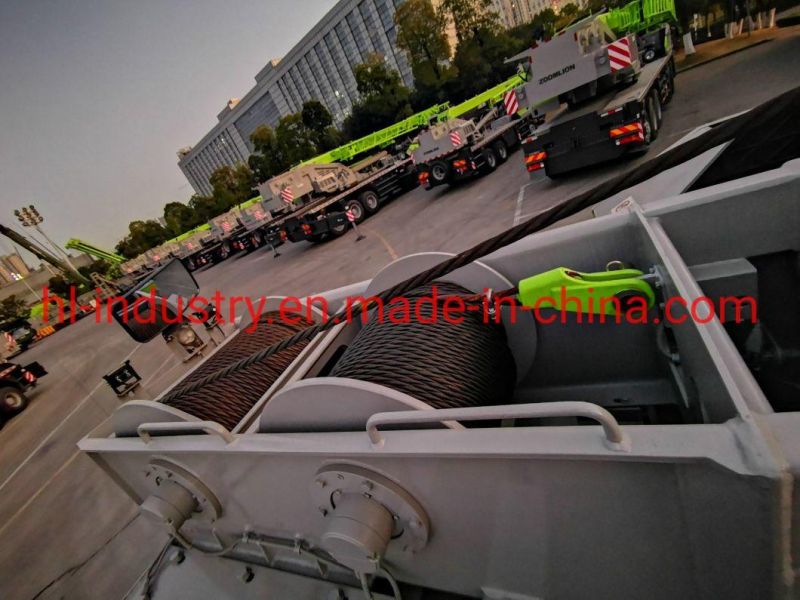

Detailed Photos






















Zoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot Sale



Zoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot SaleZoomlion Ztc300r532 30 Ton Hydraulic Mobile Crane Telescopic Boom Truck Crane Hot Sale

Our Advantages

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
