• Model NO.：Ztc600r562
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Straight Arm
• Service：Online and Local Service
• Parts：Provided with Filters
• Selling Point：High Operating Efficiency
• OEM：Supported with Color, Language etc
• Transport Package：Nude, Roro, Container
• Specification：13950*2800*3710
• Trademark：ZOOMLION
• Origin：China
• HS Code：8426990000
• Production Capacity：5000,Month

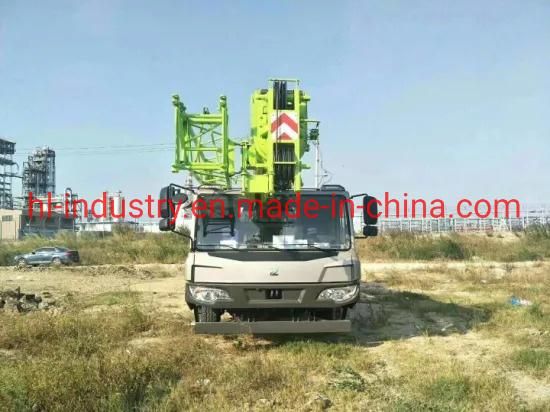

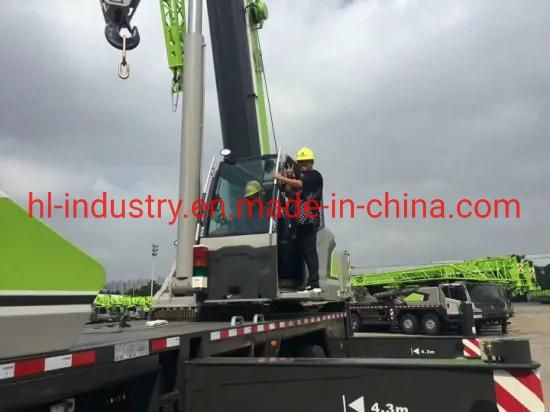

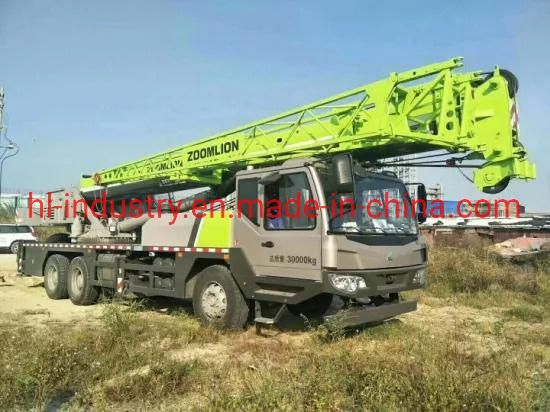

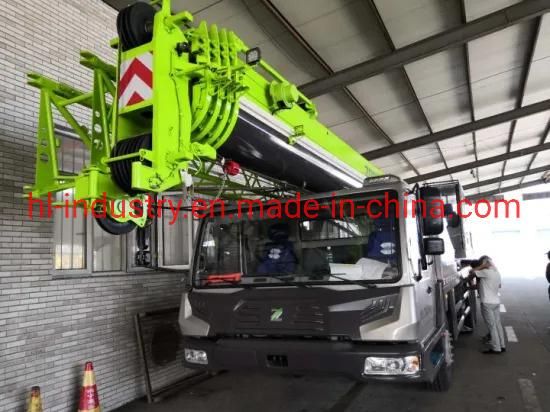

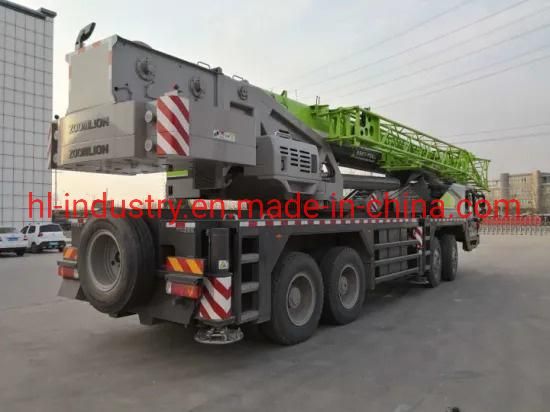

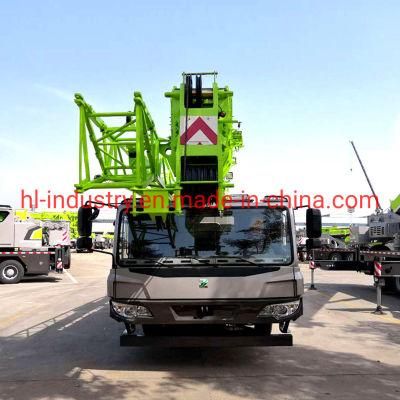

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg60000 Max. load moment of basic boomkN.m2033 Max. load moment of main boom(fully extended)kN.m1235 Max. lifting height of main boomm45.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm61.5 Working speeds             Max. hoist rope speed(Main winch)m/min125At 4th layerMax. hoist rope speed(Auxiliary winch)m/min125At 4nd layerBoom demrricking up times45 Boom telescoping out times95 Slewing speedr/min0-2.2 DrivingMax. driving  speedkm/h90 Max. gradeability%47 Turning diameterm≤23 Min.  ground clearancemm285 Oil consumption per hundred kilometersL43 MassDeadweight in driving conditionkg42000 Complete vehicle kerb masskg41805 Front axle loadkg16000 Rear axle loadkg26000 DimensionOverall dimensions(L×W×H)mm13950×2800×3710 Longitudinal distance between outriggersm5.92 Transversal distance between outriggersmFor completely extended: 7.10 m;  For half extended: 4.8 mTail slewing radiusmm3930 Main boom lengthm11.6 - 45.0 Main boom angle°-82 jib lengthm9.2, 14.6 Offset°5 / 25 / 45 Detailed Photos

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 7-20 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
