• Model NO.：STC160C
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Operating Weight：16000kg
• Rated Power：162 Kw ,2500 Rpm
• Rated Torque：800 N.M , 1200-1700 Rpm
• Emission Standard：Euro IV
• Transport Package：Nude Packing
• Specification：11189x2500x3560mm
• Trademark：S ANY
• Origin：China
• HS Code：87051091
• Production Capacity：20units, Month

Basic Info.

Model NO. STC160C Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Operating Weight 16000kg Rated Power 162 Kw /2500 Rpm Rated Torque 800 N.M / 1200-1700 Rpm Emission Standard Euro IV Transport Package Nude Packing Specification 11189x2500x3560mm Trademark S ANY Origin China HS Code 87051091 Production Capacity 20units/ Month

Product Description

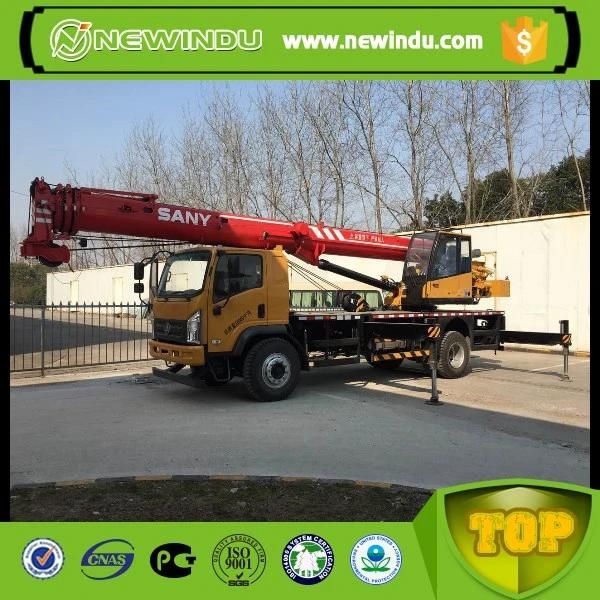

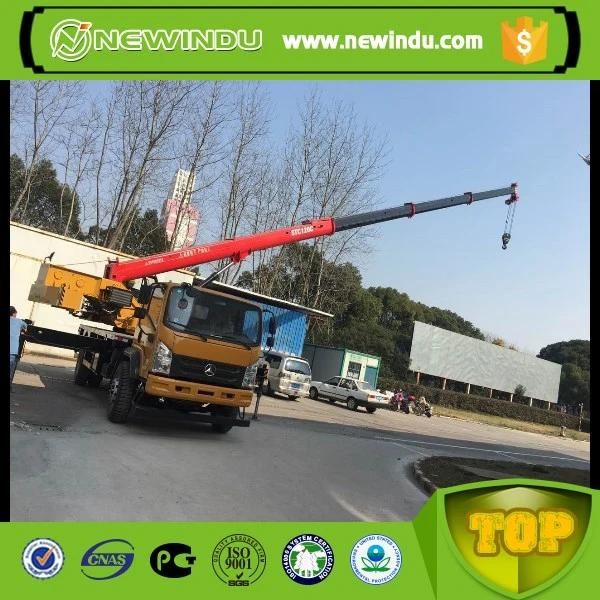

SAN Y STC160C 16ton Truck Crane
with Euro IV stage/Weichai engine/Crane air-condition

Max. Lifting Capacity:16t
Boom Length:32m
Overall Weight:25000kg


Main Character:

Powerful load capacity

With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.

Strong travelling capacity

High power 162kW engine + Fast 8-gear gearbox, it is more powerful and more mobility.

Innovative layout

Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.

Diversified matching options

Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;

Regional matching: Engine emissions complies with different standards;

Parameters

Dimension	Unit	STC160
Overall length	mm	12000
Overall width	mm	2500
Overall height	mm	3640
Power
Engine		Shangchai
Engine rated power	kW/(r/min)	180/2300
Engine rated torque	N.m/(r/min)	960/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	10.5
Max. grade ability	%	40
Fuel consumption for 100km	L	28
Main performance
Max. rated total lifting capacity	t	16
Base boom	m	10.5
Fully extended boom	m	32
Fully extended boom+ jib	m	40
Working speed
Boom luffing time	s	50
Boom full extension time	s	65
Max. swing speed	r/min	2.1
Max. speed of main winch (single rope) (no load)	m/min	105
Max. speed of aux. winch (single rope) (no load)	m/min	105
