Dongfeng HOWO 8X4 Heavy Duty 10tons to 20tons Truck Mounted Crane with Telescopic Boom
CLW Heavy Industry Co., Ltd.- Warranty：One Year for Three Parts (Engine, Gearbox, Axles)
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：>16t
- Shaft Number：4
Base Info
- Model NO.：CLW
- Crane Jib：Three-Arm
- Type：Straight Arm
- Truck：Heavy Duty Crane Truck
- Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
- Steering Wheel：LHD or Rhd
- Color：Red White Blue Yellow Option
- Max. Loading Weight：5tons 8tons 10tons 15tons 20tons 25tons
- Crane Material：High Quality Q235 Carbon Steel
- Working Platform：360 Degre Turning(Left or Right), H-Shape Legs 360
- Rated Lifting Moment：6t.M 8t.M 10t.M
- Market：Global
- Transport Package：Naked with Wax
- Specification：ISO
- Trademark：CLW
- Origin：Hubei, China
- Production Capacity：800sets,Month
Description
Chassis
Curb weight(kg)
10000
Wheelbase(mm)
5825+1350
Dimensions(mm)
11970×2500×3850
Overhang (front/rear) (mm)
1500/3295
Approach/Departure angle(°)
16/8.5
Axle Load(kg)
7000/18000
Max. driving speed(km/h)
100
Brand
SINOTRUK
Model
HOWO
Tire
Number
10pcs with one spare tire
Specifications
12R22.5
Clutch
Reinforced diaphragm clutch
Gear box
10 Forwards and 2 Reverses
Cab
It can accommodate three people
Engine
Model
WD615.47
Displacement(ml)
9726
Power(kw)/Horsepower/(HP)
273/371
Emission standard
Euro 2
Brakes
Service brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear
Power steering, hydraulic steering with power assistance
Remarks
With Air conditioning
Upper Body
Box
Max. Capacity(T)
25T
Tank material
High quality Q235 carbon steel

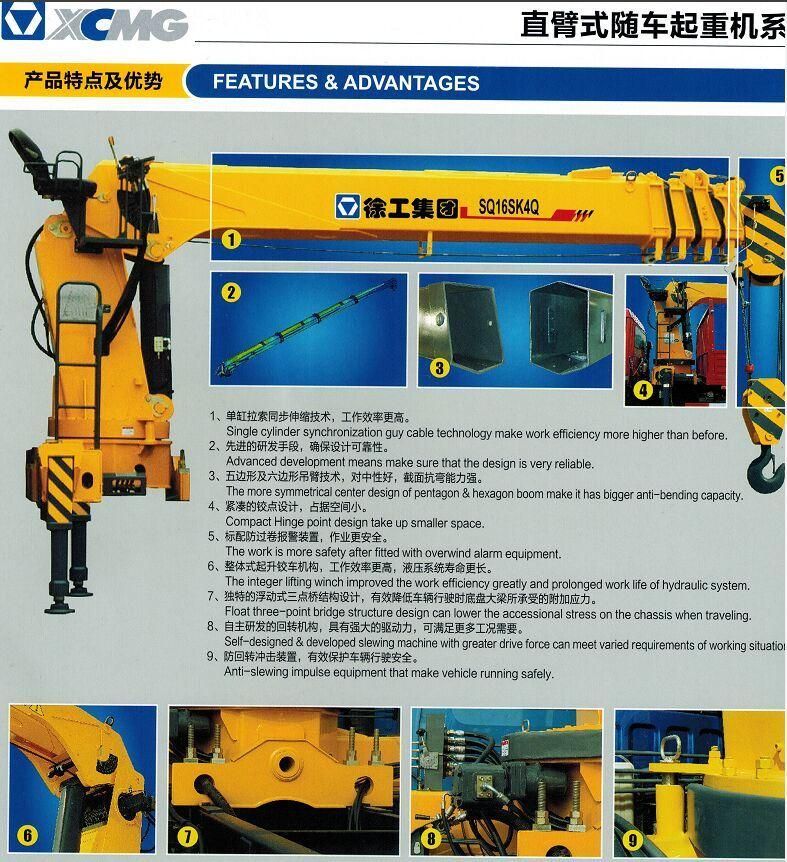

Crane
Working Platform
360°turning(left or right), H-shape legs 360°
Material
Q235 Carbon steel
Extendable boom section
4
Boom Type
Straight boom type/Knuckle boom type
Max. Lifting Weight(kg)
12000

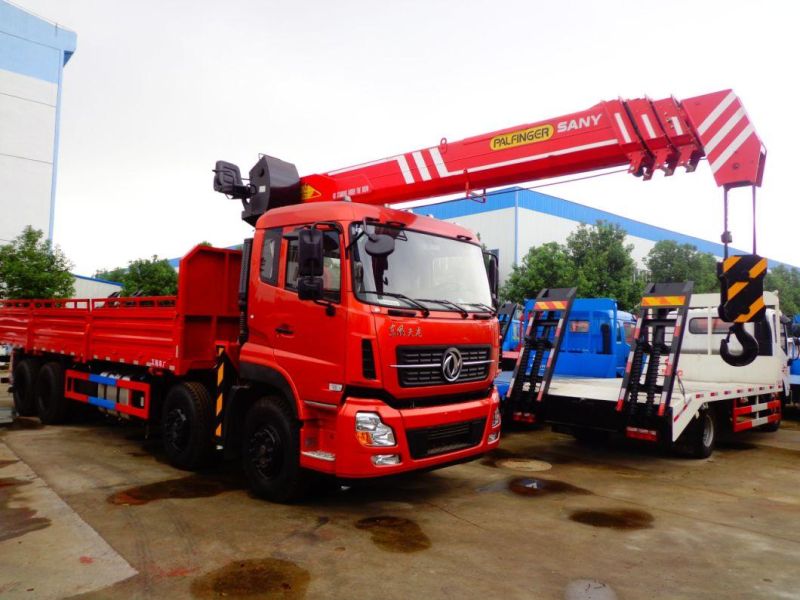

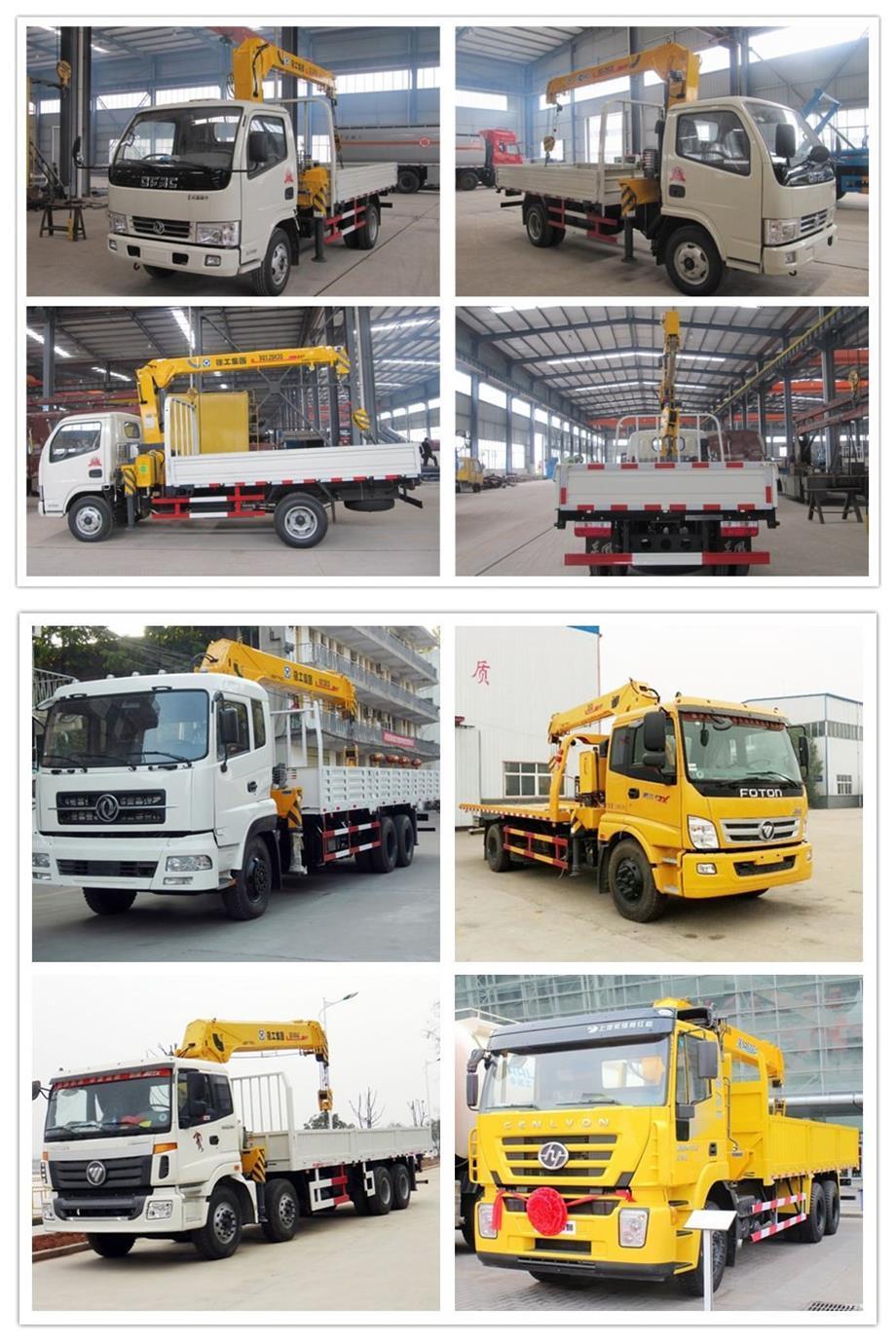

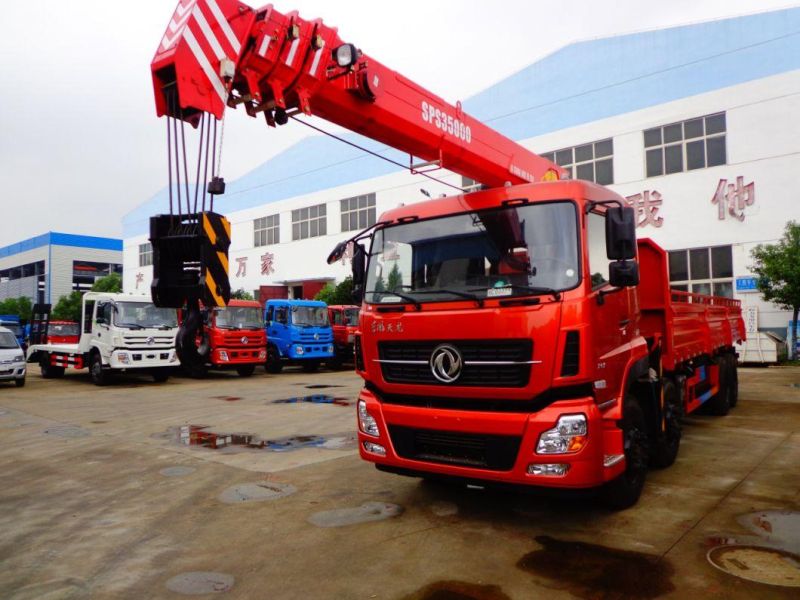

Product photo
Company Information
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.
1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.
2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.
3. More than 300 type of products supply.
4. Our sales volume of 2015 reach US$300 million.
Packing and Shipping
Our Services
1. One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.
