• Model NO.：SGZ5081
• Engine Power：120 HP
• Max Torque：324 N.M
• Gearbox：5-Speed
• Application：Workshop Usage, Container Usage, Mineral Area
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Power Source：Hydraulic
• Moving Type：Wheel
• Transport Package：Waxed Before on Board
• Specification：3.2 ton
• Trademark：DFAC
• Origin：China
• HS Code：8704
• Production Capacity：1000 Sets Per Month

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7100×2300×3150Wheel base  (mm)3800Wheel track  (front/rear) (mm)1770/1586Weight in KGSTare Weight4800payload7000Front axles loading capacity1x4000Rear axles loading capacity1x8000Max. driving speed(km/h)90EngineBrandCYEngine Capacity (cc)3856Type4-cylinder in-line, turbochargedHorse Power(HP)120Emission standardEuro IIMax Torque (N.m)324Gearbox5 Forwards gear & 1 reverse gearSteering Gearpower steeringTire7.50-16 tyre with one spareCargo Body4350 x 2050 x 550 mmCrane3.2 ton telescopic crane, max working range 5.35 mWorking Radius (m)2.12.53.05.35Lifting capacity (kg)320025001850950
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers

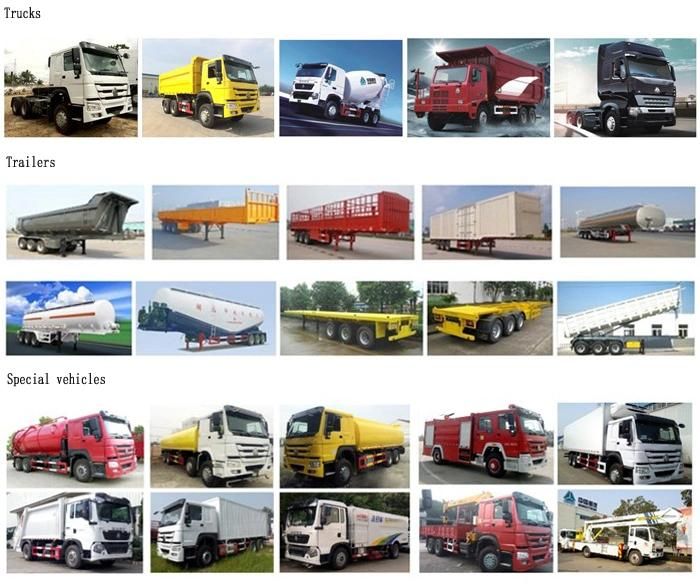

Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
    T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
    L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T

Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

About us
SINOTRUK is the leader in Chinese truck industry, founded in 1956, successively cooperated with Many Europe top manufacturers like Styre,Volvo and MAN. In 2007,we listed in the red-chip Hong Kong ,Germany MAN is our sencond largest share holder. Through centuries development, we have owned 20 subsidiaries in China, our products exported all around the world.





Other products




Welcome you come to china and visit our factory .

Rita Du
SINOTRUK Hubei Huawin Special Vehicle Co.,Ltd
No.9 new industrial base Zengdou, Suizhou city, Hubei province, China


Web: http://sinotruk-huawin.en.made-in-china.com
