• Model NO.：hydraulic truck crane
• Type：Folding
• Overall Dimension：15600X3000X3850mm
• Wheel Base：1420+2420+1800+1420+1505mm
• Track：2074,1834,1834mm
• Max. Travel Speed：90km,H
• Min. Travel Speed：3km,H
• Min. Turning Diameter：24m
• Min. Ground Clearance：300mm
• Max. Grade Ability：40%

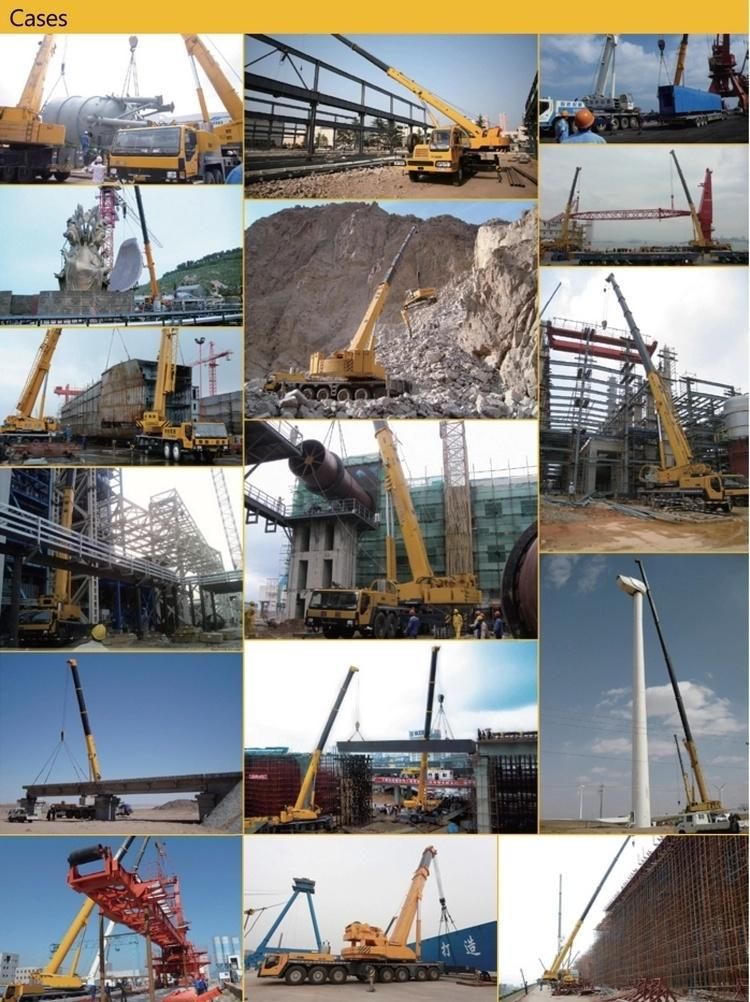

• Application：Construction Lifting
• Engine Rated Power：174,2300 181,2300 180,2200 174,2300kw,(R,Min)
• Engine Rated Torque：1112,1400n.M,(R,Min)
• Approach Angle：20degree
• Departure Angle：14degree
• Braking Distance：Less Than10m
• Max. Total Rated Lifting Capacity：100t
• Transport Package：Nacked
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000PCS,Year

WeighetOperation mass in travel state1420+2420+1800+1420+1505mmAxle load54900kg1st axle8000kg2nd axle8000kg3rd axle7900kg4th axle12000kg5th axle12000kg6th axle7000kgPowerSuperstructure engineTAD720VE/TAD750VE/OM906LAE2/3/BF6M1013EC Superstructure engine rated output174/2300 181/2300 180/2200 174/2300KW/(r/min)Superstructure engine max torque875/1400 1050/1500 900/1200-1600 875/1400N.m/(r/min)Carrier engineISME420.30 MO460LA.E3A/1 WP12.460N Carrier engine rated output306/1900 360/1800 338/1900KW/(r/min)Carrier engine max torque2010/1200 2200/1300 2100/1000-1400 TravelApproach angle20°Departure angle14°Braking distance(at 30km/h)≤10mMax.grade ability40%Min.turning diameter24mMin.ground clearance300mmFuel consumption per 100km70LLifting PerformanceMax.total rated lifting capactiy100tMin.rated working radius3mAt counterweight4200mmAt auxilary winch4590mmBase boom3450(4m×88t)kn.mFull-extended boom1925(2.4m×8.3t)kn.mFull-extended boom+Jib708(25.8×2.8t)kn.mLongitudinal distance7.56mLateral distance7.6mBase boom13.5mFull-extended boom50.9mFull-extended boom+Jib70.4mBase boom13.5mFull-extended boom51mFull-extended boom+Jib51+18.1+4mWorking speedJib offset0,15,32°3Boom raising75sFull-extending160s
