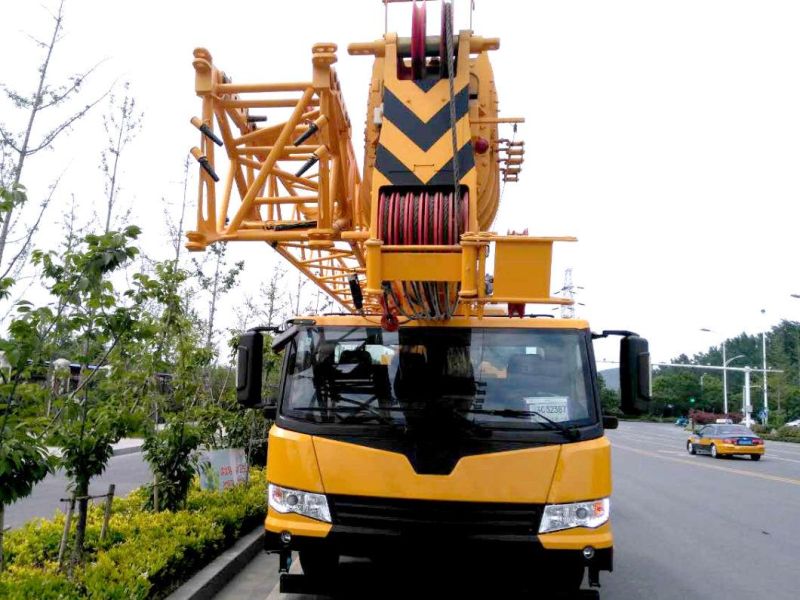

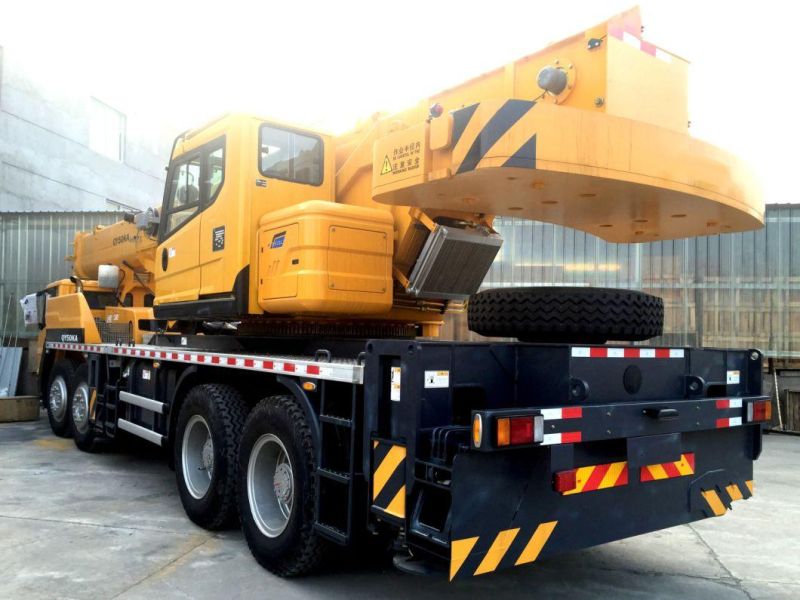

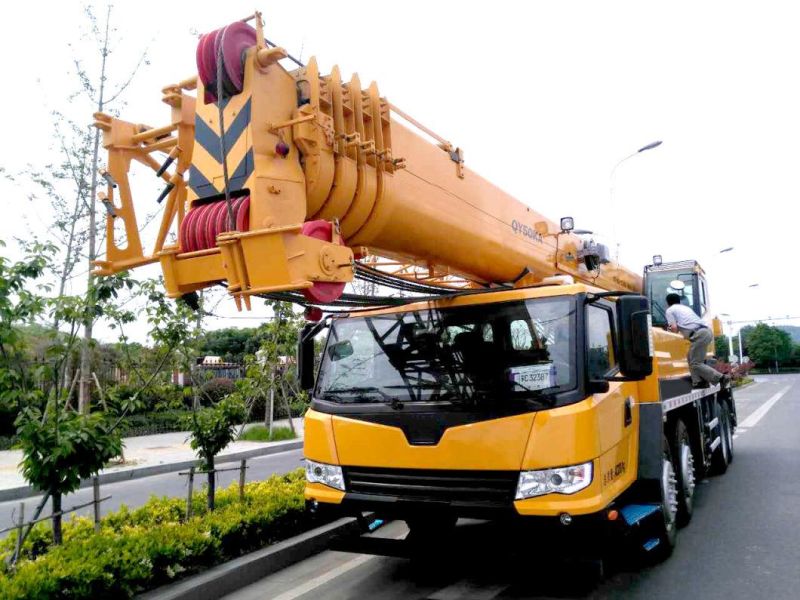

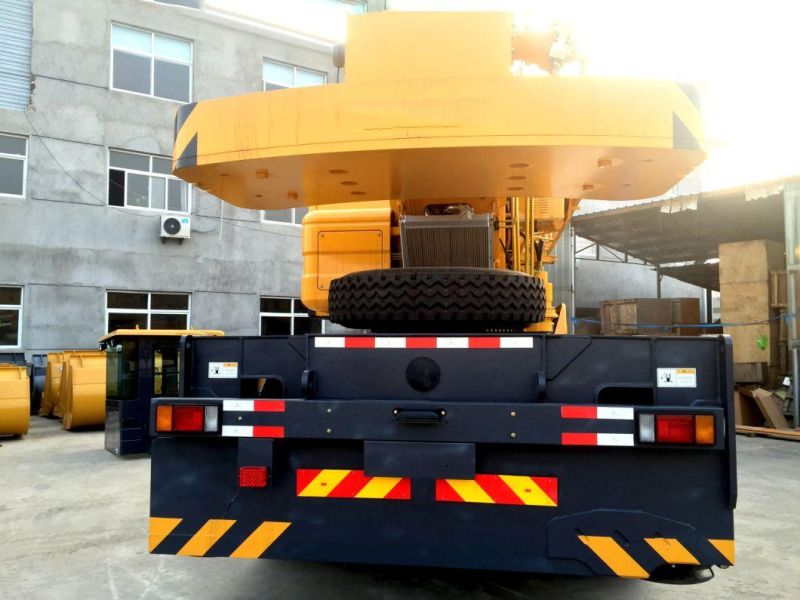

• Model NO.：QY50KD
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Base Boom：11.3m
• Fully Extended Boom：42.7m
• Fully Extended Boom+ Jib：57.7m
• Total Weight in Travel：41000kg
• Lateral Outrigger Span：6.9m
• Transport Package：Nude Package
• Specification：13750*2800*3520
• Origin：China
• HS Code：8705109100
• Production Capacity：1000units,Month

DimensionUnitQY50KA/QY50KDOverall lengthmm13750Overall widthmm2800Overall heightmm3520Weight  Total weight in travelkg41000Front axle loadkg15000Rear axle loadkg26000Power  Engine model WD615.334(domestic III)Engine rated powerkW/(r/min)247/2200Engine rated torqueN.m/(r/min)1350/1400Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm291Approach angle°17Departure angle°11Max. grade ability%40Fuel consumption for 100kmL45Main performance  Max. rated total lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailm3.482Max. lifting torquekN.m1764Base boomm11.3Fully extended boomm42.7Fully extended boom+ jibm57.7Longitudinal outrigger spanm5.91Lateral outrigger spanm6.9Working speed  Boom luffing times88Boom full extension times180Max. swing speedr/min≥2.0Max. speed of main winch (single rope) (no load)m/min≥110Max. speed of aux. winch (single rope) (no load)m/min≥110
