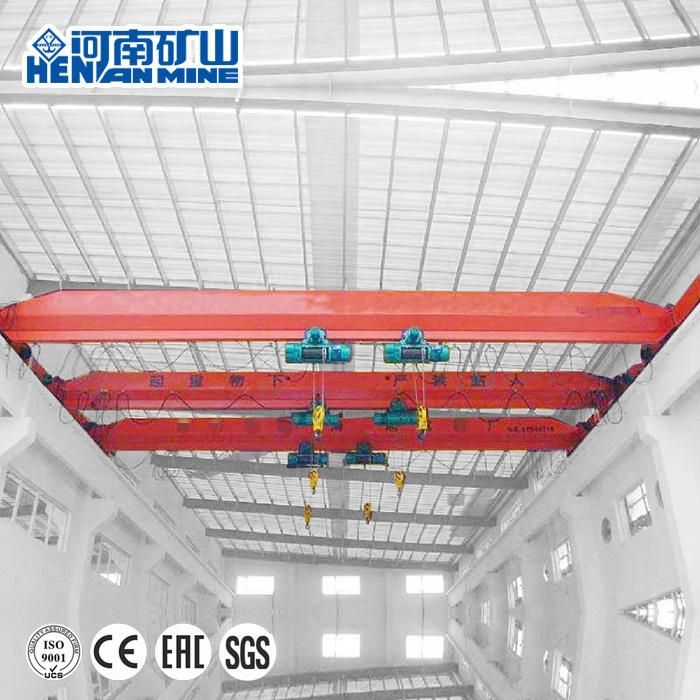

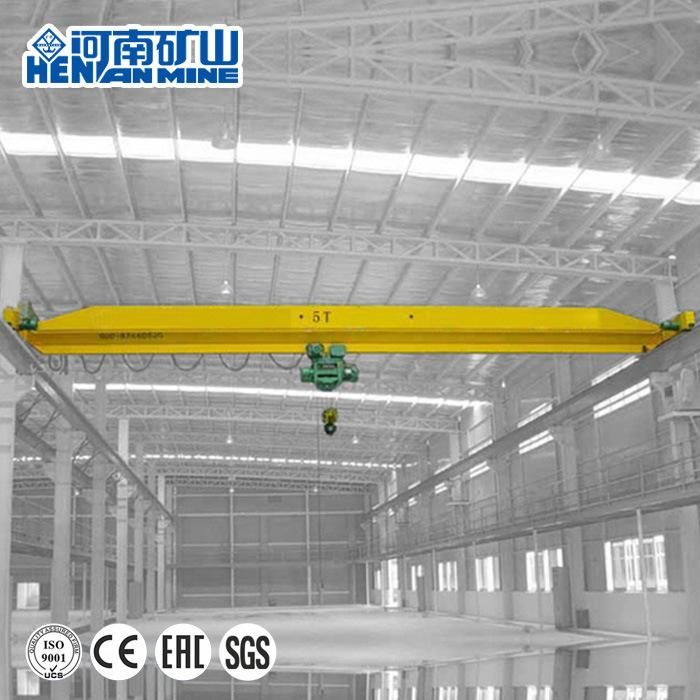

Henan Mine High Quality Single Girder 1~20ton Overhead Crane

Henan Kuangshan Crane Co., Ltd.
  • Certification：GS, CE, ISO9001: 2000, GOST
  • Condition：New
  • Operation Form：According to Your Requirements
  • Maximum Lifting Height：Max.30m
  • Maximum Lifting Weight：1~20ton
  • Main Girder Form：Single Girder

Base Info

  • Model NO.：LDA
  • Type：Ordinary
  • Weight Overload Protection Device：Include
  • Voltage Lower Protection Function：Include
  • GB/T 19001-2000 Idt ISO 9001: 2000：Pass
  • Limited Switch：Include
  • Painting Color：According to Your Demand
  • Current Overload Protection System：Include
  • GB/T 28001-2001, Ohsas18001: 1999：Pass
  • Electric Hoist Double Limit：Include
  • Sling Type：Wire Rope
  • Color：According to Your Demand
  • Transport Package：Packed by Plywood Crate and Plastic Woven Cloth.
  • Specification：China National Standard
  • Trademark：KUANGYUAN
  • Origin：Xinxiang, Henan Province
  • HS Code：84261120
  • Production Capacity：46000 Sets,Year

Description

16, 20TSpan(M)7.5-22.5MCrane travelling mechanismTravelling speed(m/min)20304560752030456075Reducer ratio58.7839.3826.3619.3715.8858.7839.3826.3619.3715.88MotorModelZDY21-4ZDY21-4ZDY122-4ZDY131S-4ZDY112L1-4Power(kw)2× 0.82× 1.51.5× 22.2× 22.2× 2Rotation (m/min)13801380Lifting mechanism
(electric hoist)& electric hoist travelling mechanismElectric hoist modelCD1/MD1MD1/HCLifting speed (m/min)8, 8/0.8 7, 7/0.73.5 3.5/0.35Lifting height (m)6, 9, 12, 18, 24, 3012, 18, 24, 30Travelling speed (m/min)20(30)20(30)MotorTaper Squirrel-cage typeTaper Squirrel-cage typeWork dutyA3-A5Power supply380V 50HZ three phase (By your demand)Wheel diameter270mm370mmWidth of trail37-70mm37-70mm
