• Model NO.：QDY
• Type：Metallurgical
• Item：Ladle Crane
• Girder：Box Type
• Lifting Tool：Plate Hook
• Application：Steel Smelting Plant
• Sling Type：Wire Rope
• Power Source：Electric
• Transport Package：Packed by Plywood Crate and Plastic Woven Cloth.
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261930
• Production Capacity：18, 000 Sets,Year

Lifting weight(t)

5

10



16/3.2

20/5

32/5

50/10

74/20

Span(m)

10.5~31.5

Max Lifting height(m)

16

16

Main hook

16

12

16

12

22

Auxiliary

hook

18

14

18

16

24

Working class

A6



Speed

(m/min)

Hoisting

15.5

10.4

Main

10.7

9.8

7.8

7.8

6.1

Auxiliary

14.6

15.5

15.5

10.4

9.7

Traveling

of crab

37.2

43.8



44.6

44.6

42.4



33.8

Traveling

of trolley

92. 7

93.7

92. 7

93.7

86.5



76/89

76/89

89

75.3

75.3

75/76.6

67.3

Motor

(type/kw)

Hoisting

15

22

Main hook

37

45

55

75

90

Auxiliary

11

15

15

22

37

Traveling

of crab

1.5

2.2



3.7

3.7

7.5

11

15

Traveling

 of trolley

2*5.5

2*7.5

2*5.5

2*7.5



    2*7.5/2*11

2*7.52*11

2*11

2*11

2*15

2*22

Steel track

recommended

trolley

18kg/m

24kg/m

43kg/m

crane

43kg/m

43kg/m or QU70

QU70

QU80

QU100

Power source

3P   A.C 50Hz 380V

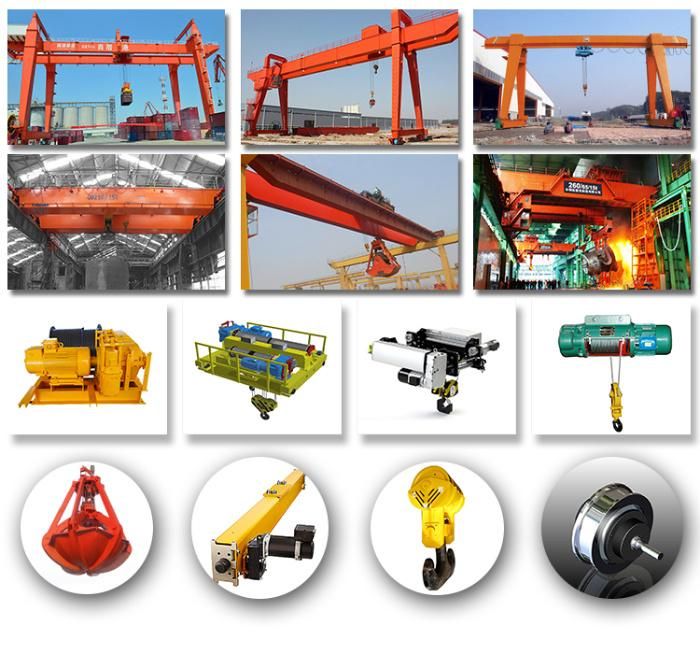

Main Products
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge cable trolley crane, overhead cable trolley crane price 20 ton 5ton, eot cable trolley crane, door cable trolley crane, universal gantry cable trolley crane, rubber tyre and rail mounted container gantry cable trolley crane, four link type portal cable trolley crane, quayside container cable trolley crane, cable trolley crane, cable trolley crane hook, mining grab cable trolley crane, gantry cable trolley crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic cable trolley crane technical requirements.

Advantages
The 2,700-plus-member factory covers over680,000 square metersand has a total asset of660 million CNY. The 1,200-plus equipment enable the company to independently conduct over20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible forR&Dand production of all the products. The products have passedCE SGS TUV BVandCU-TRverification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
Packaging & Shipping

Rave Reviews

FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.


A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.


A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.


A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
