Heavy Duty Straight Arm Crane Mounted Truck Sq16SA4
XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.- Condition：New
- Maximum Lifting Height：20-25m
Base Info
- Model NO.：SQ16SA4
- Maximum Lifting Weight：14-16t
- Shaft Number：No
- Crane Jib：Four-Arm
- Type：Straight Arm
- Color：According to Customer Requirements
- Product Name：Heavy Duty Straight Arm Crane Mounted Truck
- Boom Type：Telescopic Boom 4 Sections
- Boom Length：18.65m
- Tip Load：1200 Kg
- Materials：Hq60,Hq70,Q345
- Boom Cross Profile：Hexagon
- Self Weight：6500 Kg
- Rotation Angle：360 Continuous
- Installation Space：1400mm
- Transport Package：Wooden Cases
- Specification：2500*1200*2680MM
- Trademark：BOB-LIFT
- Origin：Jiangsu, China
- HS Code：8426910000
- Production Capacity：1500 Sets,Year
Description

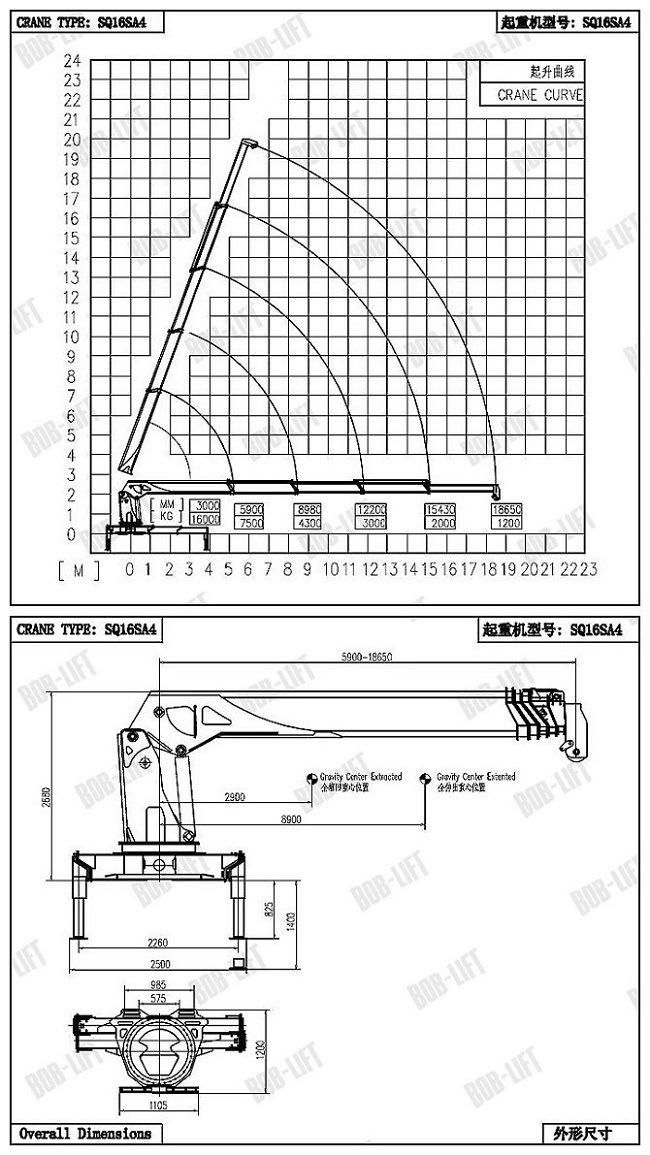

straight arm craneMax lifting capacity ton 16 Max lifting moment ton.m 45 Recommend power KW 40 Hydraulic system flow L/Min 80 Hydraulic system pressure Mpa 26 Oil tank capacity L 260 Installation space mm 1400 Self weight kg 6500 Rotation angle ° 360 Continuous

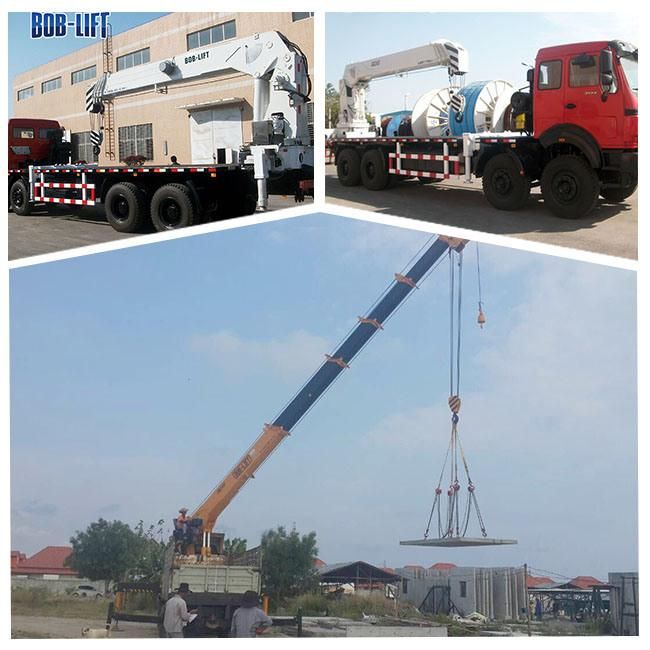

3).Product photos
4).Shipping details
5).Certificates

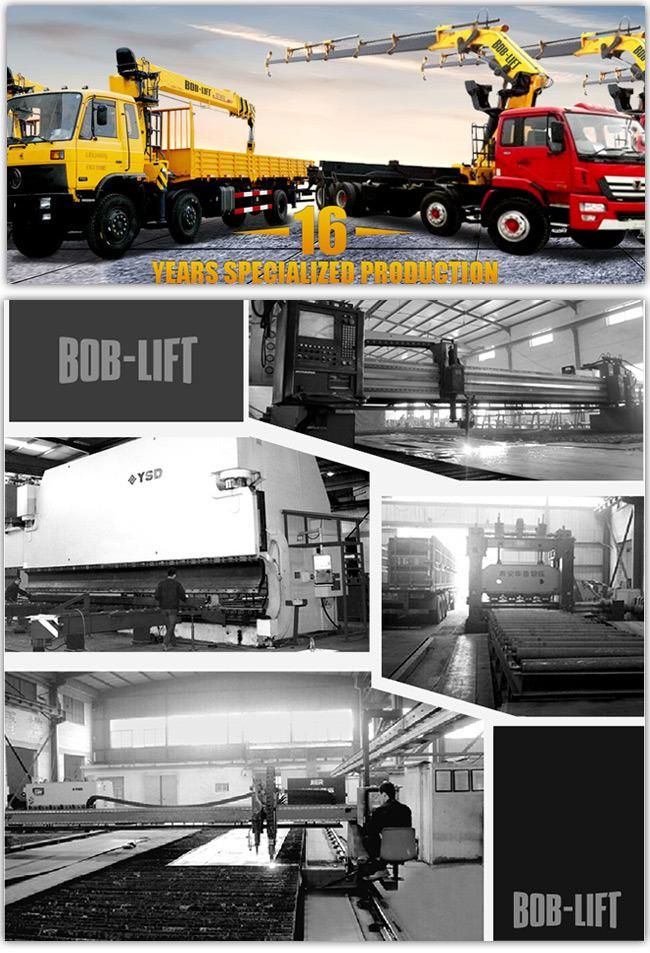

6).Our factory
