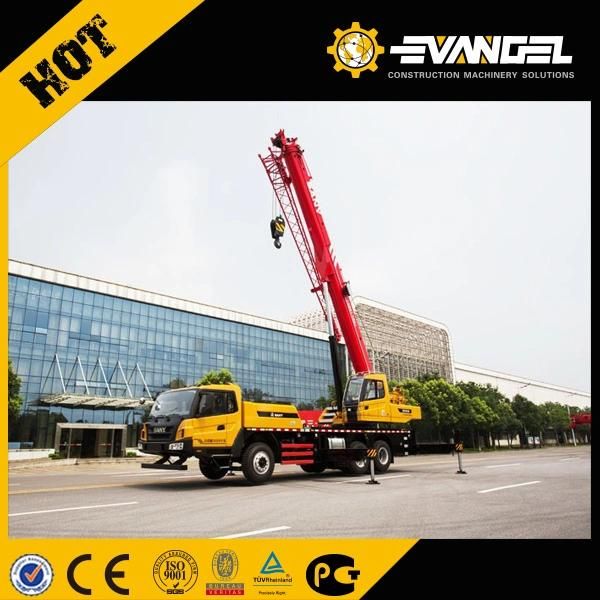

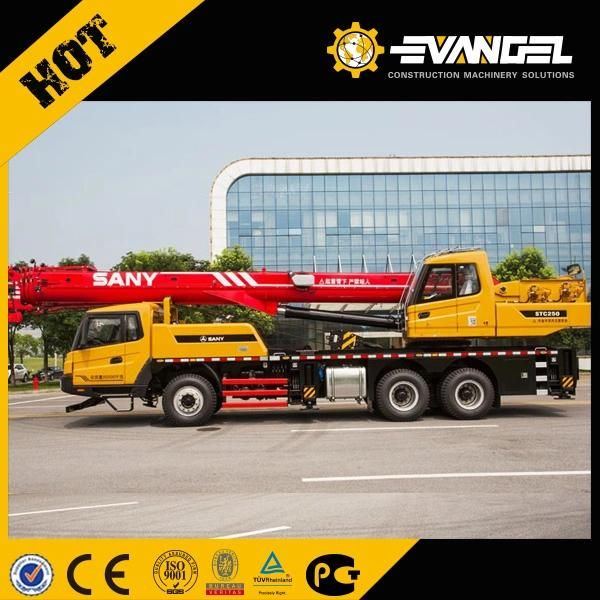

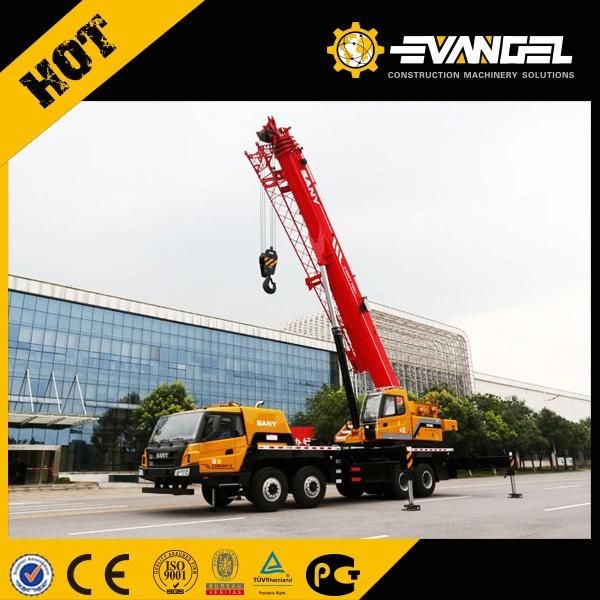

30ton Hydraulic Truck Crane with Pilot Control
Evangel Industrial (Shanghai) Co., Ltd.- Certification:CE, ISO9001, ISO9001: 2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:4
- Crane Jib:Four-Arm
Base Info
- Model NO.:STC300S
- Type:Folding
- Lifting Capacity:30t
- Max.Lifting Height:48.5m
- Overall Dimensions:12850mm*2500*4590mm
- Dead Weight in Travel State:33000kg
- Moving Type:Wheel
- Max.Output Torque:1050kn.M
- Transport Package:Roro or Bulk Break Shipment
- Specification:CE
- Trademark:S ANY
- Origin:Hunan, China
- HS Code:87051091
- Production Capacity:100 Units Per Month
Description
Basic Info.
Model NO. STC300S Type Folding Lifting Capacity 30t Max.Lifting Height 48.5m Overall Dimensions 12850mm*2500*4590mm Dead Weight in Travel State 33000kg Moving Type Wheel Max.Output Torque 1050kn.M Transport Package Roro or Bulk Break Shipment Specification CE Trademark S ANY Origin Hunan, China HS Code 87051091 Production Capacity 100 Units Per MonthProduct Description
STC300S hydraulic 30ton truck crane with pilot controlExcellent and stable chassis performance/chassis system
STC300S tonnage crane utilizes a double-axle drive that provides good trafficability and comfort under complex road condition with reliable performance. The engine has a multimode power output function which reduces power consumption. The use of tipping over early-warning technology helps keep you safe on the job.
Ultra long and super strong boom system
The basic boom length is 10.6m. The max. lifting height is 48m including jib. The rated lifting capacity is 30T, ensuring super strong lifting capacity. Jib mounting angles are 0°, 15°, and 30° which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Highly efficient, stable, energy-saving and adjustable hydraulic system
Load feedback of hydraulic system and constant power control provide powerful lifting capacity and excellent micro-mobility. Unique steering buffer guarantees smooth braking.
Safe, stable, advanced, and intelligent electric control system
The application of CAN-bus fully digital network control technology ensures stable control signal, simple harness, and high reliability. It can provide feedback on data and monitor the working condition of whole crane in real-time. The load moment limiter is configured with comprehensive intelligent protection system that achieves precision within 3%. By using a comprehensive logic and interlock control system, the STC300S ensures safe and reliable operation.
