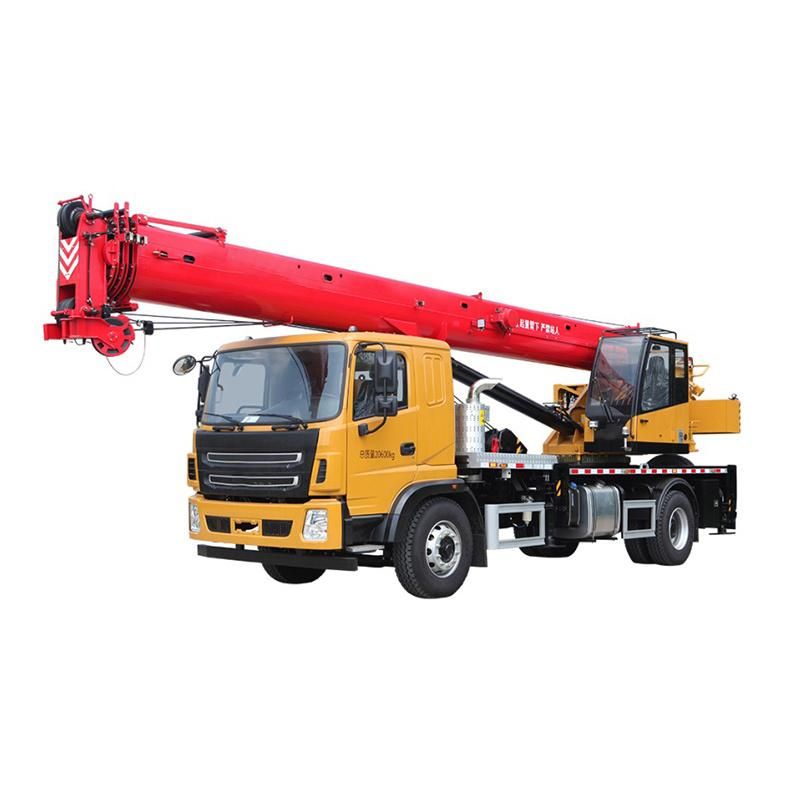

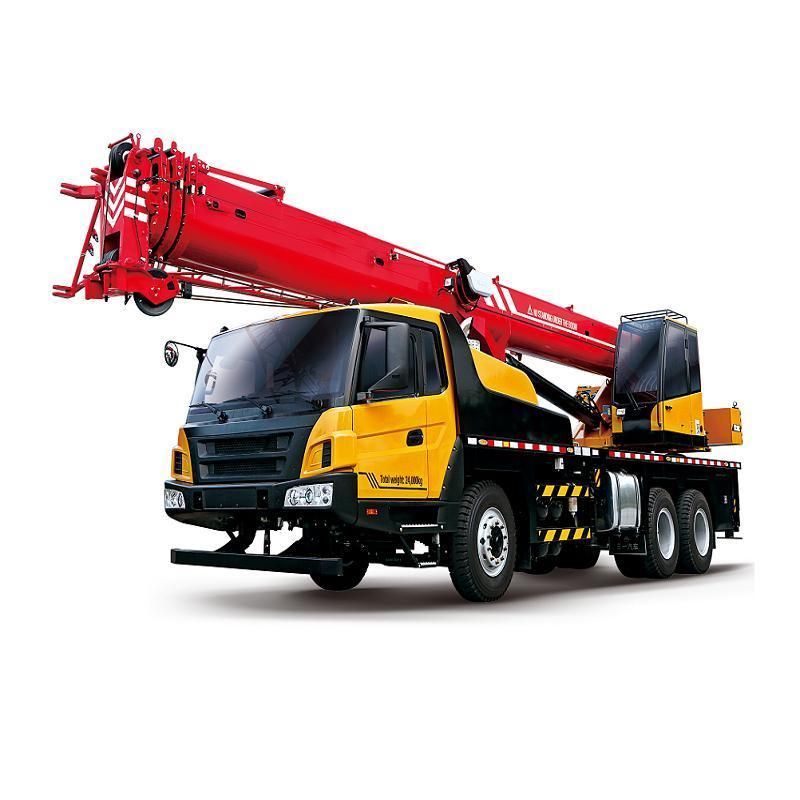

16ton Truck Crane Mobile Crane Stc160c
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：GS, RoHS, ISO9001
- Condition：New
- Operation Form：Cabin
- Maximum Lifting Height：25-30m
Base Info
- Model NO.：STC160C
- Maximum Lifting Weight：<20t
- Main Girder Form：Single Girder
- Type：Ordinary
- Model：Stc160c
- Power Source：Diesel
- Usage：Construction
- Engine Shangchai Sc8d143G2b1：Engine Shangchai Sc8d143G2b1
- Transport Package：Nude Packing
- Specification：CE
- Trademark：EON
- Origin：Hunan
- HS Code：8701200000
- Production Capacity：200set,Months
Description
Basic Info.
Model NO. STC160C Maximum Lifting Weight <20t Main Girder Form Single Girder Type Ordinary Model Stc160c Power Source Diesel Usage Construction Engine Shangchai Sc8d143G2b1 Engine Shangchai Sc8d143G2b1 Transport Package Nude Packing Specification CE Trademark EON Origin Hunan HS Code 8701200000 Production Capacity 200set/MonthsProduct Description
Main parameters:
Benefits & Features
Powerful load capacity
With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.
Strong travelling capacity
High power engine + Fast 8-gear gearbox, it is more powerful and more mobility.
Innovative layout
Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.
Diversified matching options
Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;
Regional matching: Engine emissions complies with Euro , Euro , Euro standards;
Tire: radial tire, bias tire.
| Dimension | Unit | STC160 |
| Overall length | mm | 12000 |
| Overall width | mm | 2500 |
| Overall height | mm | 3640 |
| Power | ||
| Engine | Shangchai | |
| Engine rated power | kW/(r/min) | 180/2300 |
| Engine rated torque | N.m/(r/min) | 960/1400 |
| Travel | ||
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 10.5 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 28 |
| Main performance | ||
| Max. rated total lifting capacity | t | 16 |
| Base boom | m | 10.5 |
| Fully extended boom | m | 32 |
| Fully extended boom+ jib | m | 40 |
| Working speed | ||
| Boom luffing time | s | 50 |
| Boom full extension time | s | 65 |
| Max. swing speed | r/min | 2.1 |
| Max. speed of main winch (single rope) (no load) | m/min | 105 |
| Max. speed of aux. winch (single rope) (no load) | m/min | 105 |
