• Model NO.：QY25K-II
• Type：Straight Arm
• Dimension：12650*2500*3380mm
• Total Weight in Travel：29400kg
• Engine Model：Shangchai Sc8dk280q3
• Rated Power：206,2200kw,(R,Min)
• Max. Travel Speed：75km,H
• Min. Turning Diameter：21.5m
• Max. Rated Total Lifting Capacity：25t
• Max. Lifting Torque：1010kn.M
• Boom Luffing Time：75s
• Boom Full Extension Time：100s

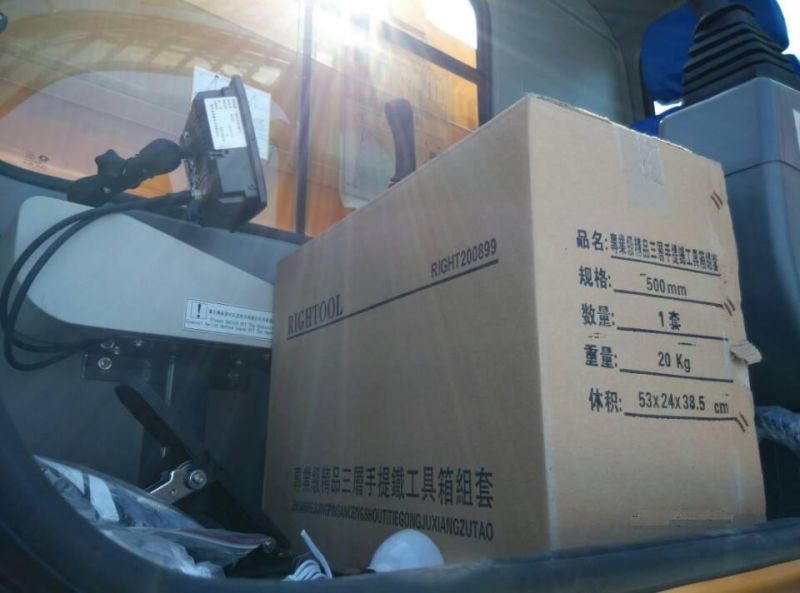

• Transport Package：Nude, Spare Parts and Tools Into Standard Cases
• Specification：ISO
• Trademark：New
• Origin：Jiangsu, China
• HS Code：87051091
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. QY25K-II Type Straight Arm Dimension 12650*2500*3380mm Total Weight in Travel 29400kg Engine Model Shangchai Sc8dk280q3 Rated Power 206/2200kw/(R/Min) Max. Travel Speed 75km/H Min. Turning Diameter 21.5m Max. Rated Total Lifting Capacity 25t Max. Lifting Torque 1010kn.M Boom Luffing Time 75s Boom Full Extension Time 100s Transport Package Nude, Spare Parts and Tools Into Standard Cases Specification ISO Trademark New Origin Jiangsu, China HS Code 87051091 Production Capacity 3000PCS/Month

Product Description

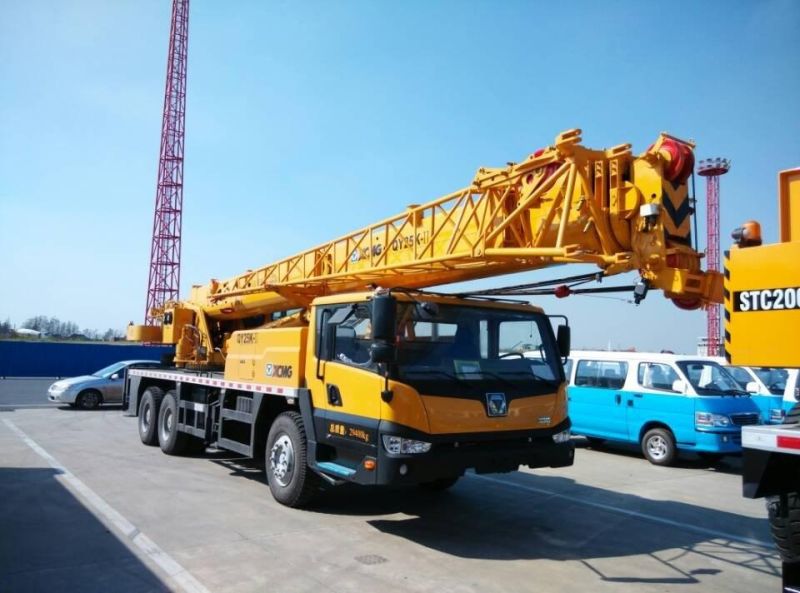

New 25 Ton mobile crane telescopic Boom truck Crane (QY25K-II)


We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The new products will have strong functions and be more adaptive to the customers. QY25K truck crane was developed by our company in 2000. Through constant upgrade, the travel and working performance are greatly improved. The chassis is three-axle which has strong power and cross-country capacity. The jib is optimized octagon section, which has excellent lifting capacity. The control system adopts hydraulic proportional (mechanical) control technique.

Dimension	Unit	QY25K-II
Overall length	mm	12650
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200   213/2200
Engine rated torque	N.m/(r/min)	1112/1400  1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	21.5
Min. ground clearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1010
Base boom	m	10.7
Fully extended boom	m	34.19
Fully extended boom+jib	m	42.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	≥2.5
Max. speed of main winch (single rope)	m/min	≥120
Max. speed of aux. winch (single rope)	m/min	≥120
