• Model NO.：FTC85X6
• Type：Straight Arm
• Base Boom：12.2m
• Max. Load Moment of Basic Boom：2009kn.M
• Max. Lifting Height of Main Boom：63m
• Fuel Consumption for 100km：37L
• Boom Elevating Time：40s
• Rear Axle：24600kg
• Boom Demrricking up Time：60s
• Max.Total Lifting Capacity：85t
• Transport Package：Nude
• Specification：130cbm
• Trademark：CHINA
• Origin：Hunan
• HS Code：87051091
• Production Capacity：200units

ItemUnitValueWorking performanceMax. rated lifting capacitykg85000Max. load moment of basic boomkN.m2575Max. load moment of main boom(fully extended)kN.m1240Max. load moment of basic boomm12.2Max. lifting height of main boomm44.2Max. lifting height of jibm63Working speeds             Max. hoist rope speed(Main winch)m/min≥135Max. hoist rope speed(Auxiliary winch)m/min≥110Boom demrricking up times57Boom demrricking up times107Slewing  speedr/min1.8DrivingMax. driving  speedkm/h75Max. gradeability%37Turning diameterm24Min.  ground clearancemm280Oil consumption per hundred kilometersL46MassDeadweight in driving conditionkg45000Complete vehicle kerb masskg44870Front axle loadkg19000Rear axle loadkg26000DimensionOverall dimensions(L×W×H)mm14100×2750×3750Longitudinal distance between outriggersm6.00Transversal distance between outriggersmFor completely extended outriggers: 7.60 m;
   For intermediately extended outriggers: 5.04 mTail slewing radiusmm4020Main boom lengthm11.6 - 44.0Main boom angle°-2 - 80jib lengthm9.5,16.0Offset°0,30

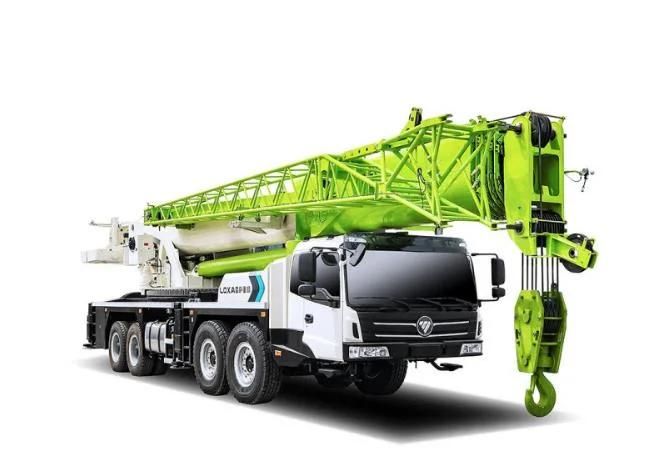

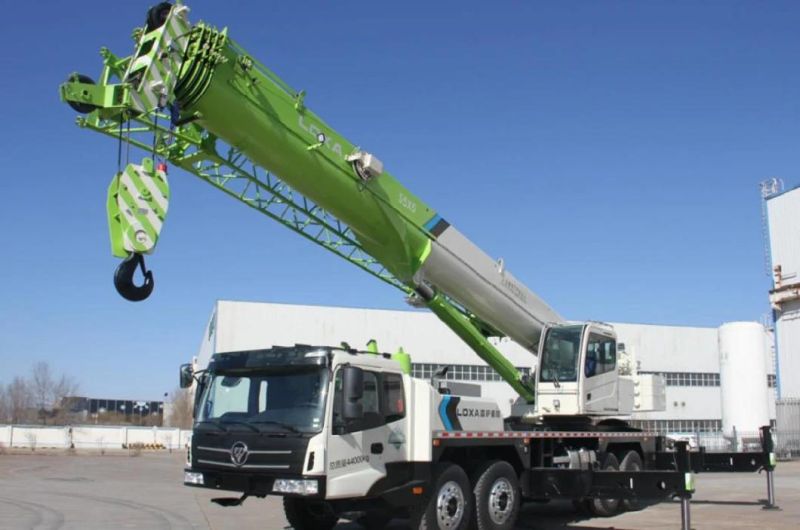

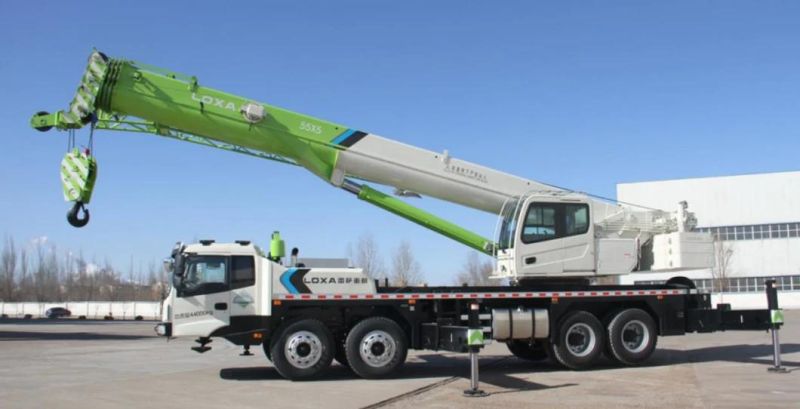

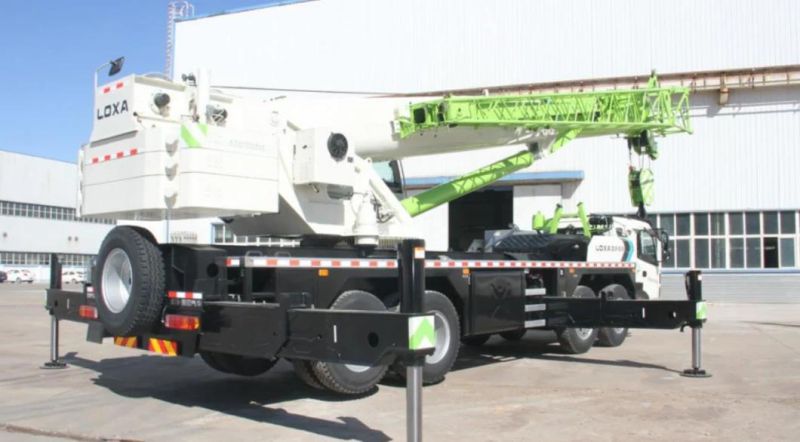

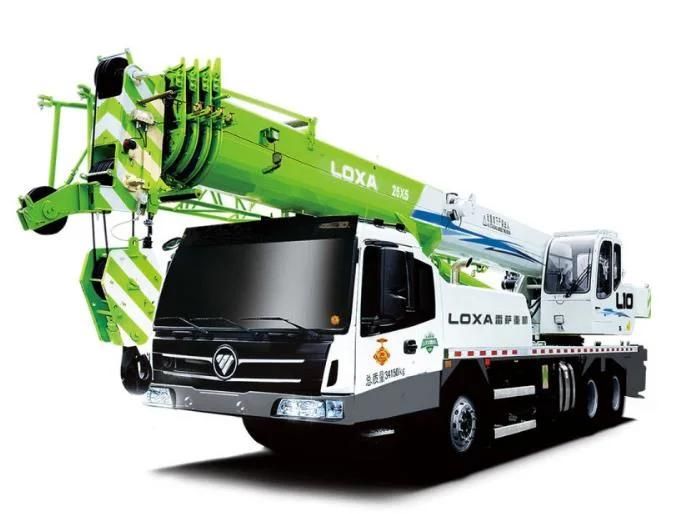

Photos:

1.. Which countries do we export to?
Asia: Philippine,Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: Sudan, Ethiopia, Libya, Ghana,Algeria,Nigeria,Guinea,Mozambique ,Kenya,etc

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,
like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Other questions, please contact me directly!!
