• Model NO.：FTC25X5
• Type：Straight Arm
• Base Boom：10.5m
• Full- Extended Boom：33.3m
• Slew Radius：3385mm
• Fuel Consumption for 100km：37L
• Outrigger Longitudinal Distance Span：5.91m
• Boom Elevating Time：40s
• Rear Axle：23200kg
• Max. Slewing Speed：2r,Min
• Max.Total Lifting Capacity：25t
• Power：247kw,2200
• Transport Package：Nude
• Specification：130cbm
• Trademark：CHINA
• Origin：Shanghai
• HS Code：87051091
• Production Capacity：200units

Capacity

Max. lifting capacity

25t

Dimensions

Overall length

12750mm

Overall width

2500mm

Overall height

3550mm

Axles

3

Axle distance-1,2

4325mm

Axle distance-2,3

1350mm

Weight

Overall weight

30000kg

Front axle load

6500kg

Rear axle load

23500kg

Engine

Model

WEICHAI

Rated power

213kw/2100r/min

Rated torque

1050N·m/1200~1400r/min

Emission standard

Euro 3

Traveling

Max. traveling speed

80km/h

Min.turning radius

10m

Min.turning radius of boom head

12 m

Drive train

6×4

Min. ground clearance

220mm

Approach angle

17 °

Departure angle

12 °

Max. gradeability

38%

Fuel consumption per 100km

≤ 37L

Main Performance

Temperature range

- 30 ºC~ + 60 ºC

Min.lifting radius

3m

Tail swing radius of superstructure

3.37m

Boom section

4

Boom shape

U-shaped

Max. lifting moment-Base boom

962kN·m

Max. lifting moment-Full-extend boom

544kN·m

Max. lifting moment-Full-extend boom+jib

341kN·m

Length-Base boom

10.65m

Length-Full-extend boom

33.5m

Length-Full-extend boom+jib

41.5m

Outrigger span(Longitudinal/Transversal)

5.3m × 6.2m

Jib offset

0 ° 15 ° 30 °

Working Speed

Max. single rope lifting speed of main winch(no load)

120m/min

Max. single rope lifting speed of auxiliary winch(no load)

120m/min

Full extend/retract time of boom

70 / 50s

Full raise/lower time of boom

70 / 55s

Swing speed

0~2 r/min

Aircondition

HVAC in up cab

Cooling and Heating

HVAC in low cab

Cooling and Heating

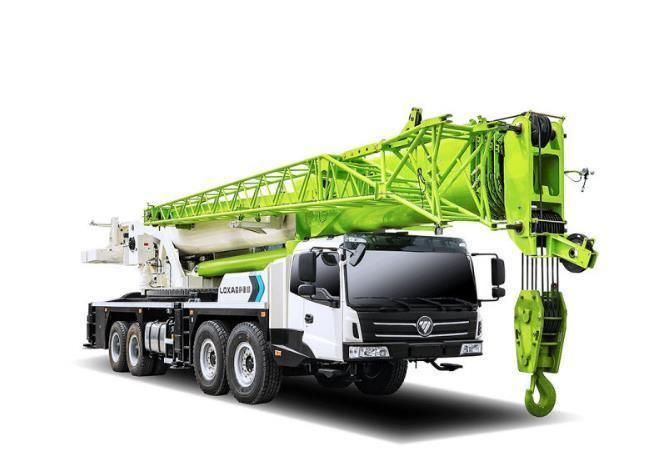

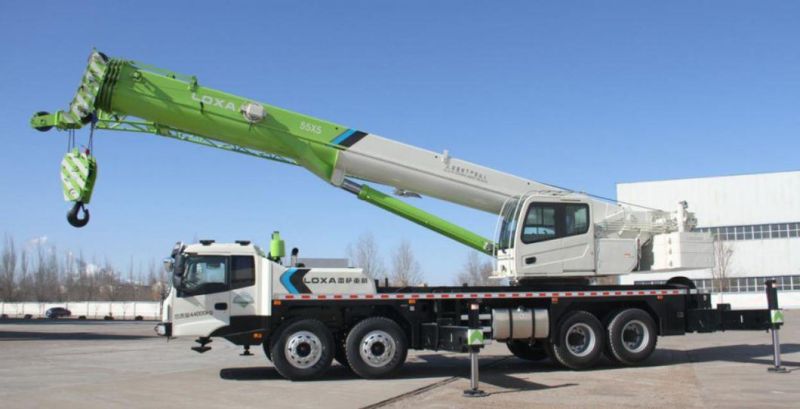

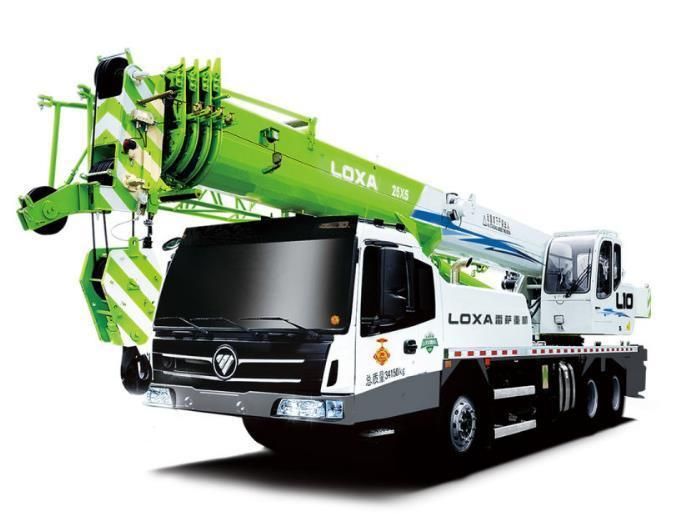

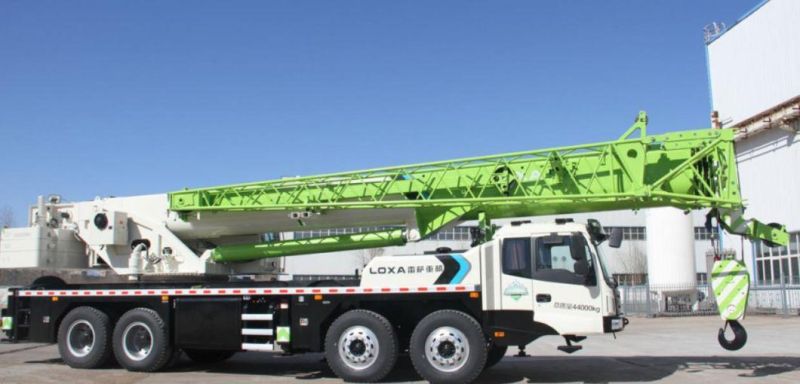

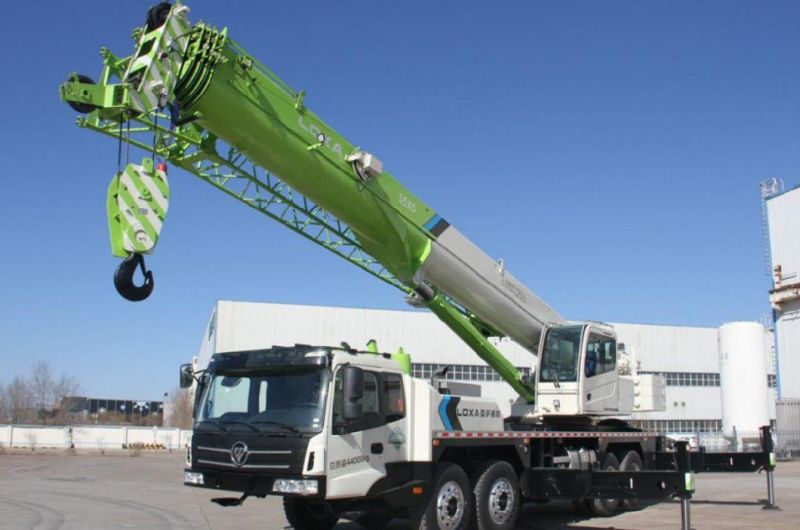

Photos:
