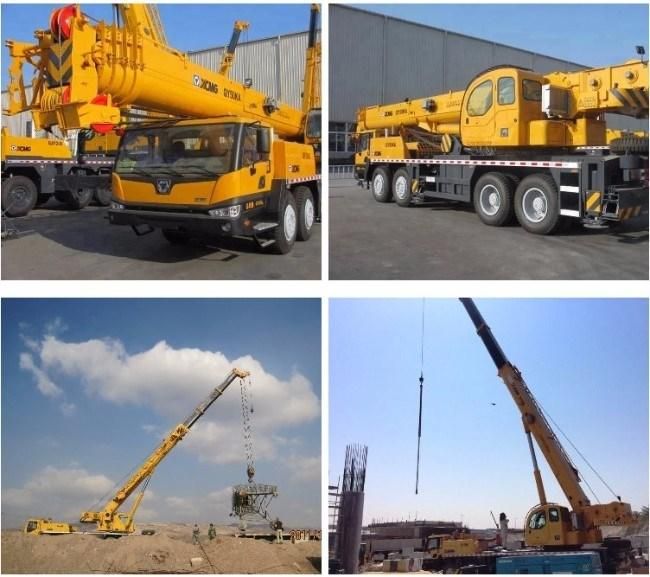

Popular Sales 70t Mobile Crane for South America Market
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Maximum Lifting Height：>40m
Base Info
- Model NO.：Qy70K
- Maximum Lifting Weight：70000kgs
- Shaft Number：4
- Crane Jib：Five-Arm
- Type：Folding
- Max Lifting Capacity：70ton
- Rated Power：276kw
- Total Weight：43000 Kg
- Length：1393mm
- Width：2800mm
- Height：3575mm
- Speed：80km,H
- Cabin：Full Cabin
- A/C：Yes
- Emission：Euro III
- Warranty：1 Year
- Aftersales Service：Oversea Service, Free Spare Parts, etc
- Control System：Pilot Control
- Certificate：ISO CCC
- Transport Package：Roro Ship , Bulk Ship
- Specification：Mobile crane
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：10000units,Year
Description
ItemQY70K-I parameter Unit Dimensions Total length 13930 mm Total width 2800 mm Total height 3575 mm Weight operation in travel state 43000(not included 1t auxiliary counterweight) Kg Front axle load 17000 Kg Rear axle load 26000 Kg Power Engine model Euro III hangfa WD615.338 Engine rated output 276/2200 Kw(r/min) Engine rated torque 1500/1400 N.m(r/min) Travel Max.travel speed 80 Km/h Max. turning diameter 24 mm Max. ground clearance 327 mm Approach angle 19/18 . Departure angle 11 . Max. grade ability 40 % Fuel consumption of 100km 45 L Lifting performance Max. total rated lifting load 50 t Min. rated working radius 3000 m Turning radius at swing table tail 3.55 mm Max. load moment 2303 Base boom 11.6 Kn.m Fully-extended main boom 44.5 m Fully-extended main boom+ luffing jib 59.5 m Outrigger longitudinal span 6.1 m Outrigger lateral span 7.3 m Working speed Boom luffing time 60 s Boom full elevating time ≤150 s Max. slewing speed ≥2.0 r/min Main hoist max. speed(single rope) ≥130 m/min Auxiliary hoist max. speed(single rope ) ≥180 m/min
