High Performance 40t Mobile Truck Crane Qy40K in Promotion

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Condition：New
  • Maximum Lifting Height：>40m

Base Info

  • Model NO.：Qy40K
  • Maximum Lifting Weight：40000kgs
  • Shaft Number：3
  • Crane Jib：Four-Arm
  • Type：Folding
  • Max Lifting Capacity：40ton
  • Rated Power：251kw
  • Total Weight：36930 Kg
  • Length：13745mm
  • Width：2800mm
  • Height：3560mm
  • Speed：75km,H
  • Cabin：Full Cabin
  • A/C：Yes
  • Emission：Euro III
  • Warranty：1 Year
  • Aftersales Service：Oversea Service, Free Spare Parts, etc
  • Control System：Pilot Control
  • Transport Package：Roro Ship , Bulk Ship
  • Specification：40000kg
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：10000units,Year

Description

Item  UnitDimensionsOverall length13745mmOverall width2800mmOverall height3560mmWeightDead weight in travel state40000KgFront axle load  12330KgRear axle load24600KgPowerEngine modelSC9DK32Q3 Engine rated output251/2200Kw(r/min)Engine rated torque1250/1400N.m(r/min)TravelMax.travel diameter75Km/hMax. turning diameter19.5mMax. ground clearance260mmApproach angle17.Departure angle15.7.Max. grade ability40%Fuel consumption of 100km30LLifting  performanceMax. total rated lifting load35tMin. rated working radius3000mTurning radius at swing table tail3.055mmBase boom max. load moment1200Kn.mBase boom10.5mFull-extend boom39.6mBoom+ Jib54.6mOutrigger longitudinal distance span5.35mOutrigger lateral distance span6m
 Working speedBoom  elevating  time68sBoom  elevating  time≤155sMax. slewing speed≥2.5r/minMain hoist max. speed(single line)≥130m/min Auxiliary hoist max. speed(single rope)≥130m/min

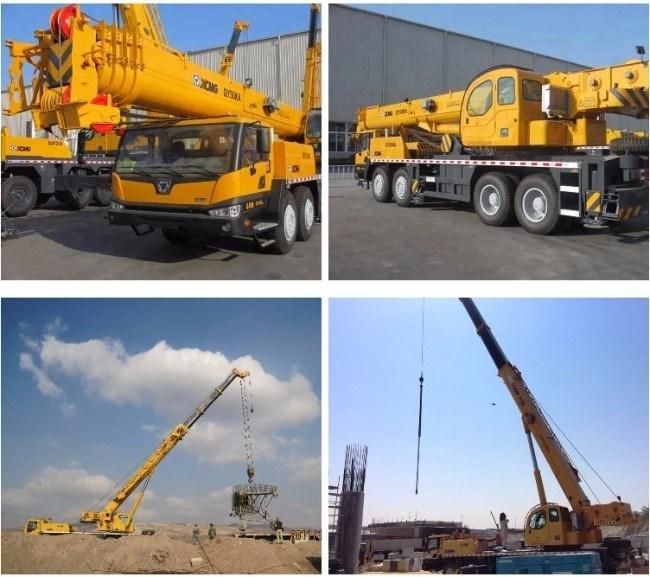

High Performance 40t Mobile Truck Crane Qy40K in Promotion
