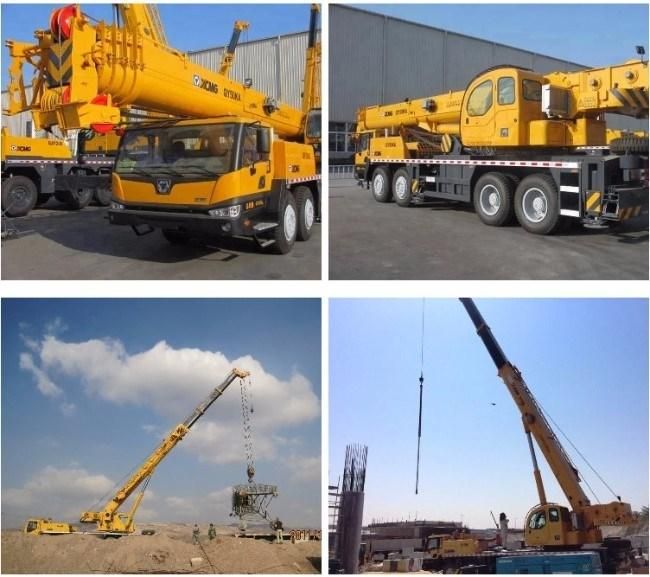

• Model NO.：Qy40K
• Maximum Lifting Weight：40000kgs
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Max Lifting Capacity：40ton
• Rated Power：251kw
• Total Weight：36930 Kg
• Length：13745mm
• Width：2800mm
• Height：3560mm
• Speed：75km,H
• Cabin：Full Cabin
• A/C：Yes
• Emission：Euro III
• Warranty：1 Year
• Aftersales Service：Oversea Service, Free Spare Parts, etc
• Control System：Pilot Control
• Transport Package：Roro Ship , Bulk Ship
• Specification：40000kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000units,Year

Item  UnitDimensionsOverall length13745mmOverall width2800mmOverall height3560mmWeightDead weight in travel state40000KgFront axle load  12330KgRear axle load24600KgPowerEngine modelSC9DK32Q3 Engine rated output251/2200Kw(r/min)Engine rated torque1250/1400N.m(r/min)TravelMax.travel diameter75Km/hMax. turning diameter19.5mMax. ground clearance260mmApproach angle17.Departure angle15.7.Max. grade ability40%Fuel consumption of 100km30LLifting  performanceMax. total rated lifting load35tMin. rated working radius3000mTurning radius at swing table tail3.055mmBase boom max. load moment1200Kn.mBase boom10.5mFull-extend boom39.6mBoom+ Jib54.6mOutrigger longitudinal distance span5.35mOutrigger lateral distance span6m
 Working speedBoom  elevating  time68sBoom  elevating  time≤155sMax. slewing speed≥2.5r/minMain hoist max. speed(single line)≥130m/min Auxiliary hoist max. speed(single rope)≥130m/min
