• Model NO.：QY70K-I
• Type：Folding
• Engine Model：Wd615.338(Domestic III)
• Max. Lifting Height：70m
• Rated Loading Capacity：70 Ton
• Rated Lifting Moment：1500,1400 N.M,(R,Min), 1000kn.M
• Span：Longitudinal5.14m,Lateral6.0m
• Moving Type：Wheel
• Hydraulic Valve Brand：Imported Brand
• Hydraulic Cylinder Brand：Imported Brand
• Hydraulic Pump Brand：Imported Brand
• Transport Package：Nude Packing
• Specification：29400kg
• Trademark：Maxizm
• Origin：China
• HS Code：8705109200
• Production Capacity：500

Basic Info.

Model NO. QY70K-I Type Folding Engine Model Wd615.338(Domestic III) Max. Lifting Height 70m Rated Loading Capacity 70 Ton Rated Lifting Moment 1500/1400 N.M/(R/Min), 1000kn.M Span Longitudinal5.14m/Lateral6.0m Moving Type Wheel Hydraulic Valve Brand Imported Brand Hydraulic Cylinder Brand Imported Brand Hydraulic Pump Brand Imported Brand Transport Package Nude Packing Specification 29400kg Trademark Maxizm Origin China HS Code 8705109200 Production Capacity 500

Product Description

70 Ton QY70K-I Truck Cranes Mini Pickup Cranes

Product Description

 The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing
systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of
the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.

.

Specification


Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108

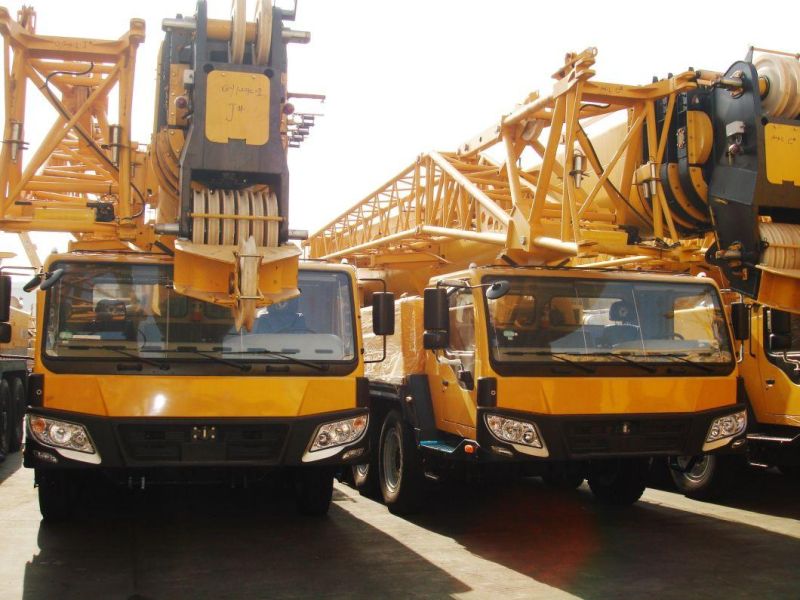

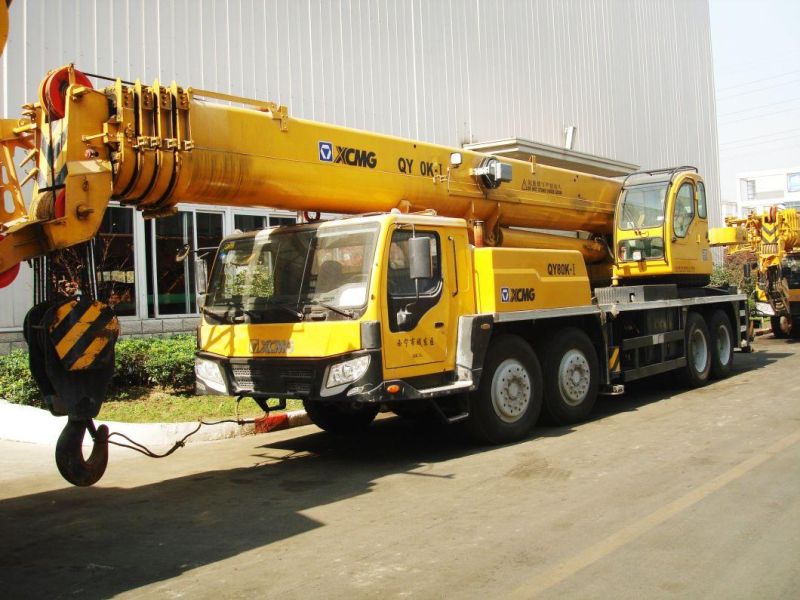

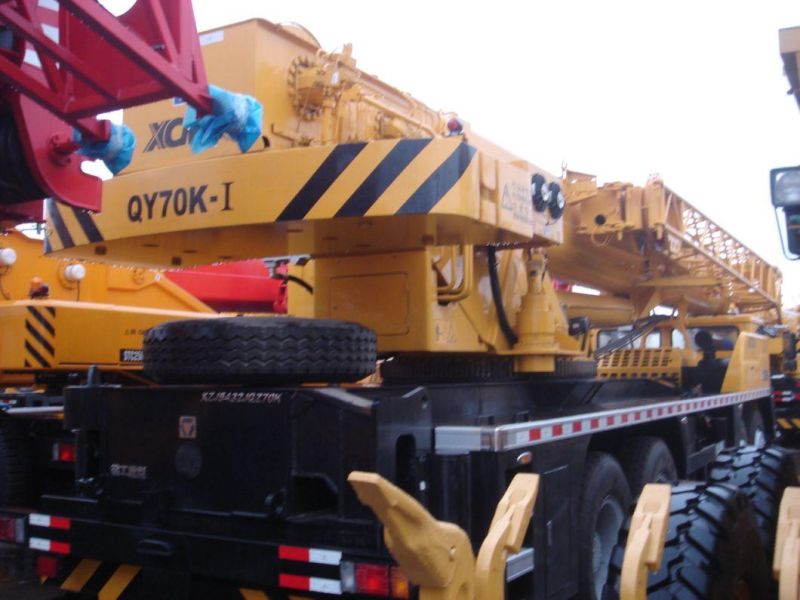

Product Photos
