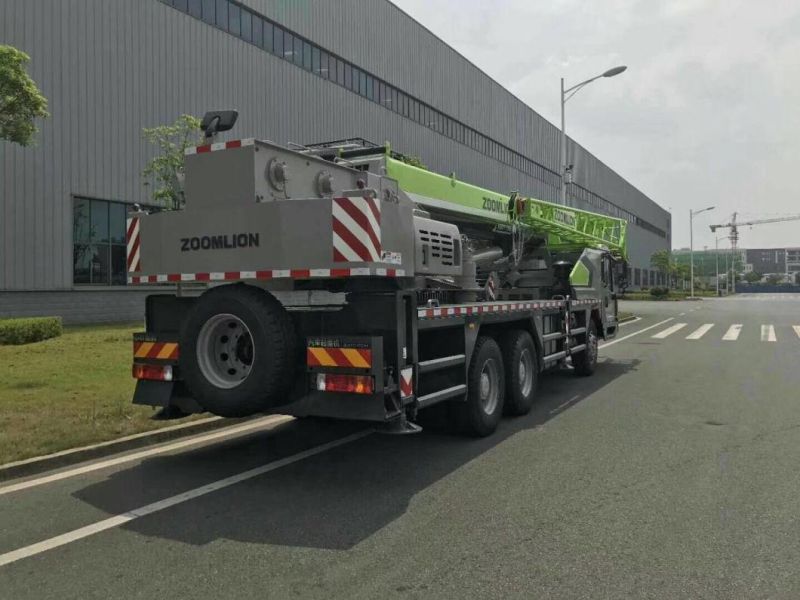

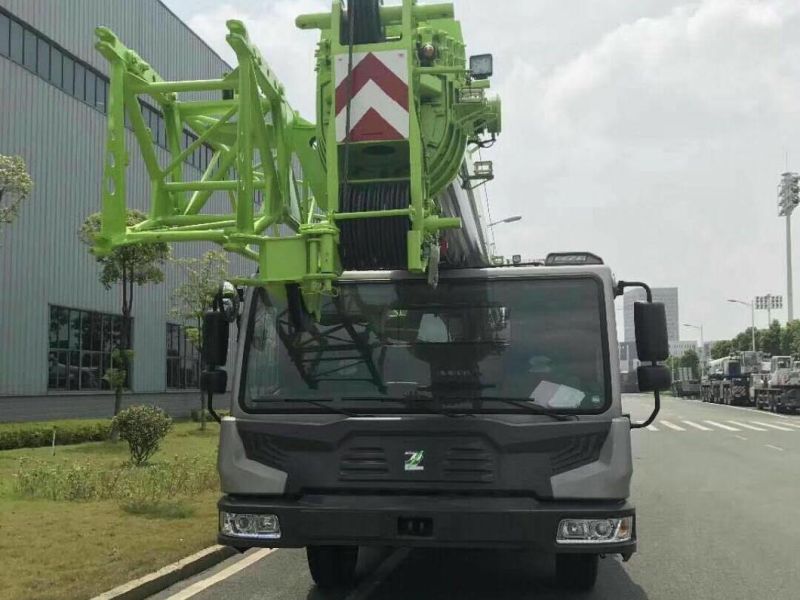

70ton Truck Crane Ztc700V in Stock Zoomlion Brand
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：55ton
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：ZTC700V
- Type：Straight Arm
- Product Name：Mobile Crane
- Engine Brand：Imported, Weichai
- Color：Green
- Engine：Weicai Wp6.220e50
- Crane Type：Truck Crane Mobile Crane Hydraulic Crane
- Transport Package：40fr
- Specification：14100× 2750× 3750MM
- Trademark：zoomlion
- Origin：China
- HS Code：8705109100
- Production Capacity：1000pes,Year
Description
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting weight × working radius
kg.m
70000×3.0
2
Max. lifting torque of basic boom
kN.m
2352
3
Max.lifting torque of longest main boom
kN.m
1098
4
Max. lifting height of longest main boom
m
44.2
5
Max. lifting height of jib
m
60.2
Dimensions
6
Outline dimensions (L×W×H)
mm
14100×2750×3750
7
Distance between outriggers (longitudinal × transversal)
mm
6000×7600
8
Main boom length (completely retracted - completely extended)
m
11.6~44
9
Jib length
m
9.5,16
10
Main boom angle of elevation
°
-2~80
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
135
13
Boom extension time
s
107
14
Boom derricking up time
s
57
15
Swing speed
r/min
0~1.8
Traveling
19
Max. traveling speed
km/h
75
20
Max. gradeability
%
37
