• Model NO.：XCT8L4
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Engine Rated Output：206,213kw
• Rated Loading Capacity：25000kg
• Max. Lifting Load：25t
• Max. Travel Speed：80km,H
• Total Weight in Travel：31750kg
• Tower Crane Type：Under Slewing Cranes
• Base Boom：10.4m
• Application：Construction Usage
• Engine Model：ISO9001
• Cabin：Cab-Over-Engine with Sleeping Berth
• Gearbox：6 Gear Synchronizer Gearbox
• Machine：Lifting Equipment 8 Tons
• Delivery Time：30days After Deposit Payment
• Wheel Base：Dongfeng:1810,1800FAW:1800,1740
• Colour：Yellow
• Transport Package：Nude
• Specification：12300mm*2500*3350mm
• Trademark：,
• Origin：China
• HS Code：8705109100
• Production Capacity：500pices,Year

   The industry pioneered the development of a dedicated universal chassis to match the new energy-saving engine.

    The 6 gear synchronizer gearbox and the single stage deceleration bridge are the perfect combination of the best power and the best economy.

    Maximum climbing capacity 35%, maximum speed 90km/h - the highest in the industry.
     4 section 25.5 meter arm - the longest in the industry.

    H type outrigger lifting capacity, scope of operation, the industry is fully ahead.

    The new energy saving hydraulic system increases the function of rotary buffering and free sliding.

    Ultra high power hydraulic oil radiator, continuous operation in high temperature environment
     Electrical system reliability upgrade, easy maintenance, long life.

    Automatic planning of intelligent working conditions.

    A comfortable and cab-over-engine cab.
WeightTotal weight in travel(kg)12300(Dongfeng)/12100(FAW)Axle load(kg)Dongfeng:4150/8150 FAW:4000/8100PowerEngine model-Dongfeng:YC4E140-42  FAW:BF4M2012-14E4Engine rated power(kw/(r/min))Dongfeng:103/2600  FAW:106/2500Engine rated torque(N.m/(r/min))Dongfeng:430/(1300~1600)  FAW:500/1500TravelMax. travel speed(km/h)90Min. turning diameter(m)16Max. grade ability(%)35Min. ground clearance(mm)260Approach angle(°)18Departure angle(°)13Fuel consumption for 100km(L)18Lifting  performanceMax. rated total lifting capacity(t)8Min. rated working radius(m)3Max. lifting torque(kN·m)302Turning radius at turntable tail(mm)2327

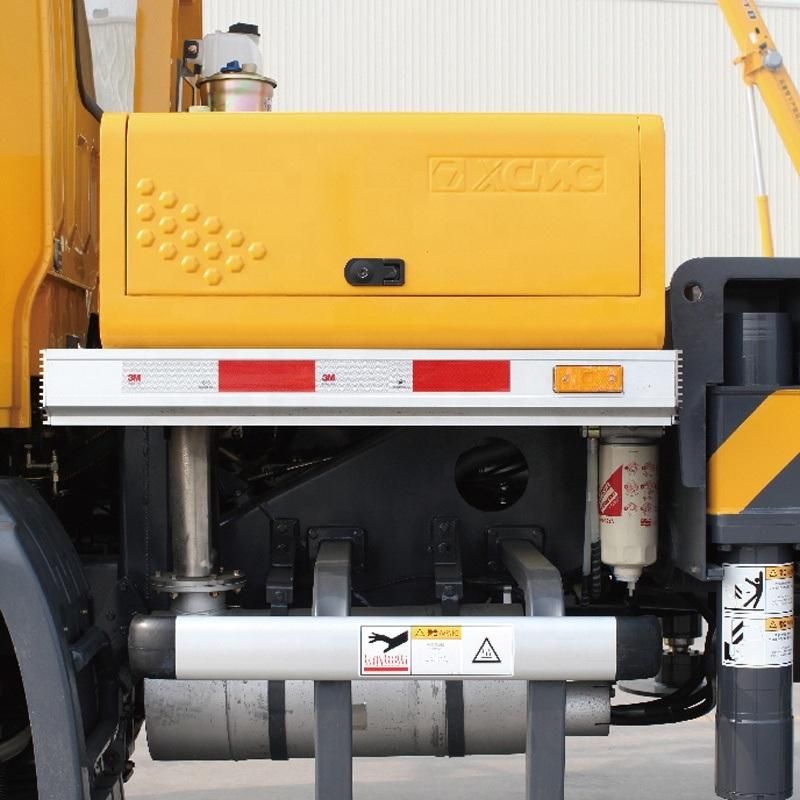

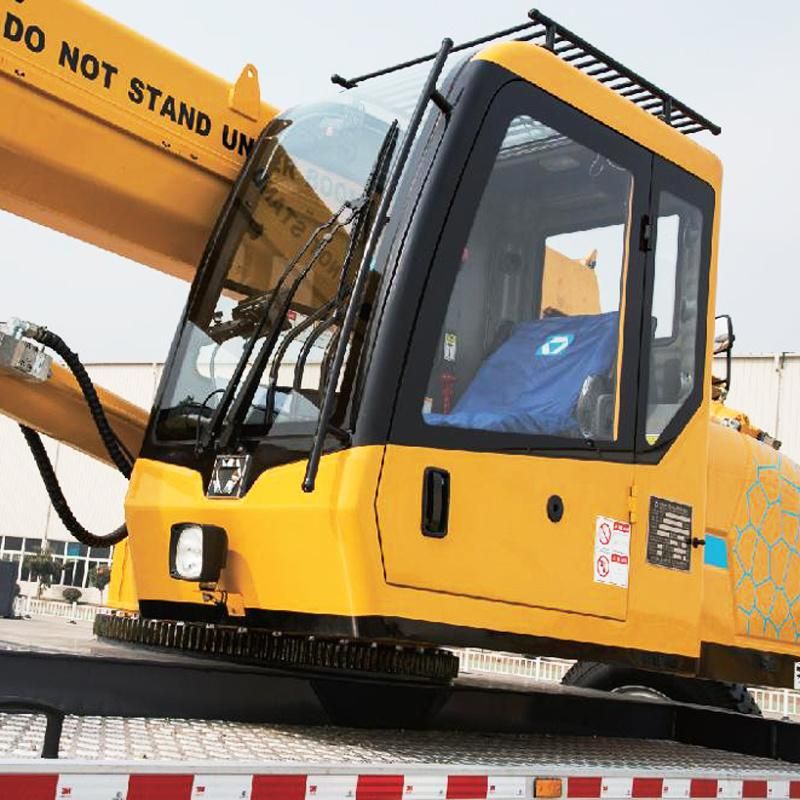

Detail Pictures
