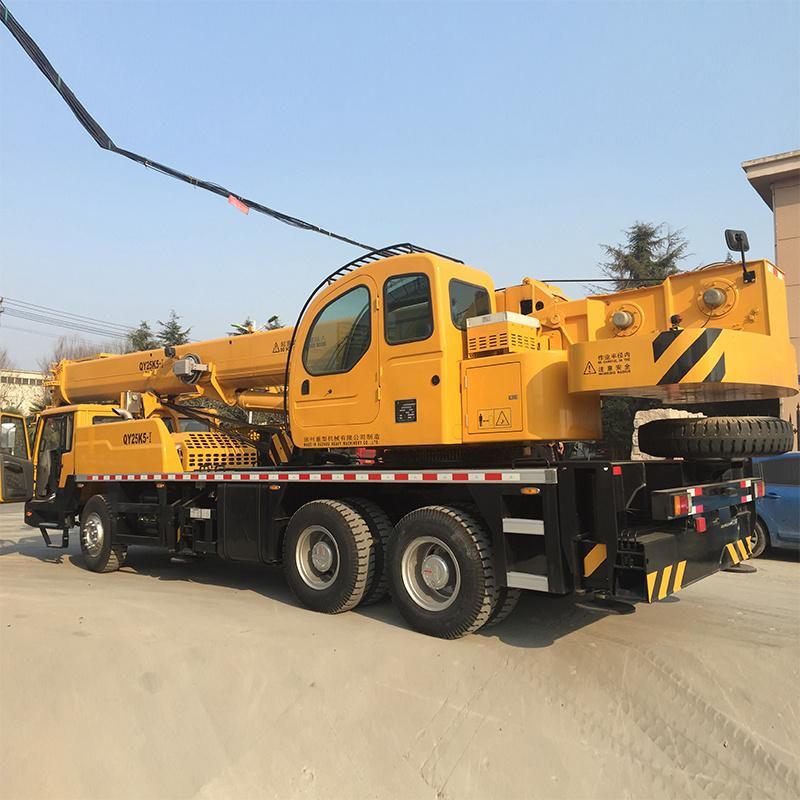

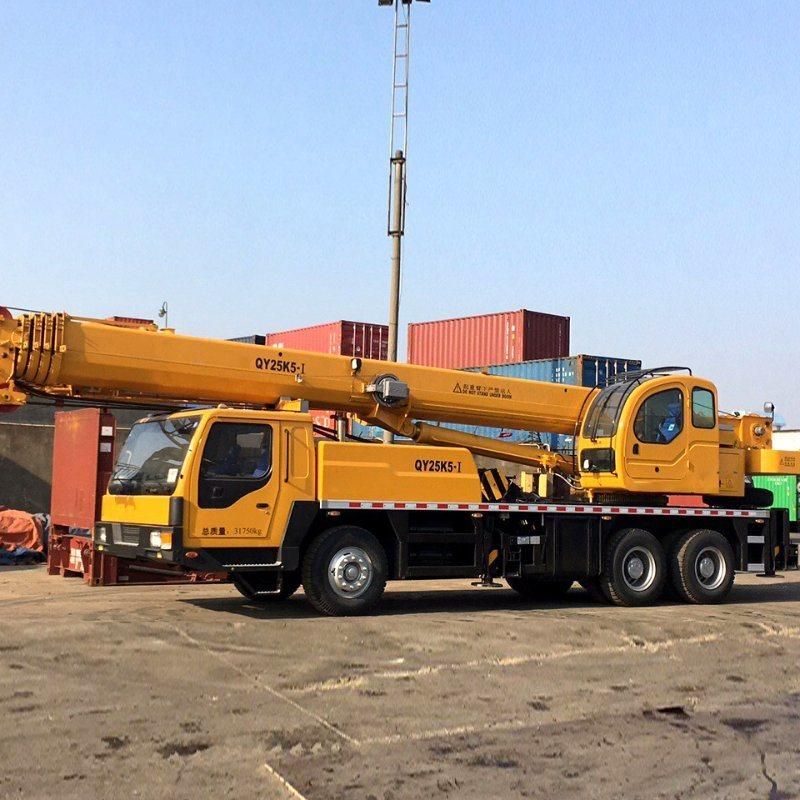

China 25ton Truck Crane Qy25K5d Qy25K5l Mobile Crane for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：One Year
- Warranty：One Year
- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K5D
- Shaft Number：4
- Crane Jib：Five-Arm
- Type：Small Crane
- Size：13750*2800*3520mm
- Engine Model：Wd615.334(Domestic III)
- Rated Power：247kw
- Weight in Travel：29050kg
- Engine Rated Torque：1350,1400n.M,(R,Min)
- Fully Extended Boom+ Jib：57.7m
- Max.Lifting：50t
- Boom Type：U Style
- Boom Luffing Time：88s
- Color：Yellow
- Transport Package：Nude
- Specification：ISO, CCC, Gost
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- HS Code：87051092
- Production Capacity：3000PCS,Month
Description
Basic Info.
Model NO. QY25K5D Shaft Number 4 Crane Jib Five-Arm Type Small Crane Size 13750*2800*3520mm Engine Model Wd615.334(Domestic III) Rated Power 247kw Weight in Travel 29050kg Engine Rated Torque 1350/1400n.M/(R/Min) Fully Extended Boom+ Jib 57.7m Max.Lifting 50t Boom Type U Style Boom Luffing Time 88s Color Yellow Transport Package Nude Specification ISO, CCC, Gost Trademark ORIEMAC Origin Jiangsu, China HS Code 87051092 Production Capacity 3000PCS/MonthProduct Description
China 25ton truck crane qy25k5d qy25k5l mobile crane for saleThe innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.
| Parameter item | QY25K5D-1 |
| Basic arm length (mm) | 10800 |
| Extension (mm) | 1724 (Xugong Automobile)/ 1711 (Qixing, Hubei) |
| Chassis length (mm) | 10833/10846 |
| Outrigger span (mm) | Vertical 5500 Horizontal 6400 |
| Wheelbase (mm) | 4500/1350 |
| Wheelbase (mm) | 2059/1834 |
| Overall length (mm) | 13007 |
| Overall width (mm) | 2550 |
| Overall height (mm) | 3490 |
| Approach angle (°) | 11 |
| Departure angle (°) | 13.5 |
| Curb weight (kg) | 33270 |
| Self-disassembly and assembly balance weight (kg) | |
| Engine Model | 1.SC9DF300.1Q5 2.MC07H.32-50 |
| Engine rated power/speed (kw r/min) | 1.221/2200 2.235/2200 |
| Working range*Maximum rated lifting capacity (m*t) | 3*25 |
| Maximum lifting moment of basic boom (kN·m) | 1148 |
| Longest main boom (m) | 43 |
| Main boom raising time (s) | 52 |
| Main boom raising time (s) | ≤38 |
| Full extension time of main boom (s) | ≤100 |
| Main lifting speed (four layers without load) (m/min) | ≥135 |
| Maximum rotation speed (r/min) | ≥2.5 |
| Maximum driving speed (km/h) | ≥80 |
| Maximum climbing ability (%) | ≥40 |
